Table of Contents

ENERGY AND COMFORT
Ventilation Testing
V
C
®
ELOCI
ALC
Air Velocity Meter
Model 9515
Operation and Service Manual
1.800.561.8187
information@itm.com
www.
.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VELOCICALC 9515

Summary of Contents for VELOCICALC 9515

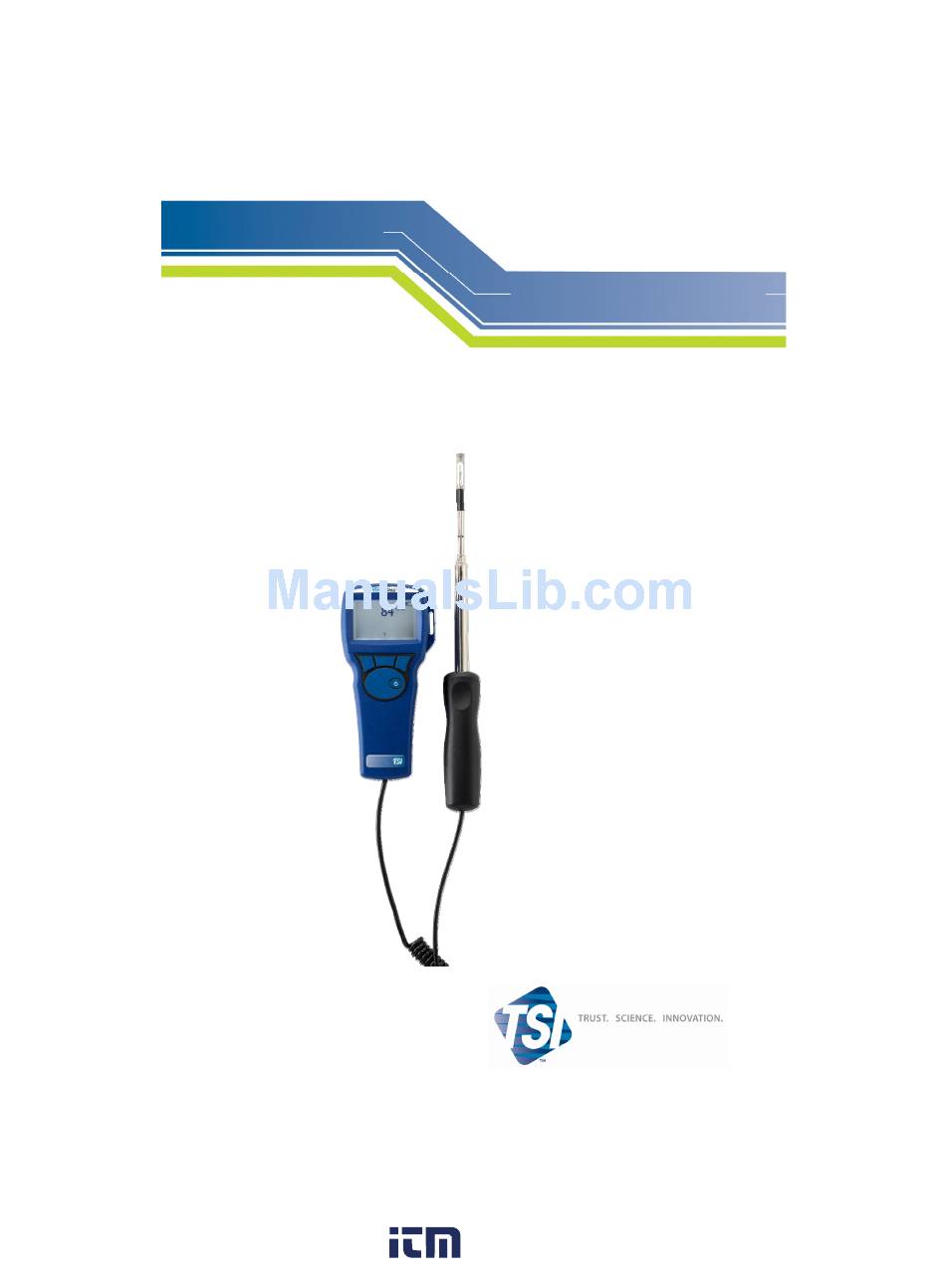

  • Page 1 ENERGY AND COMFORT Ventilation Testing ® ELOCI Air Velocity Meter Model 9515 Operation and Service Manual 1.800.561.8187 information@itm.com www. .com...
  • Page 2 CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Model 9515 V Air Velocity ELOCI Meter....................3 Installing the Batteries ...............3 Using The Telescoping Probe ............3 Extending The Probe..............3 Retracting The Probe ..............3 CHAPTER 3 OPERATION ..............

  • Page 3: Installing The Batteries

    Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Model 9515 is designed to operate with either alkaline or NiMH rechargeable batteries, although it will not recharge NiMH batteries. Battery life will be shorter if NiMH batteries are used.

  • Page 4: Operation

    Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Model 9515 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision, and Last Date Calibrated. ft/min / m/s Key Pressing this key changes the display to read air velocity.

  • Page 5: Troubleshooting

    Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 9515. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the V...

  • Page 6: Specifications

    Appendix A Specifications Specifications are subject to change without notice. Velocity: Range: 0 to 4000 ft/min (0 to 20 m/s) 1&2 Accuracy ±5% of reading or ±5 ft/min (±0.025 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Temperature: Range: 0 to 200°F (-18 to 93°C) Accuracy ±0.5°F (±0.3°C)
