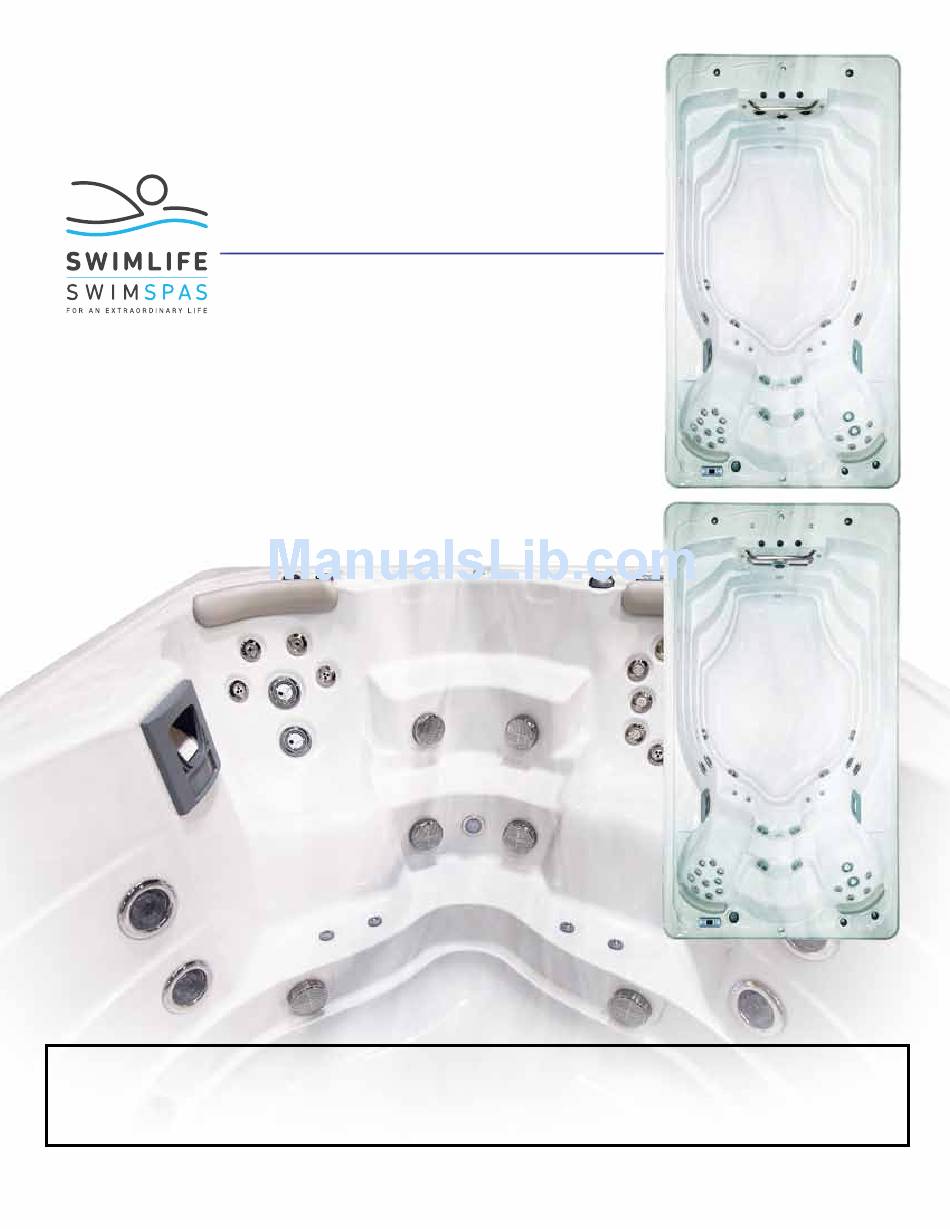

2018 MODEL
SWIMSTREAM
SwimFit / SwimExpert
SERIES
INSTALLATION
GUIDE
CAUTION: THIS GUIDE IS FOR REFERENCE ONLY! All installations must follow local electrical
and building codes. Please consult your local business and planning division for your codes in your area.
SWIMLIFE SWIMSPAS WILL NOT BE RESPONSIBLE FOR ANY ERRORS IN INSTALLATIONS OR CODE INFRACTIONS.
EFFECTIVE DATE: January 1, 2018 (supersedes all others)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SwimLife SwimFit Dual Stream
Summary of Contents for SwimLife SwimFit Dual Stream
- Page 1 CAUTION: THIS GUIDE IS FOR REFERENCE ONLY! All installations must follow local electrical and building codes. Please consult your local business and planning division for your codes in your area. SWIMLIFE SWIMSPAS WILL NOT BE RESPONSIBLE FOR ANY ERRORS IN INSTALLATIONS OR CODE INFRACTIONS. EFFECTIVE DATE: January 1, 2018 (supersedes all others)
-
Page 3: Table Of Contents
14ft. SwimFit / Expert Cross Section Side View of SWIMSTREAM 2018 14ft. SwimFit /SwimExpert Installation Manual Page 13-14 Swimspa Install Inground 5.7 Service Access Page 15 1. Types of installs Page 1 5.8 Water Test Page 15 Page 1 1.1 Free Standing with Cabinet above ground 5.9 Overall Support Page 15 Page 1... -
Page 4: Types Of Installs
1.1 Free Standing with cabinet above ground This installation refers to a Swimspa that is placed on a concrete pad, above ground and with a SwimLife Cabinet. Can be adjacent to a deck or butted up to a deck. 1.2 Free Standing in Deck 1.2 Free Standing in Deck... -
Page 5: Model, Specifications And Electrical
2. Model Series, Specification and Electrical 174” x 93” / 174” x 93” / 14ft. 14ft. 441.96 cm x 236.22 cm 441.96 cm x 236.22 cm 52.75” / 133.99 cm 52.75” / 133.99 cm SwimFit SwimExpert SWIMSTREAM SWIMSTREAM 1,900 US gallons / 1,900 US gallons / 7,220 Litres 7,220 Litres... -
Page 6: Electrical Specifications
2.2 Electrical Specifications SAFETY COMES FIRST. WHEN INSTALLING & USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED! 1. READ AND FOLLOW ALL INSTRUCTIONS 2. Electrical installation must be completed by a qualified electrician in accordance with all National, Regional and Local Codes and Regulations in effect at the time of installation. -
Page 7: North American Gfci Installation
Electrical Code, or the Canadian Electrical Code, and all Federal, State / Provincial and local codes and regulations in effect at the time of installation. SwimLife highly recommends the use of a new GFCI breaker for all of its products. Older GFCI’s may have tripping issues. -
Page 8: European Gfci Installations
2.5 European R.C.D. Installation Important Note: Installation of the R.C.D. - Circuit Breaker, including ampere sizing, GFCI Security Breaker and selection of conductor size and type, must be performed by a qualified electrician in accordance with National, Regional and Local Codes and Regulations in effect at the time of installation. -
Page 9: Delivery And Handling Considerations
Each Swimspa is shipped from the factory strapped onto a wood skid. If your Swimspa is to be delivered by your local SwimLife retailer, it will generally arrive on a flat bed truck or low profile trailer. Typically, the dealer will arrive with the necessary equipment to maneuver the Swimspa from the truck. -
Page 10: Above Grade
4 Base Of Support – Load Specifications 4.1 Preparation Installation of a level concrete pad is mandatory. Dig out and level the ground 20 - 30 cm (8 -12 in.) below your desired base level. Install 20 -25 cm (8-10 in.) of crushed stone. - Page 12 Width of 14ft. SwimFit / SwimExpert SWIMSTREAM Swimspa * SwimLife Swimspas., can not be held liable for the accuracy of this drawing, it is purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
-
Page 13: Below Grade Or Partial In Grade Installations
Cabinet with Solid State Frame 5.1 Backfilling Exclusion SwimLife Swispas will void any warranty of swim spas that are back-filled. 5.2 Excavation Call before you dig! Please make sure you have any permits in place that are required from your municipality. -
Page 14: Cross Section Top View Of 2018 14Ft. Swimfit /Swimexpert Swimspa Inground
Cross Section Top View of 2018 14ft.SwimFit / SwimExpert SWIMSTREAM Swimspa Inground... 93” (236.22cm) Width of 14ft. SwimFit / SwimExpert SWIMSTREAM Swimspa... -
Page 15: Cross Section End View Of 2018 14Ft. Swimfit
14ft. SwimFit / SwimExpert SWIMSTREAM Swimspa * SwimLife Swimspas., can not be held liable for the accuracy of this drawing, it is purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install. -
Page 16: Swimspa Install Inground
Cross Section Side View of 2018 14ft. SwimFit / Swim Expert SWIM STREAM Swimspa Install Inground... 174” / 441.96 cm Length of14ft. SwimFit / SwimExpert S Notes:... - Page 17 SWIMSTREAM Swimspa * SwimLife Swimspas., can not be held liable for the accuracy of this drawing, it is purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
-
Page 18: Service Access
5.9 Overall Support Your SwimLife Swimspa is equipped with a factory installed load support substructure, which distributes the weight of the water over the entire foot print area of the Swimspa. The supporting floor must be even and level. Although the lip... -
Page 20: Serviceability, Accessibility And Protection
6 Serviceability, Accessibility and Protection 6.1 Equipment Protection The equipment must be located in an area where it will remain dry and will not be exposed to rain, snow or ground water. When your Swimspa is to be installed above ground, the factory cabinet is designed for both protection, insulation and accessibility. -
Page 21: Filling And Draining
Geothermal Heating and Solar heating. Please consult your local retailer for more information on these alternative methods to heat your Swimspa. 8.3 Auxiliary Bypass Option Installing the SwimLife option Auxillary Bypass can help to facilitate any of the above installation options. -
Page 22: Other Indoor Considerations
9 Humidity-Ventilation Other Indoor Considerations 9.1 Humidity 9.2 Ventilation All Swimspas emit quantities of moisture into the surrounding air. In fact, evaporation will increase proportionally with the difference between the temperature of the surrounding air and of the water. To prevent this from happening, heat the air to more than 26° C / 79F if the Swimspa is located inside a dedicated room. -
Page 23: Hardcover Storage
10.1 Hard Cover 10 Hardcover Storage 10.1 Hardcover If your Swimspa comes with a Hardcover, make sure to prepare storage area for when the Swimspa is being used. The Swimspa cover comes standard in a number of sections that are velcroed together depending on the size. - Page 24 CAUTION: THIS GUIDE IS FOR REFERENCE ONLY! All installations must follow local electrical and building codes. Please consult your local business and planning division for your codes in your area. SWIMLIFE SWIMSPAS WILL NOT BE RESPONSIBLE FOR ANY ERRORS IN INSTALLATIONS OR CODE INFRACTIONS. EFFECTIVE DATE: January 1, 2018 (supersedes all others)
