Merax SW000009FAA User Manual

Trampoline with enclosure
Hide thumbs

Advertisement

Table of Contents

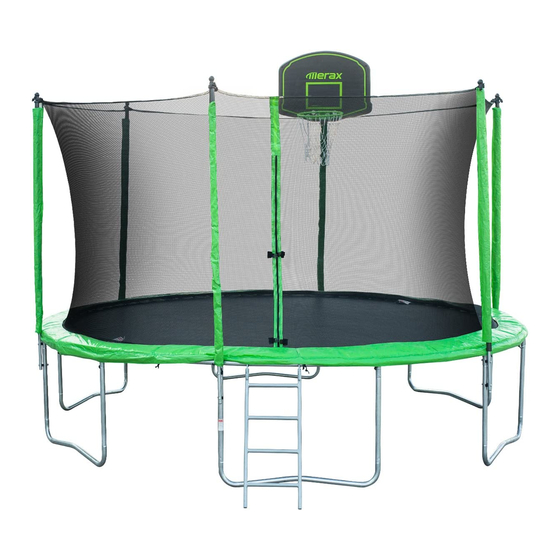

Merax 14FT Trampoline with Enclosure
Assembly instruction, installation, use, maintaince and care
-
Don't try to somersaults or cartwheels. Falling on the head or neck can result in
paralysis or even death.
-
No more than one person at the same time making use of the trampoline. Multiple users
can increase the risk of injury.
-
Use the trampoline only under the supervision of an adult with knowledge of use. These
-
instructions are for your safety. Please carefully read each of them before assembly and
use of the trampoline. We retain this manual for future reference.
-
The maximum user weight should not exceed 330lbs / 150Kg for this product.

USER MANUAL

Caution
Read before using the product.
Telephone : 626-912-8886 Ext. 104
E-mail: csr@merax.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW000009FAA and is the answer not in the manual?

Questions and answers

Summary of Contents for Merax SW000009FAA

  • Page 1: User Manual

    Merax 14FT Trampoline with Enclosure Assembly instruction, installation, use, maintaince and care USER MANUAL Caution Don't try to somersaults or cartwheels. Falling on the head or neck can result in paralysis or even death. No more than one person at the same time making use of the trampoline. Multiple users can increase the risk of injury.
  • Page 2 Caution No flips or twists, a fall on the head or Neck can result in paralysis or even Not more than one person at the same death. time on the trampoline (330 lbs / 150 kg). 0-6 ANOS Remove all sharp Do not use in Do not allow the In case of...
  • Page 3 Part List - Trampoline Number Diagram Description Quantity Trampoline Mat Frame Pad Top Rails with Legs Top Rail Base Leg Vertical extension leg Vertical extension leg (Two Holes) Galvanized Springs 28N (5 1/2 "long) Green PVC Sleeves Loading Spring Tool Top Frame Tube(with foam) Bottom Frame Tube(with foam) Mesh Cover...
  • Page 4 Basketball Hoop Number Diagram Description Quantity Board Ring Board connect hook Upper Board Tube(No Foam) Lower Board Tube(No Foam) Part list - Tools Number Diagram Description Quantity Screw Small Spring Wahser Allen Tool Tool Gap Spacer Bolt...

  • Page 5: Before Assemble

    Bolt Big Spring Wahser Lock Nut Arc Washer Rope Square Neck Bolt Round Head bolt Washer Plastic Nut Ladder Installation and Assembly instructions This trampoline and the cover can be disassembled and stored easily by Reversing the order of the installation. At least two people are required to assemble the trampoline and cover.

  • Page 6: Step 1 - Assemble Frame

    Assemble Frame of Trampoline Before you start: check all the steps before assembling and Read All precautions before using the trampoline. It requires at least two adults to assemble the trampoline. Must use Protective Gloves to avoid injury during the Assembly Step 1 - Assemble Frame Locate the following 30 pieces of Steel Tubes that will need to begin to assemble the trampoline:...
  • Page 7 Step 2 - Leg Support Assembly Connect the vertical extensions leg (# 6A and #6B) to the base leg (# 5) as shown in Figure 2 (The mounted parts will be referred to hereafter as "Support Leg"). Repeat this step for all the support legs. Note: The vertical extension leg (#6B) has two holes (2) # 6B # 6A...
  • Page 8 Step 3 - Main rail Assembly with screw At this point, two people are needed to assemble the trampoline. Lift two sets of legs brackets mounted in STEP 2 to a vertical position (standing). Connect one end of the top rail (# 3) to the vertical extension of the leg (# 6A) and the other other end to the vertica leg extension with two holes (# 6B) as shown in Figure 3 .
  • Page 9 Step 4 - Top Rail Assembly Complete the main frame by inserting top rail (# 4) on top rail (# 3) as shown in Figure 4. # 6B # 6A # 6A # 6B FIGURE 4 Step 5 - Securing the support leg to the top rail. Secure one side of the support leg - Extension of vertical leg (# 6A) to the frame using the locking screw (#A), washer small security (# B) and Allen key (# C) as shown in FIGURE 5.
  • Page 10 Assembly of the trampoline Mat To assemble the trampoline Mat, only need the Spring Loading Tool (# 9) included in this product. Tool - Spring Loaded (# 9) Step 6 - place the Mat Place the trampoline Mat (#1) on the floor in the Interior of the frame assembled with the Label facing up as shown in Figure 6.
  • Page 11 STEP 7 - Assemble Springs By placing the Springs, do not put hands, Arms, Legs or other body part near the connection Points (i.e., joints Connecting Steel Pipe connection points) can become pinched points when the Springs are contracted. Use Heavy Duty work gloves protect your hands from pinching by Springs and Protective Glasses to prevent Eye injury.
  • Page 12 Step 8 - Assemble Springs After having secured the spring in the "Zero Point", Count to 36 holes on the opposite side of the frame and put a Spring in the same way as in the previous step. For a uniform distribution of the spring tension and ease of installation, the springs must always be installed at opposite sides of the main frame of an Alternating Way, i.e., Zero after 36, followed by 18 and 54 as shown in Figure 8.
  • Page 13 Step 9 - Assemble Springs Place a spring each interval of the sixth hole. For a uniform distribution of tension and ease of assembly, the springs should be placed on opposite sides of the main frame Alternatively, IE 6 after 24 and 42, 60, etc. besides the Springs above should now have Springs at 6, 12, 24, 30, 42, 48, 60 and 66, as shown in Figure 9.
  • Page 14 Assemble Frame Pad Never use the trampoline without the frame pad, the pad frame reduces the risk of injury by striking the metal structure. Inspect the cushion frame and metal parts are completely covered by the frame pad before each use. Note: Please ensure that the warning label is placed between the support leg main frame, as shown below: This is to ensure that the label is in front of the entrance trampoline Step 11...
  • Page 15 Step 12 Finally, wrap the internal elastic straps around triangular ring and tie a knot as shown in the diagram, then tie in a bow on one side as shown in Figure 12. Repeat this step for all inner bands. Triangular Rings Expanded Diagram Frame Pad (#2)

  • Page 16: Before You Start

    Assembly of the Trampoline Mesh Cover Before you start: This trampoline should only be used when the network is assembled correctly. The net of the trampoline must be revised thoroughly before each use to ensure that there are no breakages or damage. PLEASE READ CAREFULLY ALL the important safety instructions in this manual and all warnings on the product before use Step 13 Place bottom frame tube (with foam) (# 11) next to the support leg(i.e., the side with the 2 Holes) and...
  • Page 17 Step 14 Connect Board (# 13) and Ring(#14) with the Round Head Bolt (#N) , Wahser (#O), as shown in Figure 14. Connect the backboard to Upper Board Tube (#10A) using Board Connect Hook (#15) and secure it with Square Neck Bolt (#M) , Plastic Nut(#V), secure Round Head bolt (#N) with Wahser(#0) and Luck Nut (#I).
  • Page 18 Step 15 Connect Upper Board Tube (#10A) and Lower Board Tube (#11A) with "U" pin, Make sure the Basketball Board faces inward the trampoline. Connect Top Frame Tube (#10) and Bottom Frame Tube (#11) with screw (#A), Small Spring Wahser (#B) and Allen tool (#C), After all the tubes are connected, slip the Green PVC Sleeves (#8) onto the top frame tube(#10).
  • Page 19 Install the strap circle to the top of the frame (# K1) as shown and then tie the other end of the strap to the top(# K1). Please make sure the door is closing at the zero point # 12 # K1 # 10 FIGURE 16...
  • Page 20 Step 16 Tie the end of the cable (# L) to the first ring of the trampoline, pull cord (# L) through all the rings on the trampoline frame, then tie the two ends of the rope together. Step 17 Pull the trampoline enclosure (# 12) to the door, then press two buckles as (the bottom of the buckle not shown) shown in FIGURE 17.

  • Page 21: Maintenance

    TRAMPOLINE AND ENCLOSURE CARE AND MAINTENANCE To avoid damage to the trampoline and enclosure, do not allow pets or animals inside the enclosure. The trampoline is intended to be used by one person at a time who weighs not more than 330 pounds. The user should be either barefoot, wearing socks, or wearing gymnastic shoes.

  • Page 22: Basic Trampoline Skills

    BASIC TRAMPOLINE SKILLS Fundamental Bounce 1. Start from a standing position with your head erect and your eyes on the frame pad. 2. Swing your arms forward and up in a circular motion. 3. Bring your feet together and point your toes downward while in the air.

  • Page 23: Limited Warranty

    LIMITED WARRANTY Merax warranties its trampoline products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for one (1) year after the date of purchase. All other parts are warranted for ninety (90) days after the date of purchase.
