Hearing Products International EchoChime300 User Manual

USER MANUAL
EchoChime300 TM
WIRELESS Home Alert System

MAINTENANCE

- For best results, use good quality alkaline batteries.
- Always replace old or weak batteries.
- Keep doorbell dry. If wet, dry immediately.
- Do not use cleaning solvents on electronic products.
- Solvents contain chemicals that can damage circuitry.
Use damp towel or cloth to clean. Dry immediately.
- Do not expose the bell unit to rain or immerse in water.
It is not water resistant.
If the device is operated using a mains adapter, only use
the Hearing Products International Ltd approved mains adapter.
Do not use any other type of mains adapter.

WARNING

The user is cautioned that changes and modifications made to
the equipment without the approval of Hearing Products
International Ltd could void the user's authority to operate this
equipment.
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment.
1 2
06-2016
CODE PAIRING & MELODY SELECTION

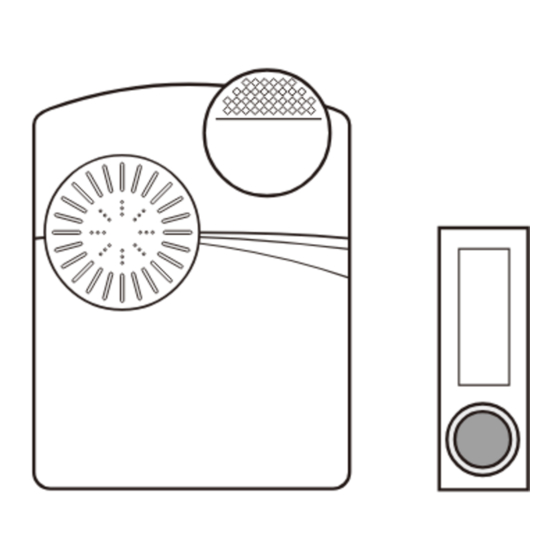

PARTS & FUNCTION DOOR BELL
PLEASE NOTE THE BELL PUSH AND CHIME ARE PAIRED
Receiver Vibration out
Vibration Pad AND READY TO USE.
Function Switch On/Off Step 1:Insert battery to the transmitter
Volume control ID
Flasher DC jack to be used (bell push).
Reset Step 2:Insert batteries to the receiver
ID
Hanging Hole to be used (chime unit).
Indicator
Speaker
Melody S t e p 3 : E n t e r p a i r i n g m o d e f o r
selector button receiver (chime unit).
Zone select button Press and hold the zone
Zone select button
Select button for 3 seconds.
The LED #1 will flash.
Battery cover Melody selector button
Battery compartment
Step 4: Press the button again to
Doorbell pusher move to the zone you wish to pair with. Press melody
selector to scroll through the melodies. Once you hear
your preferred melody, do not press again as it is now
Call button
selected.
Battery Step 5: Once the zone and melody are selected, press the bell
Name plate
compartment push button once to pair. If successful, the receiver
(chime) will generate a short tone. Press the button to
exit pairing mode, the system is ready to use.

MOUNTING

To stop the Chime whilst it is alerting press the reset button
Receiver
Door bell pusher
Clear the transmitter on the Chime memory
First, press and hold the button for 3 seconds to enter the pairing
mode. Press the button to move to the zone which is to be
Or
deleted. Press and hold the and buttons together for 3
seconds.
The receiver will generate a tone to indicate the transmitter on this
zone has been deleted.
Hang on the wall Stand on the desk or use sticker provided
Change the melody in desired zone

POWER

First, press and hold the button for 3 seconds to enter the pairing
mode. Press the button to move to the zone then press the
Receiver Doorbell pusher
12V DC
- + button to select the melody required. Press the button until the
400mA
pairing mode is exited.
Battery low indicator
If a zone LED light is blinking, it indicates that the battery is low for
Open the cover
this transmitter. You must replace the battery as soon as possible.
or
If the white flash at the top of the Chime blinks every 5 seconds,
this indicates the receiver batteries are low. You must replace the
batteries of the receiver.
Using C size Battery Using 12V 400mA AC/DC
CR2032
adaptor.
3 4
BED SHAKER
VIBRATING PAGER
Part & Function
PARTS & FUNCTION DOOR BELL
plug
Speaker
Wire
Vibrator ID Belt Clip Function switch
Vibration &
Zone select
Setup button Melody
Melody Vibration
This Bed Shaker must be worked with the Echochime 300 when using the
vibration function. button
Reset
Bed Shaker Reset Melody
On/Off
OPEN
Vibration out
DC jack
Battery Compartment
On
MOUNTING
12V ready indicator
Off
Pad On Pad 12V Ready
Pad On inducator
DC jack: If using the Bed Shaker , it must be connected with a 12V 400mA AC/DC Or
adaptor to this jack.
12V ready indicator: This indicator will light up, when the 12V adaptor is
connected correctly. Reset
Reset
Bed Shaker on/off: Slide this switch to turn on or turn off the vibration
function.
Hang on the wall
Clip on the Belt
Pad on indicator: If the Bed Shaker on/off switch is slide to on position, this LED
indicator will light up to indicate vibration function is ready.
Vibration out: Plug the Bed Shaker to this jack. POWER
1. Slide to open the battery
cover
12V DC
2. Insert 2 AA batteries
400mA
3. Close the battery cover.
OPEN
Using the Bed Shaker, it must
be connected with a 12V
400mA AC/DC adaptor
Using 2 x AA size Battery
5 6
CODE PAIRING & MELODY SELECTION
PLEASE NOTE THE BELL PUSH AND CHIME ARE PAIRED Battery
ON/off button compartment
AND READY TO USE.
Step 1: Insert battery to the transmitter to be used (bell push). ON/OFF button
Step 2: Insert batteries to the pager Sensitivity
Step 3: Enter pairing mode for
Microphone
Power On/OFF
receiver (pager unit).
Press and hold the zone select Battery Installation
button for 3 seconds.
The LED #1 will flash.
Step 4: Press the button again to move to
the zone you wish to pair with.
+
Press melody selector to scroll
+
through the melodies. Once you hear
your preferred melody, do not press
Insert 2 AAA battery compartment
again as it is now selected.
Turn ON and turn OFF
Step 5: Once the zone and melody are selected with the zone icon This device has two ways to turn power on and off.
flashing, trigger the transmitter once to pair. If successful,
Hardware ON/OFF Slide the switch to ON or OFF
the receiver (pager) will generate a short tone. Press the
position.
button to exit pairing mode, the system is ready to use.
If the slide switch is OFF, you cannot use the
To stop the Chime whilst it is alerting press the reset button software switch to turn on the power. If the unit is
not in use for a long period, use the hardware
Clear the transmitter on the Chime memory
switch to turn off the unit
Hardware switch
First, press and hold the button for 3 seconds to enter the pairing
mode. Press the button to move to the zone which is to be Software ON/OFF This allows the transmitter to
deleted. Press and hold the and buttons together for 3 be controlled externally.
seconds.
Off: If the sensor is ON, press and hold the
The receiver will generate a tone to indicate the transmitter on this software ON/OFF switch 5 seconds, the LED will
zone has been deleted. flash.
Change the melody in desired zone ON: If the sensor is OFF, press and hold the
First, press and hold the button for 3 seconds to enter the pairing software ON/OFF switch 5 seconds, the LED will
flash. Software switch
mode. Press the button to move to the zone then press the
The sound sensor defaults to "ON" when the
button to select the melody required. Press the button until the
hardware switch is moved from OFF to ON.
pairing mode is exited.
Battery low indicator
If a zone LED light is blinking, it indicates that the battery is low for
this transmitter. You must replace the battery as soon as possible.
If the receiver beeps every 5 seconds, this indicates the receiver
batteries are low. You must replace the batteries of the receiver.
7 8
Code Matching & Melody Selection
The sound sensor works with the receiver (chime) and must be
paired prior to use.
Step 1: Insert batteries in the sensor to be used.
Step 2: Insert batteries in the receiver to
be used.
ID
Step 3: Enter pairing mode for receiver
(chime unit). Press and hold the
zone selector button 3 seconds.
The LED #1 will flash.
Step 4: Press the button again to move
to the zone you want to pair with.
Zone selector
Press melody selector to button
scroll through the melodies. Once Melody
selector
you hear you preferred melody, do
not press again as it is now s e l e c t e d .
Step 5: Switch on the sensor and speak into t h e m i c r o p h o n e ,
the red LED indicator will light. If s u c c e s s f u l , t h e
receiver will generate a short tone.
Press the button to exit pairing mode, the system is
ready to use
Operation
1. Open the cover.
2. Slide the power to the ON position,
3. Select the desired sensitivity low, mid, or high, this sets the level
of sound required to trigger the transmitter.
4. Stick the microphone to the device you want to detect.
Code Conflict
If the sound sensor coding and another transmitter is the same.
you must change the code of the sound sensor.
Open the cover Slide the on/off switch While pressing the test button
Slide the on/off switch to 'on'
to OFF position
position and hold the button 5
seconds. The LED will flash 5 times
when a new code is generated
When you have changed the code of the sound sensor you will then
need to re- pair the sound sensor with the receiver.
9
