K6600 LCD Keypad Installation Instructions
Description

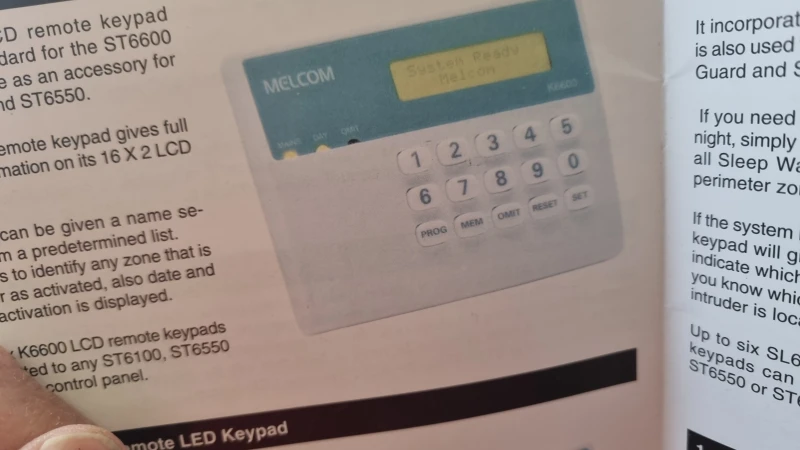

The K6600 LCD keypads can be connected to both the ST6100 & ST6600 control
panel. Up to a maximum of 6 Keypads can be connected to anyone control panel. The
keypad features, 32 segment LCD display, back light illumination, power, system status
and omit LED indication, onboard personal alarm (press: SET, OMIT, SET).
Installation instructions:
Handling the keypad
l Make sure your hands are clean
l Handle keypad carefully the LCD display is fragile
l Do not use unnecessary force when opening and closing the plastic case
l Peel off the protection film covering the LCD display
l Set the addressable configuration jumpers
l Install the keypad close to your entry/exit point of the building,
it should be positioned out of reach of children.

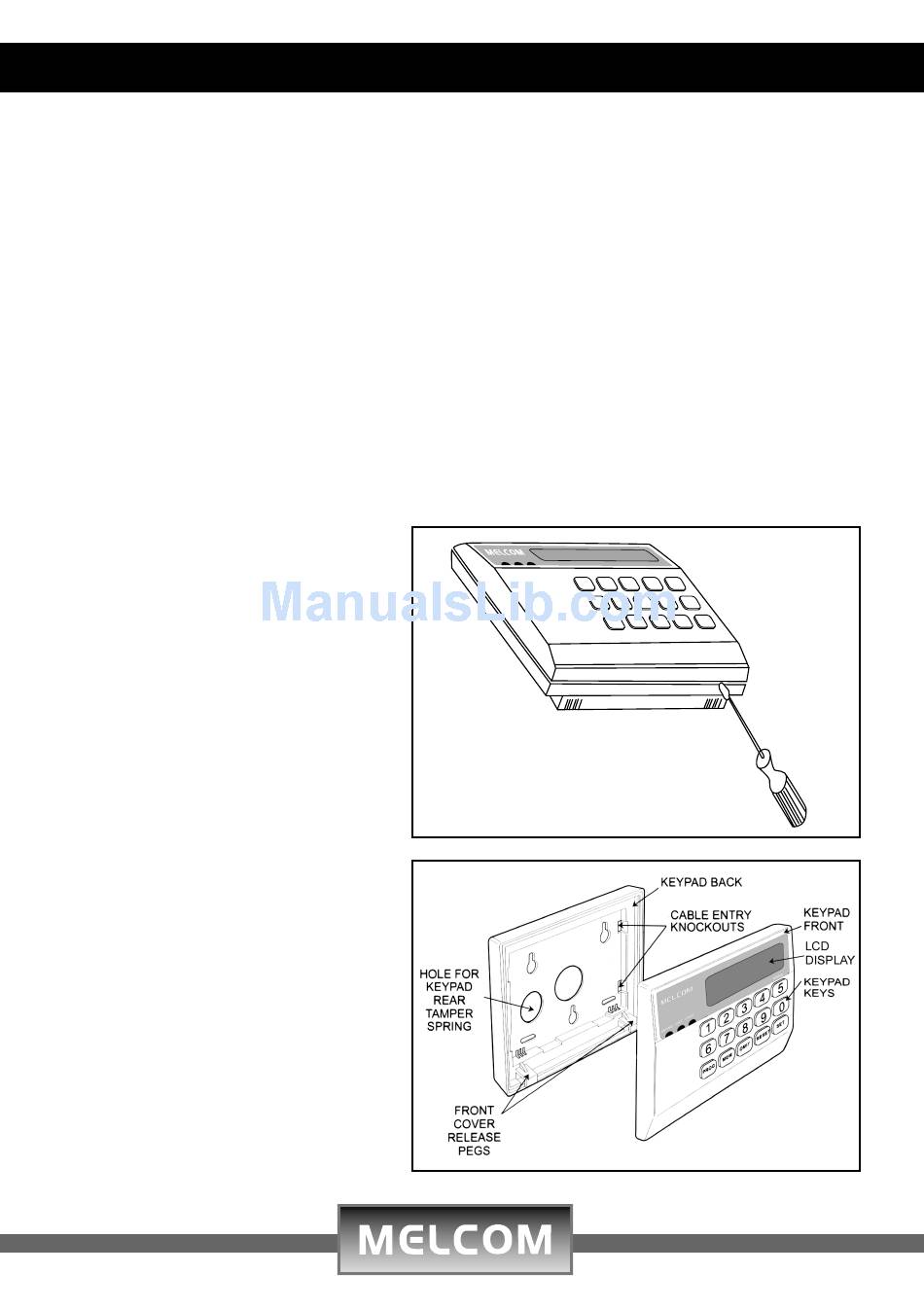

Opening the keypad
To remove the front cover, insert a
flat headed screwdriver to release
the pegs located at the bottom of
the keypad.
Mounting onto wall
Using the rear keypad plastic case
as a template, mark the positions
of the mounting holes. The
mounting surface must be solid, do
not mount onto a flammable or
uneven surface. Drill mounting
holes and fit wall plugs, before
drilling make sure you wear safety
goggles and check for hidden cable
and pipes.
K6600
1 2 3 4 5
6 7 8 9 0
PROG MEN OMI T RESET SET
