PZRacing Start Next User Manual

Index
1 - Introduction......................................................................................................................................................................................................................... 1
1.1 - GPS Technology.......................................................................................................................................................................................................... 1
1.2 - Content package......................................................................................................................................................................................................... 1
1.3 - Technical features...................................................................................................................................................................................................... 2
1.4 - Important information for correct usage................................................................................................................................................................... 2
2 - Chronometer components.................................................................................................................................................................................................. 2
2.1 - Touch screen.............................................................................................................................................................................................................. 2
3 - Installation.......................................................................................................................................................................................................................... 3
3.1 - Positioning................................................................................................................................................................................................................. 3
3.2 - Power......................................................................................................................................................................................................................... 3
3.3 - Memory card............................................................................................................................................................................................................. 4
4 - How to use Start................................................................................................................................................................................................................. 5
4.1 - Switch on/off............................................................................................................................................................................................................. 5
4.2 - Registering sessions.................................................................................................................................................................................................. 5
4.3 - Screens...................................................................................................................................................................................................................... 5
4.4 - Menu and icons......................................................................................................................................................................................................... 6
4.5 - GPS Signal................................................................................................................................................................................................................. 6
5 - Configuration, SETUP menu............................................................................................................................................................................................... 7
6.1 - Closed circuit............................................................................................................................................................................................................. 8
6.2 - Point to point............................................................................................................................................................................................................ 8
6.3 - Acceleration............................................................................................................................................................................................................... 8
7 - Storage of a new finish line/circuit..................................................................................................................................................................................... 8
8 - Session analysis.................................................................................................................................................................................................................. 9
8.1 - Viewing sessions and lap times................................................................................................................................................................................. 9
8.2 - Deleting a session...................................................................................................................................................................................................... 9
9 - Viewing values in real time................................................................................................................................................................................................. 9
10 - Download data.................................................................................................................................................................................................................. 9
11.1 - Setting the gear using RPM/SPEED ratio................................................................................................................................................................ 10
11.2 - Setting the gear using the analogue input............................................................................................................................................................... 10
12 - Demo mode..................................................................................................................................................................................................................... 10
13 - Self-diagnosis.................................................................................................................................................................................................................. 10

1 - Introduction

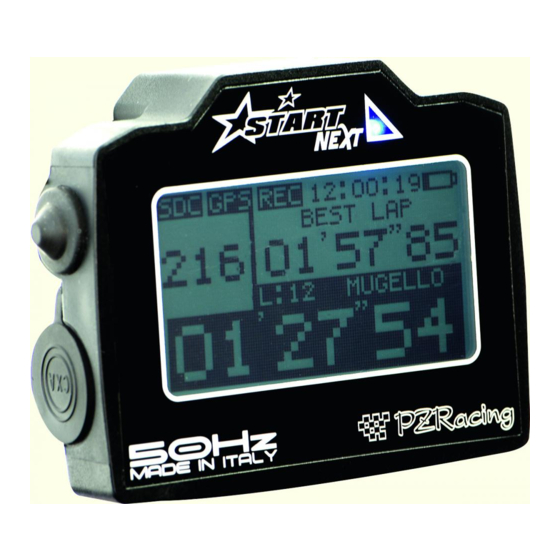

Thank you for choosing a PZRacing product. Start is a state-of-the-art GPS chronometer. There are many advantages to this technology: you will no
longer need to place a bulky infra-red transmitter at the side of the track, you can even view split times on the display and thanks to specially designed
software, you can view all the trajectories covered on a given track. Start is the only chronometer in the world to use a 50Hz receiver and a touch screen
pad with "Gloves Sensitive" technology which makes it possible to use the device even when wearing gloves.
Start Next and Start Basic are two chronometers of the same product line and they function in the same way. However, Start Basic
does not allow data acquistion; all channels connected to the device can be viewed on the screen but will not be saved.
Please note: PZRacing products are water resistant but not waterproof; do not wash the product with pressurised water and keep
the lateral tab closed at all times; failure to do so could cause permanent damage to the product.

1.1 - GPS Technology

The Global Positioning System (also known as GPS) is a satellite positioning and navigation system which, thanks to a network of artificial satellites in
orbit, sends information about geographic coordinates and the time to a GPS receiver, in any weather conditions and on any place on Earth. Its
functioning principle is based on a spherical positioning method which measures the time taken by a radio signal to cover the distance from a satellite to
a receiver. One of the main features of GPS receivers is the update frequency expressed in Hertz (Hz); this measurement unit indicates how many times
per second the satellite receiver is capable of updating its position. Start has a state-of-the-art GPS receiver with an updating frequency of 50Hz (50
times per second), which translates into higher precision in calculating the time and visualising trajectories.

1.2 - Content package

Start Next / Start Basic
-
Micro SD 4GB Memory card
-
USB mini cable
-
Fixing Velcro strap
-
No.4 screws for plastic adaptor
-
Plastic adaptor for bolt
-
M6x3cm bolt for fixing onto the bracket
-
Self-locking M6 nut
-
Metal washers
-
No.2 anti-vibration PVC washers
-
PZRacing Via de Gasperi 5 - 61032 Fano (PU) Italy - Tel: +39 0721 820434 - Email: tech@pzracing.it
Start Next & Start Basic FW3.0
User Manual - v2.0 - 26/07/2016
