Home CCTV C128U Installation And Operating Manual

Introduction

The Solar Camera is designed to economically provide safety,
security, convenience to your home and business. Its solar
panel collects daylight and maintains a charge to the battery of
the camera during daylight hours. A negligible amount of energy
is released by the rechargeable battery to operate the camera
during nighttime.
The components included in the C128U Solar Camera Kit:
1 x Solar Camera with PIR and Solar Panel(Transmitter)
¡ ´
1 x Audio & Video Receiver
¡ ´
1 x Power Adapter for Receiver
¡ ´
1 x 3 Feet RCA/SCRT Cable
¡ ´
1 x 6V 1.2A Rechargeable Battery
¡ ´
1 x 9V Alkaline Battery
¡ ´
1 x Waterproof Rubber Plug
¡ ´
Caution
Pay attention to the following before you install:
1. Sufficient daylight: Solar panel
requires constant charge during
daylight hours. Please mount the
camera at the location that can
receive sufficient daylight exposure.
2. Detecting sensitivity: A passive
infrared sensor
operates by detecting
the objective
movement and heat.
When the temperature
of the moving object
and its surrounding
area are close in value, it may reduce
PIR' s sensitivity. The motion detector' s
infrared beams radiate outward like the slat of a wooden fence.
Prior to mounting, keep in mind that the motion sensor is more
sensitive to the motion that crosses these "slats", and less
sensitive to the motion that moves directly towards the sensor
(see Figure 1 and 2.)
3.Keep a light source during nighttime: The camera cannot work
in total darkness. Please bear in mind the camera's viewing
area must be illuminated with a suitable light source during
nighttime.

Installation

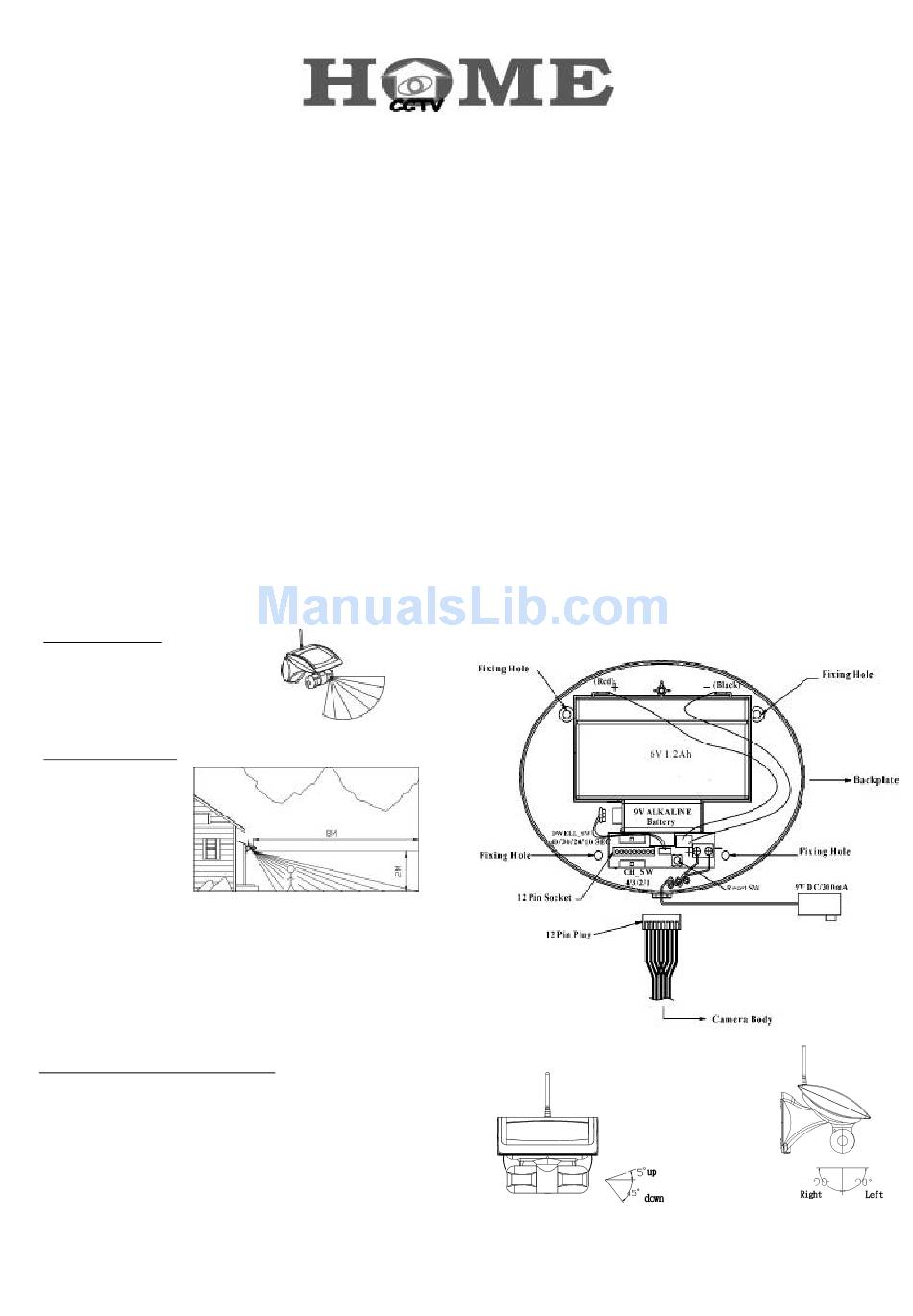

Step 1: Install the camera (refer to Figure 3):
C128U S
OLAR
Installation and Operating Manual
Figure 1
Figure 2
C K
AMERA
a.
Use the fixing template provided to mark the position of the
four fixing holes. Drill four 5mm-diameter holes.
b.
Mount backplate by inserting two screws into fixing holes on
the top edge of backplate. (All electronic components are
housed within the backplate.)
c.
Adjust the "DWELL_SW(SW3)" knob on backplate to set up
transmission time (lock time) of images and voices. It can be
set as 10,20,30 or 40 seconds.
d.
Adjust the "CH_SW" knob on backplate to set up a channel.
And remember which channel you selected.
e.
Plug the camera' s 12 Pin plug (Cable) into socket on the
backplate, then secure the camera set (front cover) to the
backplate by inserting screws into two fixing holes on the
button edge of front cover and backplate. And then insert the
waterproof rubber plug into the hole at the bottom of front
cover.
f.
The camera and PIR which under the main solar panel
cabinet can be swiveled upward to 5°, downward to 45°(refer
to Figure 4) and 90° horizontally (refer to Figure 5)
g.
Adjust the camera and PIR angle according to your need.
Figure 4
1
IT
Figure 3
Figure 5
