Uniform Industrial UIC802 User Manual

Portable reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Uniform Industrial Corp. (UIC)
47709 Fremont Blvd., Fremont, CA94538. U.S.A.
Tel: 510-438-6799
Fax: 510-438-6790
Email:
info@uicusa.com
URL: www.uicusa.com
UIC802 Portable Reader
Toll Free: 1-888-881-1900
Product User Guide
UDN UIC802-PUG Rev. 1.0
July-21-2005
1 of 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UIC802 and is the answer not in the manual?

Questions and answers

Related Manuals for Uniform Industrial UIC802

Summary of Contents for Uniform Industrial UIC802

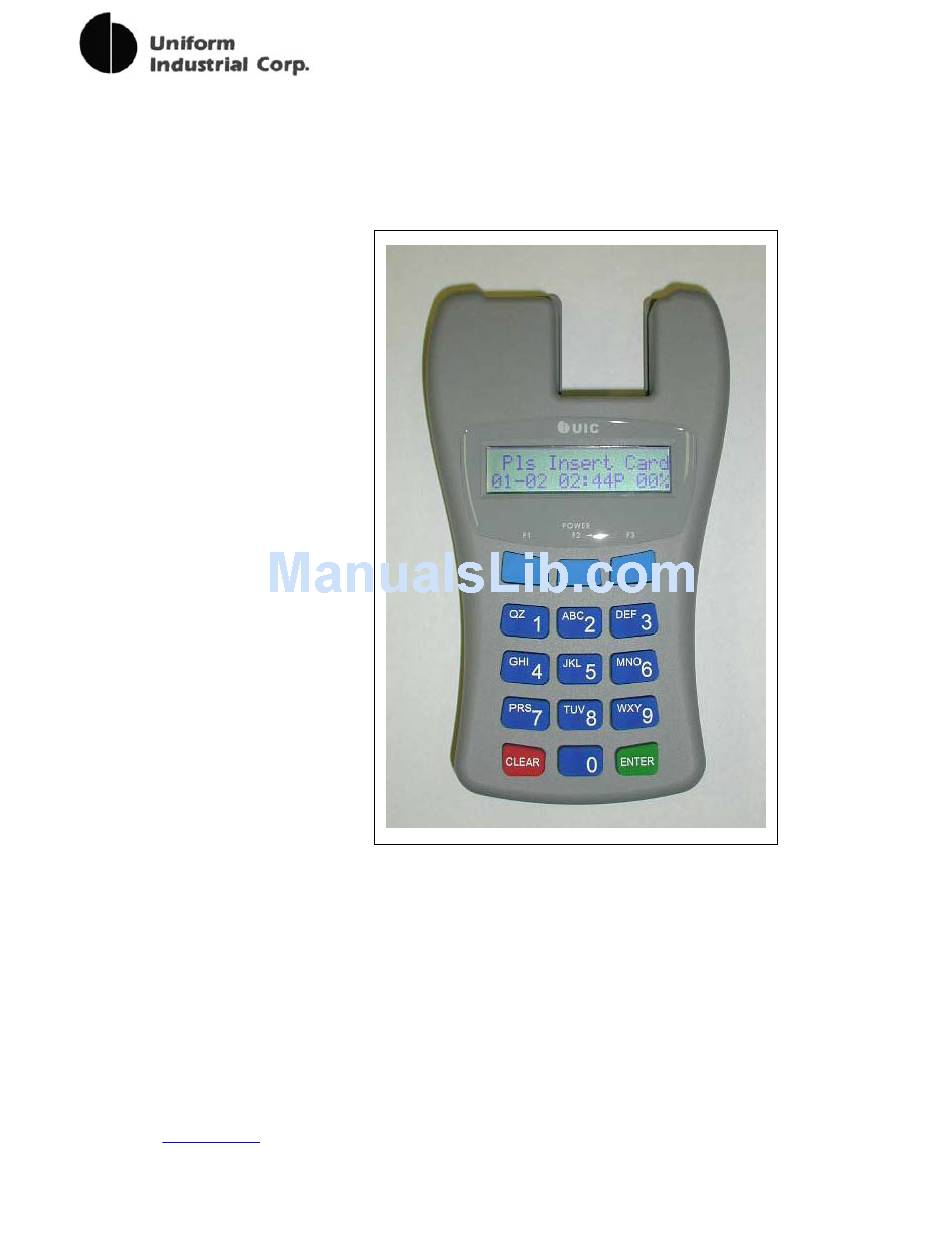

  • Page 1 UIC802 Portable Reader Product User Guide UDN UIC802-PUG Rev. 1.0 July-21-2005 Uniform Industrial Corp. (UIC) 47709 Fremont Blvd., Fremont, CA94538. U.S.A. Tel: 510-438-6799 Fax: 510-438-6790 Toll Free: 1-888-881-1900 Email: info@uicusa.com URL: www.uicusa.com 1 of 15...
  • Page 2 What is the UIC802? The UIC802 is a battery operated contactless RFID and magnetic stripe card reader designed for data collection application such as Trade Show Lead Capture, Time & Attendance, Off-line E-Payment, etc. The UIC802 has many advanced features yet it’s very simple to use.
  • Page 3 Contactless RFID Card Reader Supports a reading distance of 1 inch Supports 13.560 MHz Type A / Type B cards 1 Mega byte flash memory for data capture Stores up to 4,000 card data Portable Terminal for Data Collecting Applications Easy to read 2 lines x 16 characters LCD display Telephone style keypad for easy data entry and reader setup...
  • Page 4 Be Patient 08-15 12:37 PM 00% 4. If the UIC802 is unable to read the magnetic card due to bad card or improper swipe speed. Two possible scenarios may occur. a. The UIC802 is unable to detect any card data (for example, magnetic stripe is reversed).
  • Page 5 Track 08-15 12:36 PM 08-15 12:36 PM (II) Magnetic Card and RFID Card Operation 1. Press the POWER key to wake up the UIC802. The UIC802 will beep and displays the idle prompt: Please Read Card 08-15 12:36 P 00% 2.

  • Page 6: User Command

    UIC802 User Command Menu The UIC802 can be used in many data collection applications such as Trade Show Lead Capture, Time & Attendance, Off-line E-Payment, Inventory Control, etc. A User Command Menu is implemented in the UIC802 for different configurations to be used in various applications.

  • Page 7: Display Mode

    When the I.D. Entry option is enabled, the UIC802 will prompt the user to enter the PID (Personal Identification) number after a successful card read. The PID is any 6 digits number. The PID will be stored in Flash memory along with the captured card data.

  • Page 8: Print Record

    Before UIC802 System Command Menu The System Command Menu is used to set up the UIC802 configurations – Time and Date setting, Sleep Timer, Change Unit Password, Erase flash memory, Set unit ID number, update flash memory parameters and enable/disable the RFID operation.
  • Page 9 3. Selection “2” – Sleep Timer, the automatic shutdown feature is incorporate for battery power savings. The UIC802 will shut off after a period of no activity. This period time can be selected from this menu. “1” equal to 30 seconds, “2” equal to 60 seconds, “3” equal to 180 seconds and “4”...
  • Page 10 5. Selection “4” – Erase Data, this menu selection is used to erase all data from flash memory and reset all setting back to the factory default. Please use this selection with care. The data cannot be recovered once the flash memory is erased. Erase Data 3=RS 1=YES 2=NO...
  • Page 11 The UIC801 Utility Program greatly simplifies and enhances the usage of the UIC802 Portable Reader. The UIC801 Utility Program has the following functionality. 1. Upload Data – retrieve data from the UIC802 reader flash memory to the Utility Program buffer. Depend on the record size, this operation may take a few minutes.
  • Page 12 2. Open the folder and click the program “UIC Utility”. 3. Connect the UIC801 to the RS232 COM 1 port of the P.C. Make sure the UIC802 is power on. We recommend setting the sleep timer option to 2 = 300 second.
  • Page 13 13 of 15...

  • Page 14: I/O Connector Pin Assignment

    I/O Connector Pin Assignment Pin 1 PIN NO. SIGNAL NAME DESCRIPTION Ground System Ground TTL Serial Output TTL Serial Data Output from UIC802 TTL Serial Input TTL Serial Data Input to UIC802 BATT Output +3VDC output from UIC802 N.C. No Connection RS232 Output...

  • Page 15: Regulatory Information

    6) Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with the UIC802 reader unit. Cables used with this equipment must be properly shields to comply with the requirements of the FCC.
