Summary of Contents for MindWare Technologies 50-6030-00

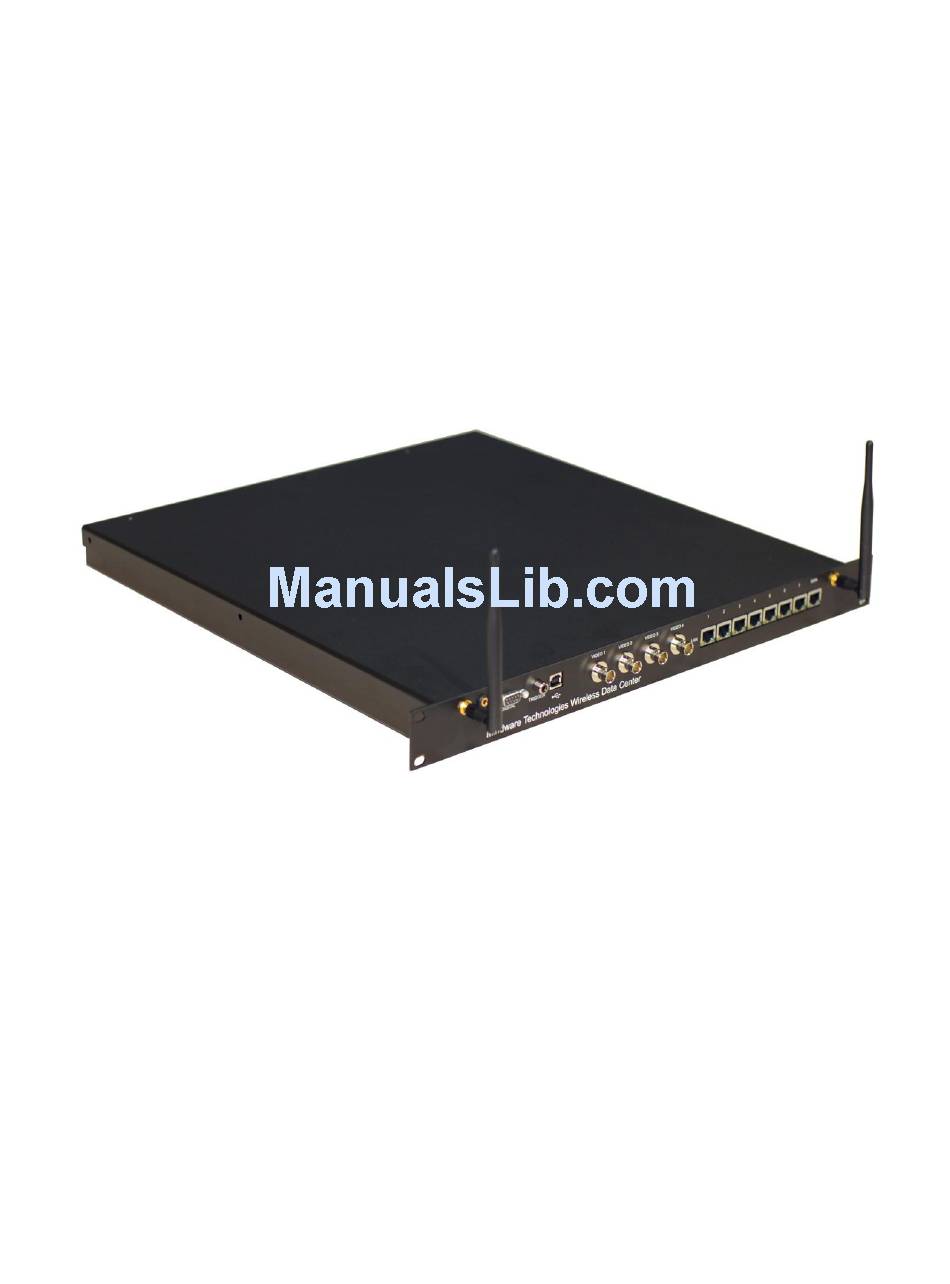

- Page 1 MindWare Wireless Data Center Hardware 50-6030-00 User Reference Guide Copyright 2015 © by MindWare Technologies LTD. All Rights Reserved.
- Page 2 E-mail: sales@mindwaretech.com Web Address: www.mindwaretech.com Phone Ph: (614) 626-4888 Fax: (614) 626-4915 MindWare Technologies LTD. 1020F Taylor Station Rd. Gahanna, Oh 43230 Copyright 2015 © by MindWare Technologies LTD. All Rights Reserved. 1020F Taylor Station Rd. Gahanna, OH 43230...
- Page 3 MindWare Technologies LTD products are being used. MindWare Technologies LTD products are NOT intended to be a...
-
Page 4: Table Of Contents
MindWare Wireless Data Center Hardware User Reference Guide Table of Contents Section 1: Technical Specifications ....................5 Section 2: Instructions For Use......................7 Warnings ............................7 Hardware Setup ..........................7 Identification of Operating Controls ..................7 Accessories and Consumables ....................8 Section 3: Rear Panel .......................... -
Page 5: Section 1: Technical Specifications
Section 1: Technical Specifications Range of environmental conditions for which the unit is designed: Indoor use Altitude to 2000 m Temperature for safe operation: 5°C to 40°C Maximum relative humidity: 80% for temperature up to 31°C decreasing linearly to 50% at 40°C Power supply voltage fluctuations not to exceed ±10% of the nominal voltage Over voltage category II Pollution degree 2... - Page 6 MindWare Wireless Data Center Hardware User Reference Guide Ethernet Optimized for MindWare Mobile WiFi data 9 RJ45 Ethernet Ports 10/100 Auto MDI/X 7 Front LAN + 1 Rear LAN DHCP enabled 1 Front WAN NAT + DHCP Client Wireless 802.11g - 2.4GHz Automatic channel selection Bridged to LAN Audio and Video...
-
Page 7: Section 2: Instructions For Use
Section 2: Instructions For Use Warnings Review the following safety precautions to avoid injury and prevent damage to the Wireless Data Center hardware and any products connected to it. To avoid potential hazards, use this equipment only as specified. This symbol indicates the equipment is to be serviced by trained personnel only. Failure to comply risks electric shock. -
Page 8: Accessories And Consumables
MindWare Wireless Data Center Hardware User Reference Guide Accessories and Consumables 2-Slot E-Prime Trigger Cable Part #45-0030-00 Instructions: Turn power to the Wireless Datacenter hardware off Connect the DB9 with the pigtail RCA connector to the Digital port Connect the RCA connector to the Trigger jack With a small slotted screwdriver, gently screw the DB9 connector into place Connect the DB25 connector to the parallel port of the... -
Page 9: Section 3: Rear Panel
Section 3: Rear Panel Rear Panel Power Switch Fuseholder AC Input Rear LAN Interface Stereo Audio Channels 1-4 Ph: 614-626-4888 * Fax: 614-626-4915 * www.mindwaretech.com... -
Page 10: Front Panel
MindWare Wireless Data Center Hardware User Reference Guide Front Panel Antenna Analog Input – 3.5mm Tip: Channel 1 Shaft: Channel 2 Base: Ground Digital – DB9 Pins 1-4: Digital Channels 1-4 Pins 5-7: Unconnected Pin 8: +5V 100mA max output Pin 9: Ground Trigger –... - Page 11 USB 2.0 Data collection computer interface Video 1-4 – BNC 75 Ohm, NTSC or PAL LAN 1-7 – RJ45 Data collection computer and network camera interface 100Mbit Auto MDI/X Ethernet DHCP enabled WAN – RJ45 Connection to external network 100Mbit Auto MDI/X Ethernet DHCP client NAT connection to LAN WARNING: Excess network traffic can interfere with research data collection.
-
Page 12: Section 4: Cleaning Instructions
MindWare Wireless Data Center Hardware User Reference Guide Section 4: Cleaning Instructions To remove scratches on surfaces: With an eraser gently rub across the scratch Clean off any debris before using Cleaning Hardware: Turn the power to the Wireless Data Center off Disconnect the power and all other cables connected to the device With a slightly damp cloth, wipe off hardware Avoid getting moisture in exposed connectors... - Page 13 1020-F Taylor Station Road Gahanna, OH 43230 (614) 626- 4888 www.mindwaretech.com Copyright 2015 © MindWare Technologies LTD. Ph: 614-626-4888 * Fax: 614-626-4915 * www.mindwaretech.com...
