Summary of Contents for Apice USB4

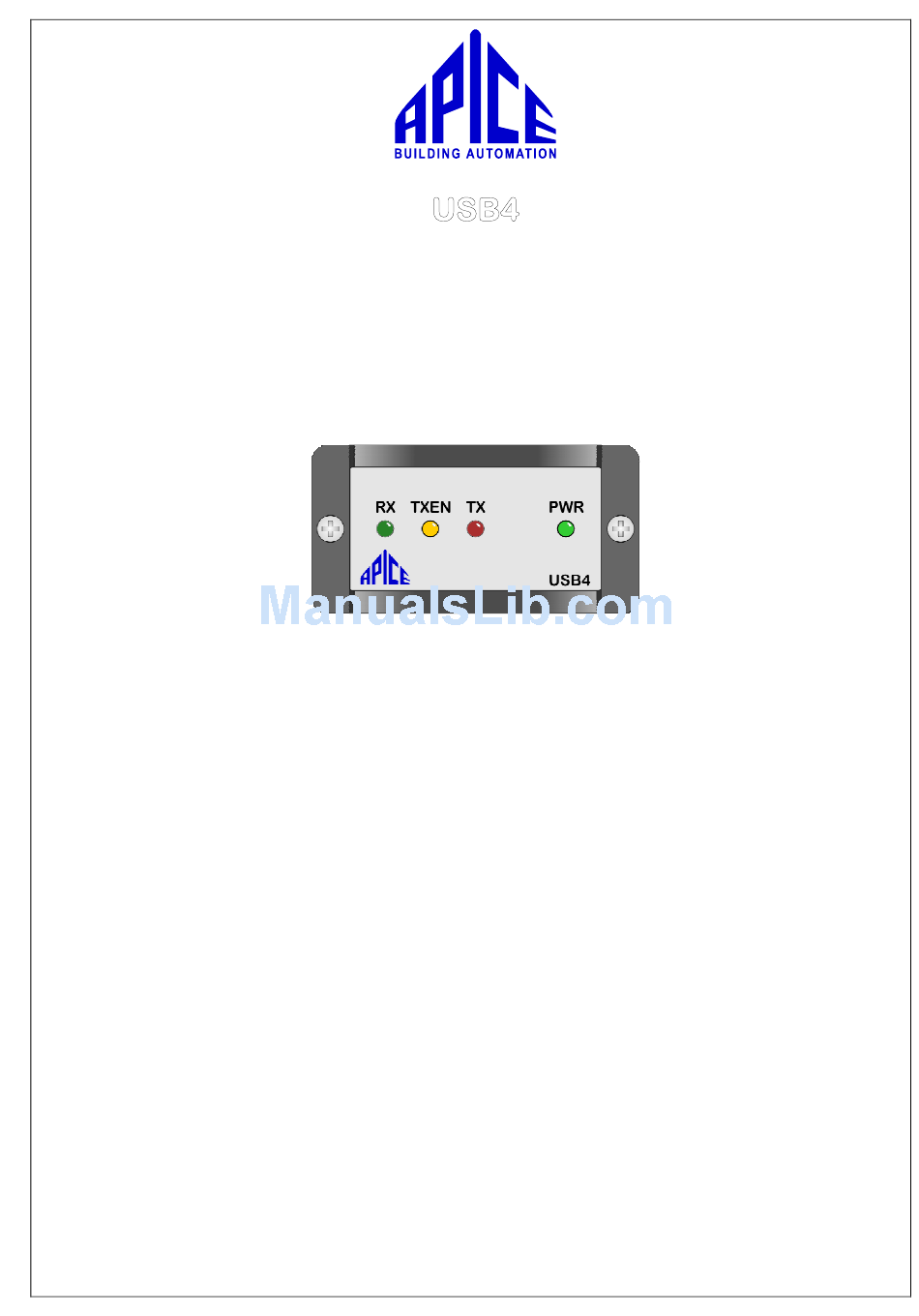

- Page 1 Serial converter USB <--> RS485 (Foto) User and Installation manual...
- Page 2 Apice Building Automation Introduction This serial converter from USB to RS485 is the ideal component to connect a PC to a RS485 network. In the computer it must be installed the driver containing in the CD provided with the device. The device allows a communication speed of 250 Kbaud and it is directly powered by USB socket of the PC.
- Page 3 Apice Building Automation Dip Switch (JP1) configuration Switch Descrizione Default Termination resistence (120 Ohm) Not used Not used B with pull-up A with pull-down Table 2 – Dip Switch Configuration Reception mode The reception mode can be configured with jumper J2. Mode A: To pass automatically in reception after transmission.
