The DisplayPort Repeater integrates a point-to-point connection DisplayPort Repeater to simplify system equipments; and
lower cost for applications requiring single DisplayPort input and output device in personal computing system and other
emerging digital appliances.
Feature
Supports DisplayPort resolutions up to 4K 60Hz.
Compliant with DisplayPort specification 1.2,HDCP 2.2 & DPCP
Supports 4K 60Hz (max. length: 5m in; 5m out); 4K 30Hz (max. length: 15m in; 20m out); 2560 x 1600 60Hz (max.
length: 10m in; 20m out)
Supports DP++ Dual Mode, compatible with HDMI, DVI or VGA adapters.
Specification
Model No.
Connectors
Resolution
Operating Temp.
Environment
Storage Temp.
Humidity
Power Supply
LED
Housing
Dimension ( L x W x H )
Package Contents
1.
DisplayPort Repeater
2.
5VDC Power adapter

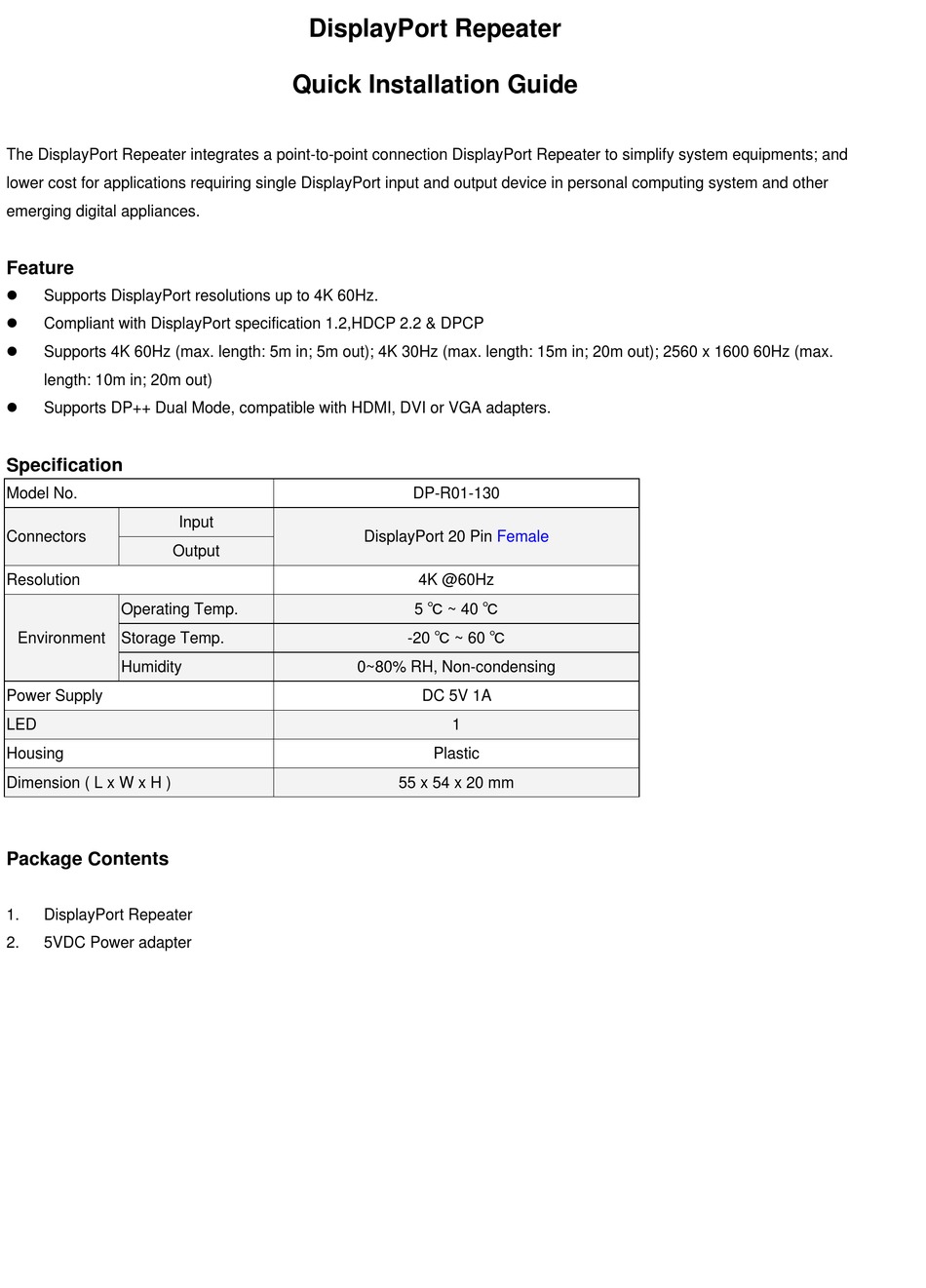

DisplayPort Repeater
Quick Installation Guide
Input
Output
DP-R01-130
DisplayPort 20 Pin
Female
4K @60Hz
5 ℃ ~ 40 ℃
-20 ℃ ~ 60 ℃
0~80% RH, Non-condensing
DC 5V 1A
1
Plastic
55 x 54 x 20 mm
Advertisement
Table of Contents
Summary of Contents for Chipset Communication DP-R01-130
- Page 1 Supports 4K 60Hz (max. length: 5m in; 5m out); 4K 30Hz (max. length: 15m in; 20m out); 2560 x 1600 60Hz (max. length: 10m in; 20m out) Supports DP++ Dual Mode, compatible with HDMI, DVI or VGA adapters. Specification Model No. DP-R01-130 Input Connectors DisplayPort 20 Pin Female Output...
- Page 2 Physical Diagram DisplayPort (Output) DisplayPort (Input) Power port (DC5V) Connecting Typical Application AC Power Adapter DisplayPort source Display device DisplayPort cable DisplayPort cable The DisplayPort Repeater is installed between the DisplayPort source and a connected DisplayPort monitor. Installation 1. Connect the DisplayPort source (for example, a computer graphics source) to the Input connector. 2.
- Page 3 Troubleshooting f you are unable to get an acceptable image after following the installation instructions, try the troubleshooting tips below. Is your equipment running the latest graphics driver? If not, download the latest graphics drivers for your equipment. Backward compatible with most DisplayPort 1.2 equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g.
-
Page 4: Regulatory Compliance
Regulatory Compliance Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
