SKE EK-010 User Manual

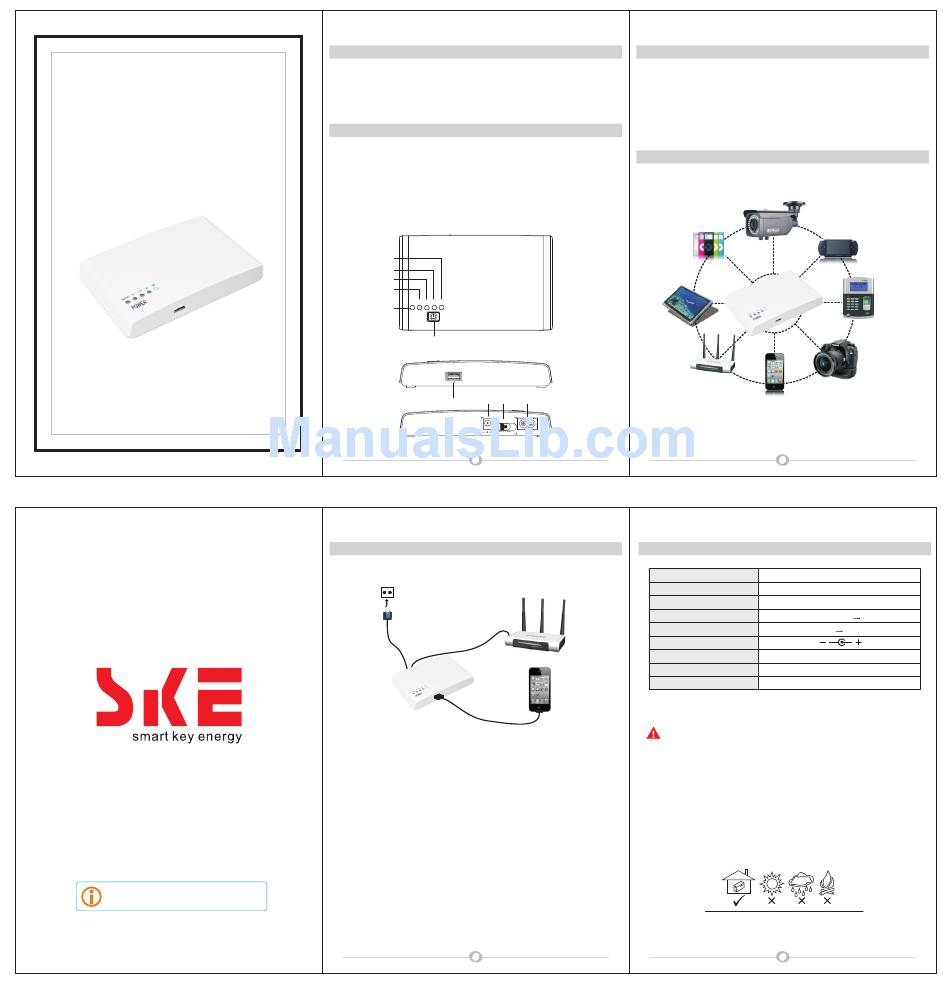

USER'S MANUAL USER'S MANUAL
{ Thank you for choosing our SKE UPS. Before operating this unit,
please read the USER'S MANUAL carefully in order to make sure
that the best possible performance is obtained.
Please do not arbitrarily disassemble, squeeze, short circuit
the batteries or dispose the batteries into water or fire. Do not
put the UPS in any places where is over 60℃（140℉）.
1 . STCB UPS package
1 ) M o d e l E K - 0 1 0
2 ) A C p o w e r c a b l e
3 ) D C o u t p u t c a b l e s ( 2 e n d s )
4 ) U s e r ' s m a n u a l
5 ) W a r r a n t y c a r d
2 . Instructions of the components
1) ON/OFF Switch
2) 12Vdc LED Indicator
3) 9Vdc LED Indicator
4) 7.5Vdc LED Indicator
5) 5Vdc LED Indicator
②
③
④
⑤
Bat.S tatus 5V 7.5V 9V 12V
⑥
power
①
}
5 . How to use
How to use
1) In order to prevent over-discharging of the lithium batteries, please
restart the UPS when AC is available after low battery cutoff.
2) Press the POWER button for 2~3 seconds to turn on the UPS and you will
see the light up of the battery status indicator (GREEN means battery full,
YELLOW means 50% full and RED stands for battery low). The BLUE LED
indicates the current output voltage, and the user can choose the preferred
output voltage (5V, 7.5V, 9V or 12Vdc) by sliding the voltage selection
button. Press again the POWER button for 2~3 seconds to turn off the UPS
(all LED will be off and no more output provided).
3) Before connecting the loads to the UPS, it's a must to check their nominal
working voltage, current and polarity which you can find on their original
adapters.
4) Plug-and-play USB provides stable charging to the digital products with
their original charging cables.
5) When AC blackout happens or this unit is being used as a portable power bank,
please DO charge it without further delay when the battery status indicator turns
RED.
6) Please keep the UPS in a cool space after fully charging if it is not in use for
an extended period. Charging once a month is highly recommended.
6) Batter y status indicator
7) USB (5Vdc) output
8) Output socket (5/7.5/9/12Vdc)
9) Output voltage selector
10) AC input socket
USB
Output:5V 1000mA
⑦ ⑧ ⑨ ⑩
Output Voltage Selector
AC Input: 100~240V
12V 9V 7.5V 5V 50/60Hz
1
3
3 . Features
1) High capacity lithium batteries, provides long backup to the loads.
2) High compatibility, suitable for most digital products in the market.
3) USB output (5V), can supply charging for digital products like mobile
phone, PDA, PSP, IPOD, MP4... etc.
4) Intelligent circuit design with over-charging, over-discharging and
short circuit protections.
5) Built-in adapter allows wide AC voltage range (80~265Vac).
4 . High compatibilities
MONITOR
MP3
IPAD
WIFI
MOBILE PHONE
2
6 . Specifications
Model
Rated working voltage
100~240Vac/50-60Hz
Output power(Max.)
DC output voltage and current
5、7.5、9、12Vdc
USB output voltage and current
Output polarity
Specification of lithium batteries
Dimension 166x103x29mm
Weight
*
Products specifications are subject to change without notice.
Warning
1． Do check the working voltage, current and polarity of the loads
before connecting them to the UPS, then choose the corresponding
voltage.
2. Please charge fully before initial use.
3. Dropping, hitting, disassembling and repairing privately are forbidden.
4. Do not put the UPS into water or make it wet.
5. Do not dispose of the UPS in fire or heating it.
6. Do not use the UPS in any flammable environments.
7. Do not put the UPS in any places where Children can reach.
4
PSP
TIME RECORDER
DIGITAL CAMERA
E K - 0 1 0
12Watt
—
1000mA
—
5Vdc 1000mA
2200mAhx4
0.53kg
