INSTALLATION INSTRUCTIONS

DFX24 FIREPLACE INSERT FACE PLATES AND TRIM
Check to see that you have the following. If any part or parts are missing, contact the dealer where you bought the Fireplace
Insert Face Plates and Trim.
CONTENTS:
DESCRIPTION
Front Panels, (Right, Left and Top)
Trim, (Right, Left and Top)
Self-Drilling Screw, #8 x 1/2"
Brass Screw, #6 x 3/4"
Miter Clamps

TOOLS NEEDED FOR INSTALLATION:

Phillips Screwdriver or Drill with Phillips Screwdriver

INSTALLING FACE PLATE FLUSH TO THE FRONT

1. Remove three panels, trim and mounting hardware (screws
and miter clamps) from packaging.
2. Install the right side panel with two self-drilling screws
into the side of the unit flush to the front with
notch at the bottom. Do not over tighten screws. See Fig-
ure 1.
3. Repeat step 2 to install the left side panel.
4. Align top panel with the front surface of the side panels.
Attach the top panel to the unit with four self-drilling
screws. See Figure 1.
5. Install trim per instructions on back of this sheet.

INSTALLING FACE PLATE BEHIND UNIT TRIM

1. Install unit trim per instructions in owner's manual.
2. Remove three panels, trim and mounting hardware (screws
and miter clamps) from packaging.
3. Install right side panel with two self-drilling screws into
the side of the unit behind unit trim with the 1/2 inch
notch at the bottom. Do not over tighten screws. See Fig-
ure 1.
4. Align the top panel with the front surface of the side pan-
els. Attach the top panel to the unit with four self-drilling
screws. See Figure 1.
5. Install surround trim per instructions on back of this sheet.
Monessen Hearth Systems
149 Cleveland Drive • Paris, Kentucky 40361
QTY
8
4
2
1
/
inch
2
Side
Panels

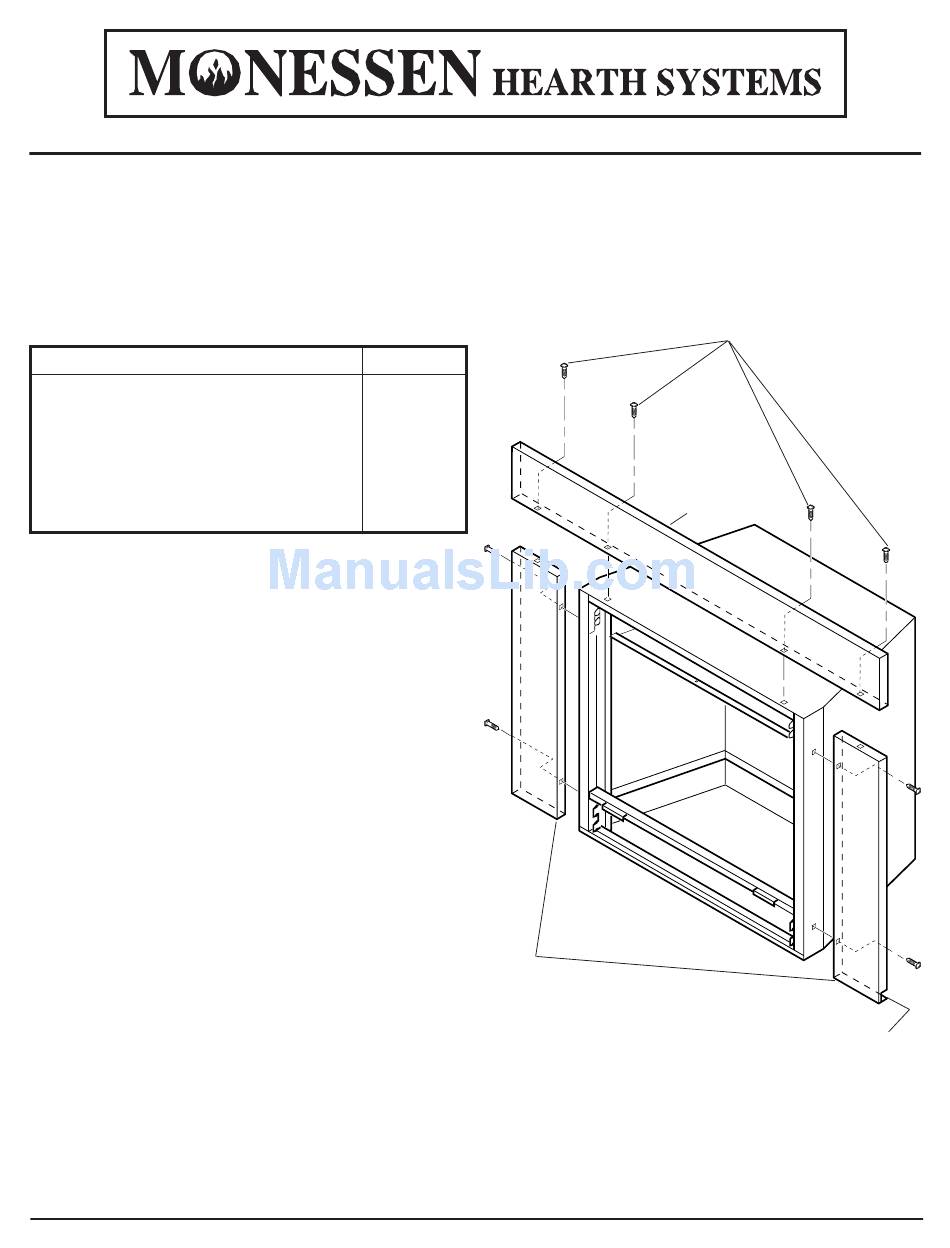

Figure 1 - Installing Top and Side Panels Flush on
the Face of the Unit
Note: The 1/2" square notch will be on the bottom
outside corner.
P/N 33D1105 Rev. 1 • January 2000
Self-Drilling
Screws
Top Panel
1/2" Square
Notch
