1. Install Tracking Tools Software

Download the latest software
installer from the website or
use software CD if included.
Run the installer and follow its
prompts.

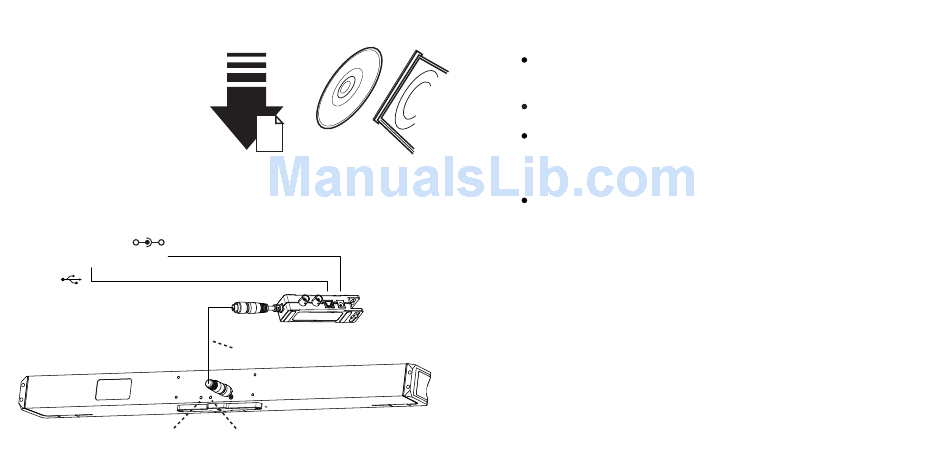

2. Plug In Hardware

12 V @ 3 A
+ –
Power
USB Uplink
to PC
Left LED
(see Status LEDs at right)
I/O-X
(breakout box)
Camera Bar Cable
Right LED
* Notes
After starting Tracking Tools software, the device should be ready to track
immediately.
Licensing and calibration are automatic and built into the device.
Warning: Ensure power has been disconnected from the I/O-X (breakout
box) before plugging or unplugging the Camera Bar Cable. Hot-plugging
this cable may damage the device.
Windows 2000, XP, Vista and Windows 7 users must be logged in as an
administrator to install the USB drivers. If you only have one user login on
your computer, you probably have administrator privileges.

* Status LEDs

Left LED:
OFF Device is OFF
RED Device in ON
AMBER Device is Recognized
by Tracking Tools
Right LED:
OFF Tracking/Video is NOT ENABLED
Solid-RED Configured for External-Sync –
Sync Not Detected
Flashing-RED Configured for External-Sync –
Sync Detected
Solid-GREEN Configured for Internal-Sync –
Sync Missing
Flashing-GREEN Configured for Internal-Sync –
Sync Present
