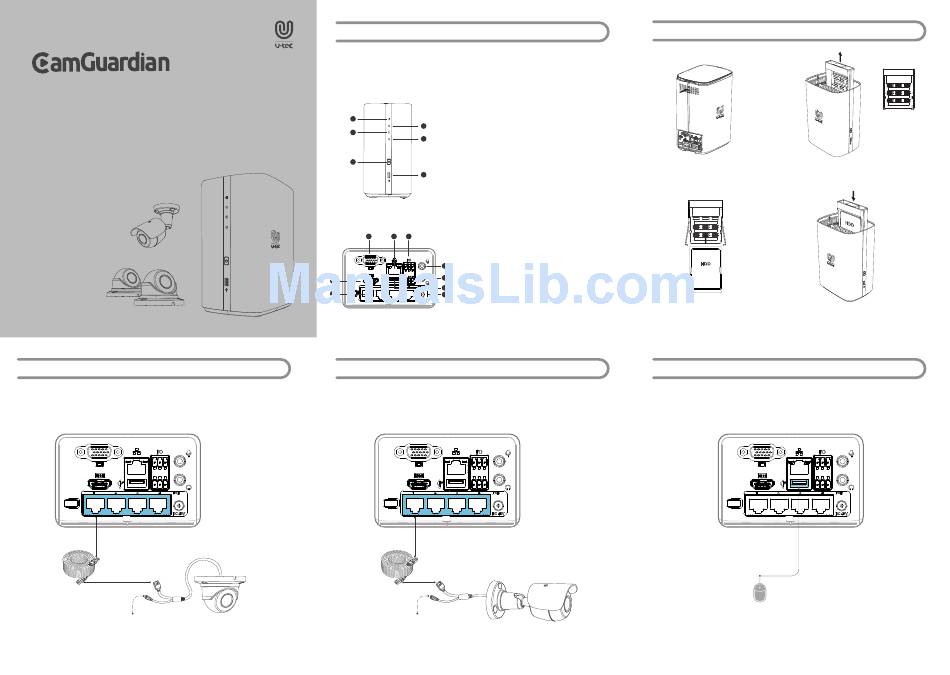

U-tec CamGuardian UCG-H2N8E4A2 Quick Start Manual

Quick Start Guide
(V1.3)
UCG-H2N8E4A2/UCG-H2N8E4B2
2015 © U-tec Group Inc. All Rights Reser ved.
C
onnect the Cameras (A2)
To connect your camera(s) to the H2-N8E, simply connect the supplied Ethernet cable to the LAN
connection on the camera then plug the other end of the Ethernet cable into one of the camera
inputs on the back of the H2-N8E.
Network Cable
Not required
* One H2-N8E supports 8 cameras. 4 cameras can be connected directly. If you want to install 5-8
cameras, these will need to be connected to a router. All CamGuardian cameras support regular or
PoE routers.
G
etting to know your H2-N8E
Congratulations on the purchase of your U-tec CamGuardian. This quick start guide will assist you
on getting your H2-N8E up and running as soon as possible. We recommend that you connect
everything and give it a try before you do a permanent installation, to make sure nothing was
damaged during shipping. Below is a detailed connection map which illustrates the various
connections on the H2-N8E.
Front
1
3
1
2
5
Back
1 2 3
9
8
C
onnect the Cameras (B2)
To connect your camera(s) to the H2-N8E, simply connect the supplied Ethernet cable to the LAN
connection on the camera then plug the other end of the Ethernet cable into one of the camera
inputs on the back of the H2-N8E.
A2
4
① Power Indicator Light: Display power ON/OFF status
② Status Indicator Light: Display H2-N8E working status
③ Hard Drive 1 Indicator Light: Display hard drive 1 working status
2
④ Hard Drive 2 Indicator Light: Display hard drive 2 working status
4
⑤ Power Switch: Switch on/off button
⑥ USB Port: Connect the USB device
6
① VGA Port: Connect to a HDTV or Monitor.
② Network Interface: Network connector port
③ I/O Interface: Alarm input/output and RS485 communication
④ Audio Input: Input audio signal
4 ⑤ Audio Output: Output audio signal
⑥ USB Port: Connect the USB device
5
⑦ DC48V: Connect to power adapter
6
7
⑧ PoE Port: Connect to camera
⑨ HDMI Port: Connect to HDTV or Monitor
Network Cable
Not required
B2
I
nsert Hard Drive
s s
P r e
Step 1: Press button and then the top
cover will spring up.
Step 3: Fix the hard drive onto bracket as
picture shows.
2
C
onnect the Mouse
Connect the mouse(supplied) to the USB port located at the rear of the H2-N8E.
5
Hard drive bracket
Step 2: Pull hard drive bracket out.
Step 4: Insert hard drive into H2-N8E,
and replace cover.
3
6
