Sentek ZC-100 Operating Manual

ENG
Sentek is a bidirectional wireless system. This means the signal is
not only sent to the receivers, but also the receivers send feedback
confirming the reception of the signal. This also confirms the
condition of receivers, which allows us to check whether or not a
device has actually been switched on. The safety of transmission of
the ZC-100 is comparable with a wire-linked bus system. The
ZC-100 operates in the free band for data transmission. The
frequency depends on the radio regulations in each individual
country.
Each Z-Wave network has its own unique network identification
number (home ID), which is why two or more independent systems
may be installed in a single building without any interference.
Although the Z-Wave technology is fairly new, it has already been
accepted as an official standard, just like Wi-Fi. Numerous
OPERATING MANUAL manufacturers from various fields offer solutions based on Z-Wave
technology, compatible with one another. This makes the system fit
DOOR / WINDOW SENSOR
for the future and allows for further development.
ZC-100
Sentek establishes a dynamic network structure. From the moment
of start-up, the location data of respective devices of the Sentek
System is updated automatically, in real time, by confirming their
condition in the working mesh network.
II Sensor Installation:
The Sentek Door / Window Sensor is a wireless, battery powered,
Z-Wave compatible reed sensor. Each time its two parts, i.e. the
sensor's body and a magnet separate, a radio signal is sent. In
1.Connect Sentek Door/Window Sensor according to the
addition the Sentek Door / Window Sensor supports one DS18B20
appropriate diagram (if necessary)
temperature sensor and has one potential free input.
2. Place battery inside the Sensor's casing,
The Sentek Door / Window Sensor is designed for use with scenes in
3. Include into the Z-Wave network.
home automation systems, alarm and surveillance systems and
4. Install Sentek Door/Window Sensor observing diagram 4,
everywhere else where information related to opening / closing of
doors, windows, garage gates, etc. is needed.
EXPLANATION OF CONDUCTOR MARKINGS:
TMP - Tamper button. Detects removal, tampering etc. Used also
Technical data:
as a service button, to include/exclude the device to/from the
Z-Wave network,
IN - Potential-free input,
Power supply single ER14335 (1/2AA) 3,6V
TP – (TEMP_POWER) - Power out for DS18B20 temperature
battery
sensor,
TD – (TEMP_DATA) - Signal terminal for DS18B20 temperature
Inputs single, potential-free
sensor,
GND – (GROUND) - Ground terminal.
Supported temperature single, DS18B20
sensors
i
Operating temperature 0 - 40 °C
Radio protocol Z-Wave
i
Radio frequency 868,4 MHz EU;
908,4 MHz US;
921,4 MHz AU/NZ;
869,2 MHz RU;
Range up to 30m indoors, depending on
building materials used and the
building structure
i
Dimensions (L x W x H) 76 x 17 x 19 mm
Technical information:
USING IN INPUT:
•
Controlled via. any Z-Wave compatible controller.
• Door/window opening detected through Sensor's body and a
magnet separation,
i
• Quick installation - easily mounted on doors, windows, garage
gates, roller blinds, using double sided adhesive tape or screws,
• Compatible with DS18B20 temperature sensors,
• When connecting DS18B20 use single wire lead, no longer than 20
meters.
• May be connected to a switch via potential-free IN input.
USING DS18B20 TEMPERATURE SENSOR:
HINT
i
i
Connections should be made specifically
according to the diagrams presented in this
manual. Incorrect connections may be hazardous
or lead to device damage.
I General Information on the Sentek Sensor: ANTENNA ARRANGEMENT INSTRUCTIONS:
ZC-100 is a sensor that does not require any additional conductors;
i
it is based on the Z-Wave technology. Sentek offers a wide array of
advantages in comparison to other, similar systems. In general,
radio-based systems establish a direct connection between the
receiver and the transmitter. The radio signal is attenuated by every
obstacle along its path (in the household e.g. walls, furniture, etc).
In the worst case the radio system ceases to function.
i
(TOP VIEW)
(BOTTOM VIEW )
NOTE!
To ensure the most accurate position detecting
always install the magnet in relation to the Sensor's
body, as shown in diagram 4.
(TOP VIEW)
NOTE!
ZC-100 Door/Window Sensor has two TMP buttons
- inside and underside the casing.
During normal operation both TMP buttons must be
secure. Do not use the sensor with opened casing.
NOTE!
TMP button, located on the underside of the
device, has two functions:
1. sets a device into the learn mode (Include to /
Exclude from a Z-Wave network),
2. tamper button. After correct installation (fig. 5
and 6), removing the whole sensor from its location
or opening its casing may release the TMP button
and trigger an alarm. If the TMP is to serve as a
tamper button, association for II-nd association
group must be configured (optionally, use the
Parameter 13).
The ZC-100 Door/Window Sensor has a one,
potential-free IN input. IN input status may be
modified through the Sensor itself or by sending
GND signal to IN (diagram 3). If the Door/Window
Sensor will be used only as a binary sensor, do not
install the magnet.
(TOP VIEW)
The DS18B20 temperature sensor may be installed
anywhere where very precise temperature readouts
are necessary. If adequately protected, the
DS18B20 sensor may be installed in humid
conditions, under water, sealed in concrete or placed
under the floor.
The antenna should be placed above the battery.
Never cut, shorten or bend the antenna. Its length is
suited ideally to the band at which the system
functions.
Metal surfaces in close vicinity (e.g. metal switch
boxes, metal door trims) may impair the reception
capability!
TP (VDQ)
MAGNETIC
SENSOR

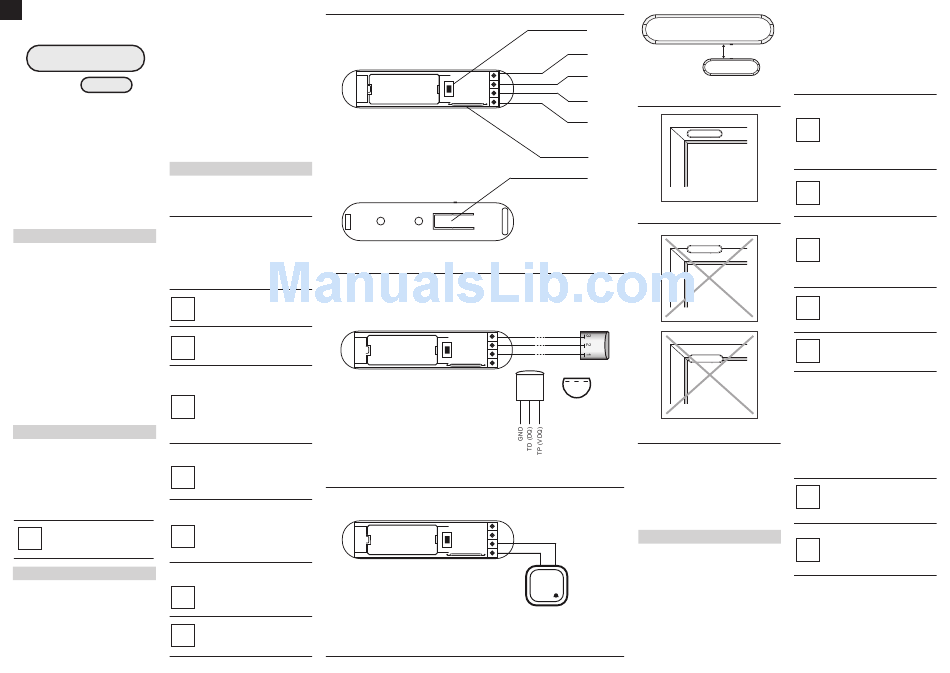

Diagram 1 - General
max 30m
TP (VDQ)
TD (DQ)
GND
TMP
DS18B20
1
1 2 3
(VIEW FROM BELOW)
Diagram 2 - Connection to DS18B20 sensor
GND
IN
TMP
BELL-PUSH
Diagram 3 - Example connection - momentary switch
TMP
max. 5 mm
TD (DQ)
Diagram 4 - Correct positioning of the Sensor
GND
and the magnet
IN
TMP
Diagram 5 - Correct sensor installation
DS18B20
2 3
Diagram 6 - Incorrect sensor installation
GLOSSARY OF TERMS:
• INCLUSION - the device sends out a Node Info frame, which
makes it possible to add it to Z-Wave network.
• EXCLUSION - remove the device from Z-Wave network.
• ASSOCIATION - controlling other devices included in Z-Wave
network.
III Sensor Start-up
1.Installation of the Door/Window Sensor
STEP 1
Install the device observing the Figure 4 for correct positioning of
the Sensor and the magnet. Close the Sensor's casing.
[Inclusion/Exclusion] of the ZC-100 Door/Window Sensor [to/from]
the Z-Wave network.
STEP 2
The ZC-100 must be in range of the Z-Wave controller,
because the procedure of inclusion to the Z-Wave network
requires direct communication with the controller.
STEP 3
Locate TMP button, which allows for proper inclusion of device.
STEP 4
Set the Z-Wave controller to the inclusion or exclusion mode
STEP 5
The ZC-100 Door/Window Sensor is added to (or deleted from) the
by quickly pressing the TMP button three times (the button is
located on the underside of the device, inside its casing).
STEP 6
Correct inclusion of the device to the network will be signalled by
the Z-Wave controller.
BATTERY USE:
The ZC-100 Door/Window Sensor's battery life is up
to 2 years, on default settings.
i Current battery level is displayed in the Z-Wave
controller's configuration interface. If a battery icon
turns red, it means the battery needs replacement.
In order not to trigger an alarm when replacing the
battery, II-nd association group must be deleted
and the Sensor's configuration must be changed to
default, prior to the battery change.
NOTE!
i
Door/Window Sensor is equipped with a built-in
LED. LED blinks each time Door/Window Sensor
changes its state. LED blinking 5 times = correct
inclusion and exclusion.
NOTE!
Every time any changes are made to the
configuration of TP and TD lines (1-wire), i.e. when
i
DS18B20 sensor is connected/disconnected, it is
necessary to execute the procedure of exclusion
and repeated inclusion of the sensor module to the
Z-Wave network. The system will enter into the
learning mode only after connected DS18B20
sensor has been detected (about 10 s).
i
NOTE!
Do not connect sensors other than DS18B20 to the
1-wire line (TP and TD terminals).
i
NOTE!
It is prohibited to connect the TP and TD lines to
devices not compatible with the 1-wire protocol.
2. Resetting the z Z C-100 Door/Window Sensor
There is one way to reset the ZC-100 Door/Window Sensor. The
procedure cleans its EPROM memory, including the main controller
and Z-Wave network data.
To reset the Sentek Door/Window Sensor please follow below
instructions:
1) Pressed the TMP button more than 5 seconds.
2) Led start blinking.
3) Release the TMP button.
4) Reset is performed.
i
NOTE!
Use reset precedure only in the event that network
primary controller is missing or otherwise inoperable.
NOTE!
Resetting the device memory doesn't remove it
i
from the Z-Wave network's main controller
memory. To be able to re-include the device into the
Z-Wave network please exclude it first. Exclusion
may be performed either before or after the reset
procedure.
3. Controlling the z Z C-100 Door/Window Sensor with
Z-Wave network Controller
The Door/Window Sensor is a multifunctional device. This means
that it is equipped with an independent input circuit and a 1-wire bus
allowing it to be connected to a DS18B20 temperature sensor. As a
result, each device is represented by an independent icon in the
Z-Wave System.
