Downspout
Inlet Screen
Elbow Vents
HOGs
Connectors
Outlet
YOU WILL NEED:
Level
Adjustable Wrench
Plumbers
Tape
90° 3½"O.D.
(for horizontal
installation)
Saw
Please consult a qualified plumber if unsure about correct installation procedure. Rainwater HOGs must be installed in accordance with these instructions. Rainwater HOG LLC takes no responsibility for any
loss or damage caused by the use of the HOG and/or accessories. In the interests of continuing product improvement, specification may change without notice.
Outlet
Connectors
HOGs are designed to connect together
using the supplied parts. Threaded Brass
inserts at the top and bottom of each HOG
allow secure attachment of Connectors,
Vents and Outlets.
The 1 inch openings are plugged. Remove
the plugs from the holes you wish to use for
connections. Screw in the Connectors and
Elbow Vent, sealing the threads with
plumbers tape to prevent leaks. Screw the
Elbow
Outlet to the end Connector. Saw the top off
the first HOG and cover with Inlet Screen.

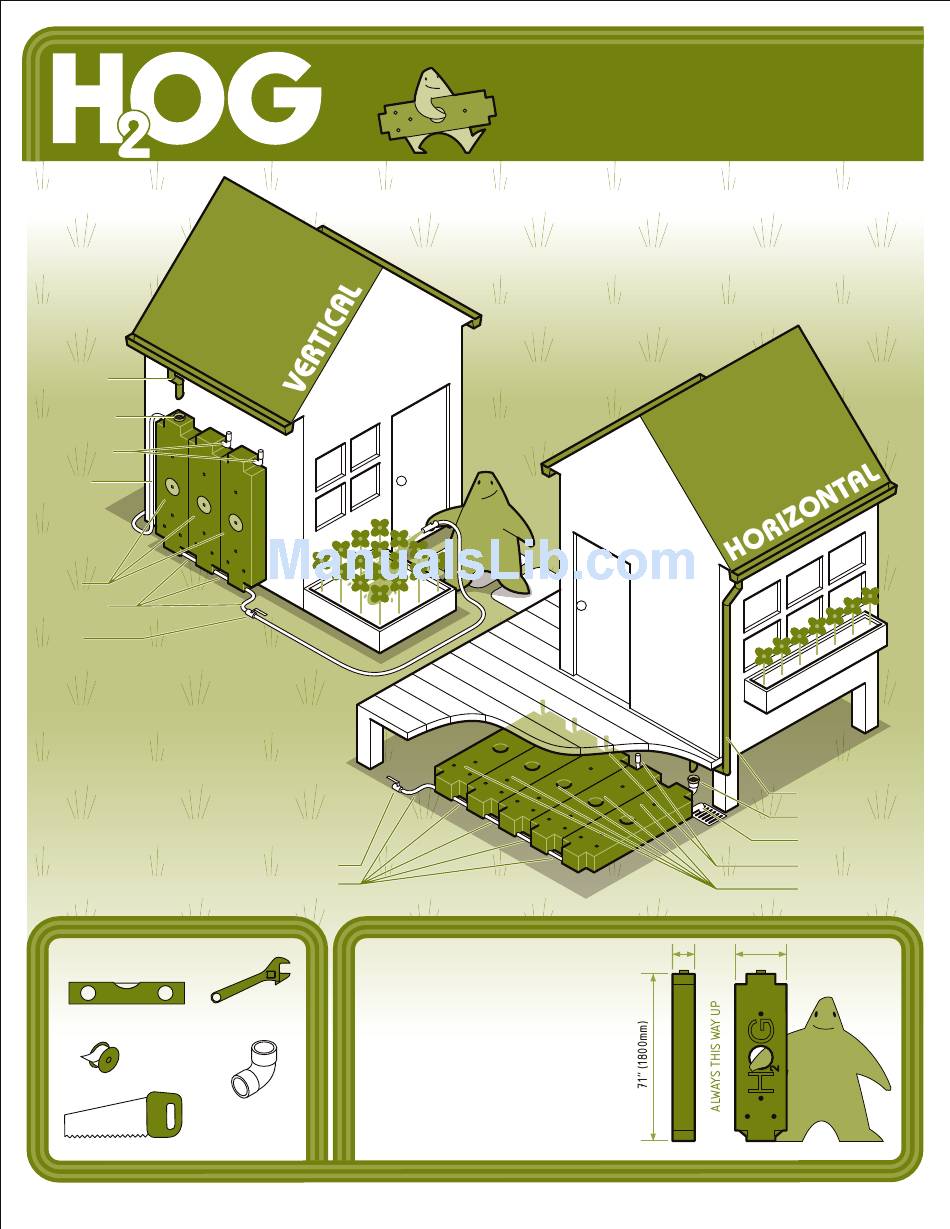

INSTALLATION GUIDE
9½"
(240mm)
Side
22-SEP-08
H
OG rainwater rescue solution
2
Downspout
Inlet Screen
Overflow
Elbow Vents
HOGs
20"
50 gallon
(508mm)
(189 litre)
capacity
Top
Bottom
Front
