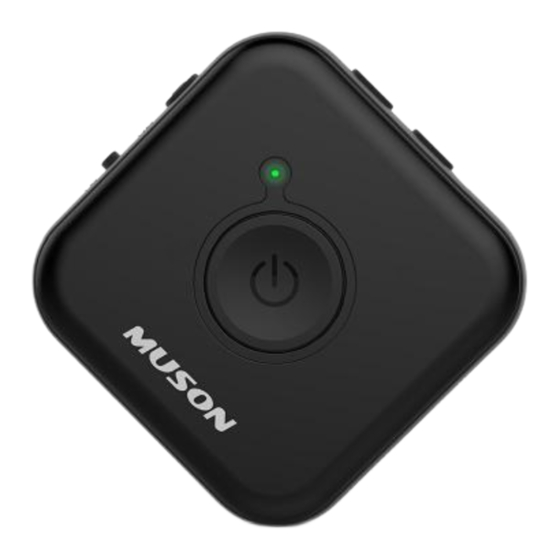

Bluetooth 4.1 Transmitter and Receiver 2-in-1 Hands-free
Adapter
Specifications:
Bluetooth Version: 4.1
Frequency Range: 2.4GHz
Output Power Category: Class2
Bluetooth Mode: HFP/HSP/A2DP/AVRCP
Bluetooth Range: up to 30feet
Power Supply : Li-Po 170mAh
working Current: 22mA (MAX)
Charge Voltage: DC 5.0V
Product Diagram
1.Power ON/OFF;Pause/Play;Answer/Hang Up
2. Indicator Light
Advertisement
Table of Contents
Summary of Contents for MUSON MK2
-
Page 1: Specifications
Bluetooth 4.1 Transmitter and Receiver 2-in-1 Hands-free Adapter Specifications: Bluetooth Version: 4.1 Frequency Range: 2.4GHz Output Power Category: Class2 Bluetooth Mode: HFP/HSP/A2DP/AVRCP Bluetooth Range: up to 30feet Power Supply : Li-Po 170mAh working Current: 22mA (MAX) Charge Voltage: DC 5.0V Product Diagram 1.Power ON/OFF;Pause/Play;Answer/Hang Up 2. -
Page 2: Receive Mode
3.Next Song/Volume Up 4.Previous Song /Volume Down 5. Microphone 6.USB Charge 7.Receiver/Transmitter Switch 8.Pairing Switch 9. Audio Output/In Power On Long press the button ” ” about 3s ,it will power on automatically,the blue light will flash in receive mode;green light will flash in transmit mode. Power Off Long press the button ”... - Page 3 4. Search for the Bluetooth device " Link-BT4838"and connect to it. 5 Enter the code "0000" if needed. 6. If pair successfully,the indicator will light blue constantly. Connect Two Cellphone 1.Pair the Bluetooth receiver to the first phone. 2. After pair successfully,press the button ” ”...
- Page 4 When you want to end a call ,short press the button ” ” or just hang up your phone. Redialing the last called number Double press the button ” ” to redial the last called number in your first phone; Double the button ”...
- Page 5 etc.),make sure Bluetooth receiver is within 1 meter to this transmitter,it will pair automatically. 5. If pair successfully,the indicator will stay on green. 6.Now you can enjoy music on your Bluetooth-enabled equipment from your media play device! Pair to Two Bluetooth Receiver 1.Pair to the first Bluetooth Receiver;...
- Page 6 2.Bluetooth signal can be blocked by surrounding objects and reduce the audio quality,please put it in the right position without barrier between adapter and your phone(or other devices). 3.If you can not pair to your device according to the user manual,please long press the Pairing Switch for 8s till red light flash once after power on,then try to pair again.
- Page 7 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
