STEP 5
When bolted sides are fitted, stand the
assembly upright.
Fix the back of the seat to the posts of
the side sections
as in Fig.8.
STEP 6
Now fix the Back Lattice (E) above the
A
seat back using two screws (z) either
side. See Fig.9.
FINALLY..
Fix the side sections to the roof
H
assembly using screws (x) as shown
below, ensuring that the roof is centred
and lined up evenly upon your arbour.
K
x
F
x
A
A
=
=
A
POSTS
B
TRELLIS SECTIONS
C
SEAT BACK
D
SEAT
E
BACK LATTICE PANEL
F
ROOF BEAMS
G
LONG ROOF SECTION
H
SHORT ROOF SECTION
J
ROOF SUPPORT
K
FINIAL
AFTERCARE
To ensure longevity of your structure it is recommended that it is treated with a wood preservative on a yearly basis.
C
E
x
z

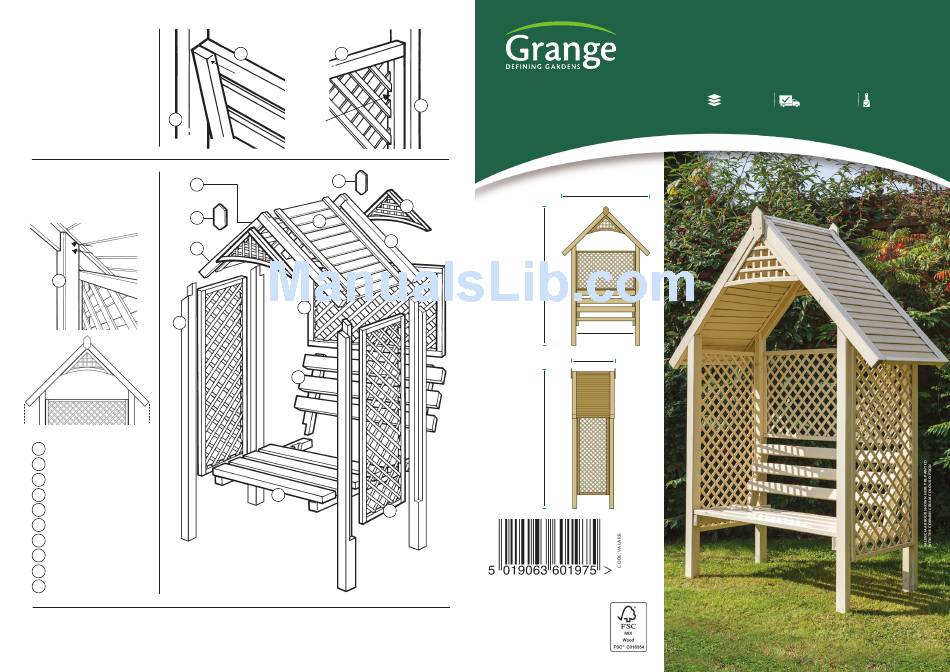

Fig.8.
K
J
G
F
E
C
D
B
A
Fig.9.
174cm
PLAN
274cm
120cm
74cm
274cm
©2015 Grange Fencing Ltd All rights reserved.
In line with the Company's policy of
continuous product development, the right
is reserved to change and improve product
design without prior notice.
All products and related emblems featured are
trademarks of Grange Fencing Ltd.
www.grangefen.co.uk
VALENCIA ARBOUR
VALARB - 274cm [H] x 174cm [W] x 74cm [D]
Self-Assembly required
Home Delivery available
Pre-Painted available
