Description

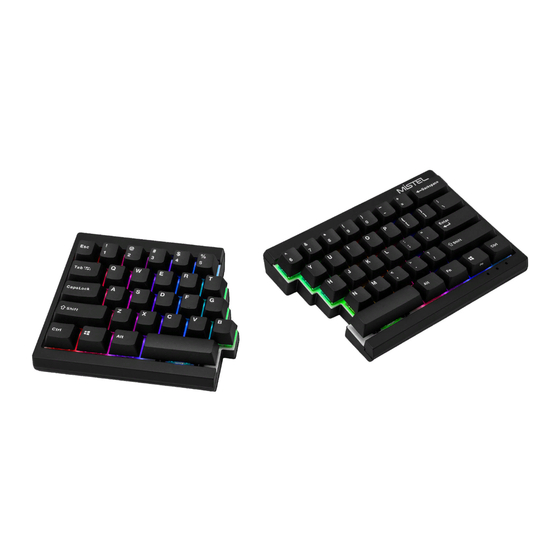

The Barocco is a split keyboard. It is ergonomically designed to t in any
type of environment. Its ergonomic split design increase your comfort while
typing and help to signicantly reduce RSI (Repetitive Strain Injuries).
Specication
Model name: Barocco
Model number: MD600 / MD600 RGB
Keyboard layout: ANSI / ISO
Number of Keys: 62/63 keys
Keycap: PBT keycap (LED backlit keyboard with different keycap)
Keyswitch: Cherry MX switch
Macro Function: Yes
Polling rate: 1000hz
Matrix: NKRO
Media keys: Yes
Onboard memory: Yes
Dimensions: L295.5 X W124.5 X 39.5mm
Weight: 485g
Layouts: 3 Built-in layouts (QWERTY - DVORAK - COLEMAK)
Package accessory
1. Keyboard x 1
2. Mini USB Cable x 1
3. Micro USB Cable x 1
4. Orange color enter key x 1
5. Mistel ABS/TPR Plastic double shot keypuller x 1
Connection with Number pad
PC
PC
1
2
3
1
2
can connect with
Number Pad can connect with
How To Upgrade The Firmware (Only available on Windows OS):
．Visit the Firmware Upgrade section of our website at
https://www.mistelkeyboard.com/rmware-upgrade
．Select the model you want to upgrade
．Press the download button
．Download the .exe le
．Connect your MD600/600RGB to your computer (see the Keyboard Setting
section of the manual to learn how)
Open the .exe le, the window will display the current rmware installed on
your keyboard. Press the "Ok" button to begin the upgrade, once completed
close the window. Your MD600/600RGB rmware has been updated.
Warranty card
This warranty does not cover problems or damage resulting from, but not limited
to, any of the following:
．Wear and tear associated with normal use.
．Any unauthorized modification or repair, accidental damage or disassembly.
．Removal of any manufacturer label(s) or sticker(s).
．Any improper operation, including any use not in accordance with any supplied
product instructions.
．Connection to any improper voltage supply.
．Any other cause which does not relate to a product defect in materials or
manufacturing.
．Counterfeit products; (MISTEL, at its sole discretion, determines were not
manufactured by MISTEL or any of its authorized manufacturing partners).
RMA services contact : services@mistelkeyboard.com
www.mistelkeyboard.com
Number Pad
Micro USB
DREAMING ON YOUR FINGERTIPS.
Mini USB
3
KEYBOARD
MD600
/
MD600 RGB version

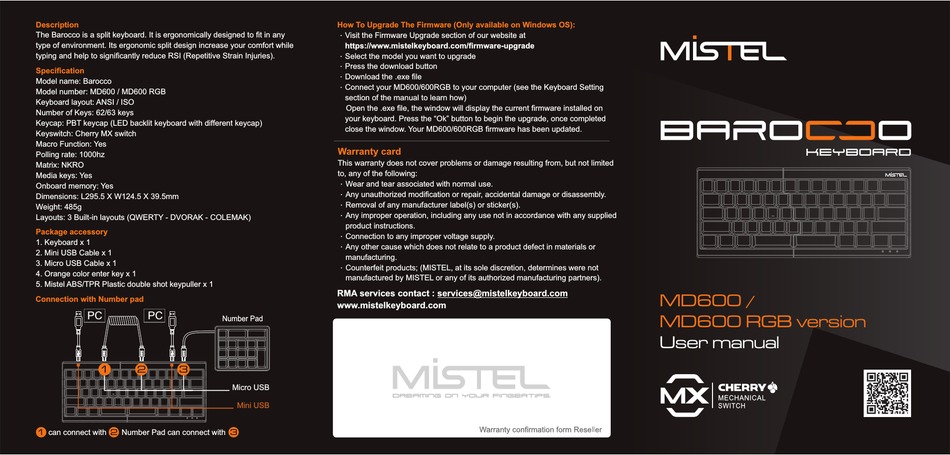

User manual
Advertisement
Table of Contents
Related Manuals for MISTEL Barocco MD600 RGB
Summary of Contents for MISTEL Barocco MD600 RGB
- Page 1 2. Mini USB Cable x 1 manufacturing. 3. Micro USB Cable x 1 ．Counterfeit products; (MISTEL, at its sole discretion, determines were not 4. Orange color enter key x 1 manufactured by MISTEL or any of its authorized manufacturing partners).
- Page 2 Keyboard setting PN + + = Display the customized single row 2. If you want to reset all macro keys from all layers, press the 2 Alt keys for 1. Please use the Micro USB cable to connect the right and left side of the 3 seconds, the keyboard will go back to original factory settings PN+V= reduce brightness keyboard rst.
