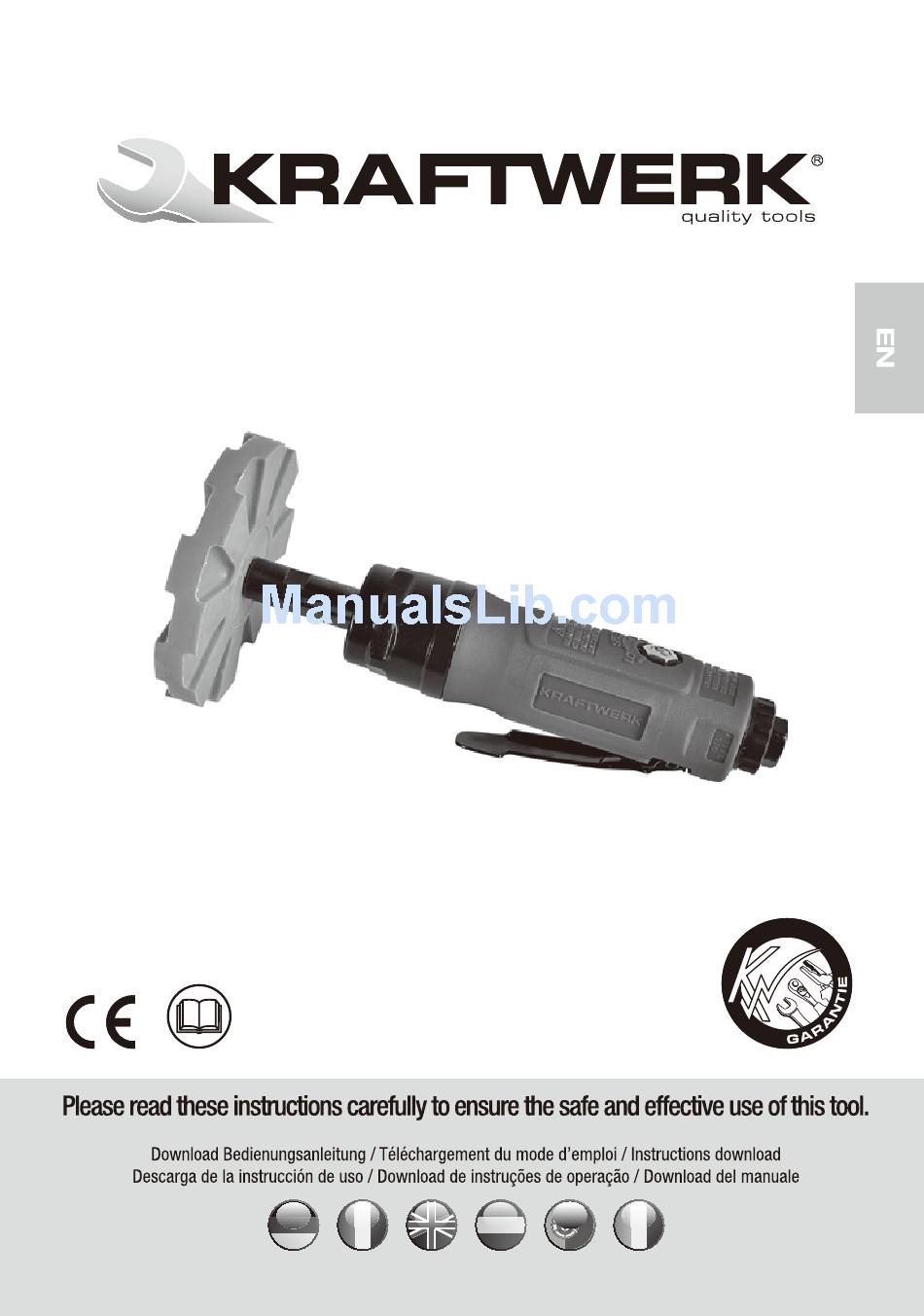

- Page 1 Using-Instructions Air eraser Art. 3843 www.KRAFTWERKtools.com...
- Page 3 FEATURES •Ultra-accurate concentricity •Patented ergonomic grip handle-textured rubber grip handle helps ease user’s tiredness, maintains a comforable temperature holds and insulate vibration •Power/Speed regulator allows for easy RPM adjustment Twin-Bearing design keeps spindle run smoothly Operator’s Instruction 1. Cautions for use 1-1 Air pressure Maximum performance is displayed at the proper sanding speed, obtainable at a gauge pressure of 6.2 bar.
- Page 4 The approved eye protector, ear-muff, mouth-muffle, and gloves should be worn when operate this tool. The working place shall be well ventilated. Release the on-off device in the case of energy supply failure. 2. Operation, adjusting and replacing method 2-1 On-off device To operate this tool just push the lever toward the tool itself.
- Page 5 3-3 Disposal Before disposing of damaged tool, check with your state Environmental Protection Agency to find out about special restrictions on the disposal of tool or return them to a KRAFTWERK certified service center for recycling. 3-4 Ordering service parts...
- Page 6 Art. 3843 Air eraser Free Speed (RPM) 2,600 Air Pressure (PSI) Air Consumption (CFM) Air Inlet (NPT,PT) 1/4” Hose Size (INCH) 3/8” Overall Length (INCH) 8.8” (225 mm) Horsepower (HP) 0.45 Test result according to EN ISO 11148-9 Art. Vibration...
- Page 7 Art. 3843 Art. Description Art. Description 3841-01 SCREW 3841-19 ROTOR BLADE 3840-02 O-RING (P12) 3843-20 ROTOR (6T) 3840-03 O-RING (P8) 3841-21 CYLINDER 3841-04 AIR REGULATOR 3841-22 CONE MUFFLER SPRING FRONT PLATE 3840-05 3843-23 3840-06 VALVE STEM BUSHING 3840-25 BEARING (608ZZ)
-
Page 8: Risk Of Fire Or Explosion
WARNING RISK OF EYE OF HEAD INJURY WHAT COULD HAPPEN HOW TO PREVENT IT Air powered equipment and power tools are capable of Always wear ANSI approved Z87.1 safety glasses propelling materials such as fasteners, metal chips, with side shields. sawdust and other debris at high speed which could Never leave operating tool unattached. -
Page 9: Risk Of Injury
WARNING RISK OF INJURY WHAT COULD HAPPEN HOW TO PREVENT IT A tool left unattended, or with the air hose attached, can Remove air hose when tool is not in use and store be activated by unauthorized persons leading to their tool in secure location away from reach of children injury or injury to others. -
Page 10: Warranty
WARRANTY We do not take responsibility for any damage caused by misuse. CUSTOMER SERVICES Contact your local importer of your specialized dealer to obtain address of our service department. You find our partners under www.KRAFTWERKtools.com... - Page 12 KRAFTWERK Europe AG KRAFTWERK Sàrl. Mettlenbachstrasse 23 25, rue du Stade CH-8617 Mönchaltorf F – 67870 Bischoffsheim Switzerland France Tel. +41-44 949 40 50 Tel. +33-388 48 64 50 www.KRAFTWERKtools.com...
