Merlin ProCam Lite Instruction Manual

ProCam Lite
Capture & Share Your World in Ultra HD
Thank you for purchasing this Merlin Product. Please read the instruction
manual carefully before using the product.
The documentation provided will allow you to fully enjoy all the features
this unit has to offer.
Please save this manual for future reference.

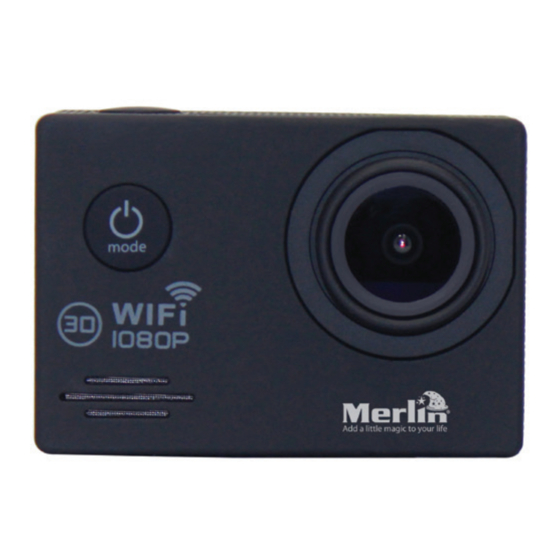

Product Interface:
1 Navigate Up/Wi-Fi/Zoom In
2 Power/Mode Button
3 Navigate Down/Zoom Out
4 Camera Lens
5 Record Button
6 microSD Card Slot
7 Micro USB Port (Charge & Sync)
8 Micro HDMI Port
9 Battery Door
10 Battery Door Release Button

Button Functions:

Button Function
Power/Mode Button Turn Camera ON/OFF; Select
Mode
Record Button Start/Stop Recording
Up Button Navigate Up
Down Button Navigate Down
Instructions:
1) Press the Power/Mode button once to turn ProCam Lite on.
Note: Please charge the device before first use.
2) The camera doesn't have built-in memory, and needs a
microSD card for saving recordings. Insert a microSD card
(64GB max.) in the slot at the bottom of the camera
Note: Please use a Class 10 TF card and ensure that the card
has been formatted before inserting it in the camera.
3) The camera has three recording modes (Video, Photo, and
Slow-Motion) that can be switched by pressing the
Power/Mode button once.
4) To start or stop recording, press the Record button once.
Note: Use the included accessories to place the camera on a
secure surface. Use the included waterproof case when
using the camera underwater or in wet conditions.
5) You can also control ProCam using the 'XDV' app, available
on Google Play and App Store.
6) To enable Wi-Fi mode in ProCam, press the Up button.
7) Once Wi-Fi mode is enabled, the LED Screen will display the
default password (123456789). In your smartphone's Wi-Fi
settings, find and connect with 'ProCamLite' using the
default password.
8) Once connected, run the 'XDV' app and you can now view
live feed from the camera on your smartphone.
9) To charge ProCam, use the included mini USB cable to
connect ProCam Lite to a standard USB charging port
(1A Max) or adapter.
Description
Press and hold to turn camera on/off;
Press when camera on to switch between
shooting modes
Confirm selection in Settings menu
Move up in menu; Press & hold for zooming in;
Press once to turn camera Wi-Fi on -
Enter Settings menu; Move down in menu
Note: Keeping the camera switched off while charging will
increase the charging rate.
10) To transfer files from the camera, use the included mini USB
cable to connect ProCam Lite to your PC or laptop, or you can
remove the TF card and use a card reader to access your files.
Camera Settings Menu:
Video
2.7K@30fps
1080p@30fps
720p@60fps | 720p@30fps
Time Lapse: Off | 0.5 second | 1
second | 3 seconds | 5 seconds | 10
seconds | 30 seconds
Cyclic Recording: On | Off
(When on, recordings will be split into
5-minute clips. When the TF Card is full,
the oldest recordings will be overwritten.
Suggested use in vehicle monitoring
such
photography such as drones.)
Record Audio: On | Off
USB Power Up Auto Record: On | Off
(When on, ProCam will automatically
start recording when connected to an
external
Suggested use in vehicle monitoring or
aerial photography.)
Wide Dynamic Range: On | Off
(Suggested use in cloudy or dark
environments.
overexposure in bright environments.)
Photo Resolution: 16MP | 12MP |
8MP | 5MP | 2MP
Burst Photo Mode: On | Off
(Captures 11 photos in 1 second)
Continuous Photo Mode: Off | 3
seconds | 5 seconds | 10 seconds | 30
seconds
(Continuously captures photos with set
interval)
ISO: Auto | 100 | 400 | 1,600
(In dark environments, lower the ISO,
better the images.)
Sharpness: High | Medium | Low
(In dark environments, low sharpness is
recommended.)
Color Adjustment: Standard | Vivid
(If videos will undergo post-production,
recommended mode is standard.)
Exposure Level: High | Medium | Low
(Lower exposure value will result in more
detailed but darker images.)
Metering: Average | Center | Spot
Resolution:
4K@30fps
| 1080p@60fps
| 720p@120fps
as dash cams or aerial
power source via USB.
Might cause
|
|
|
