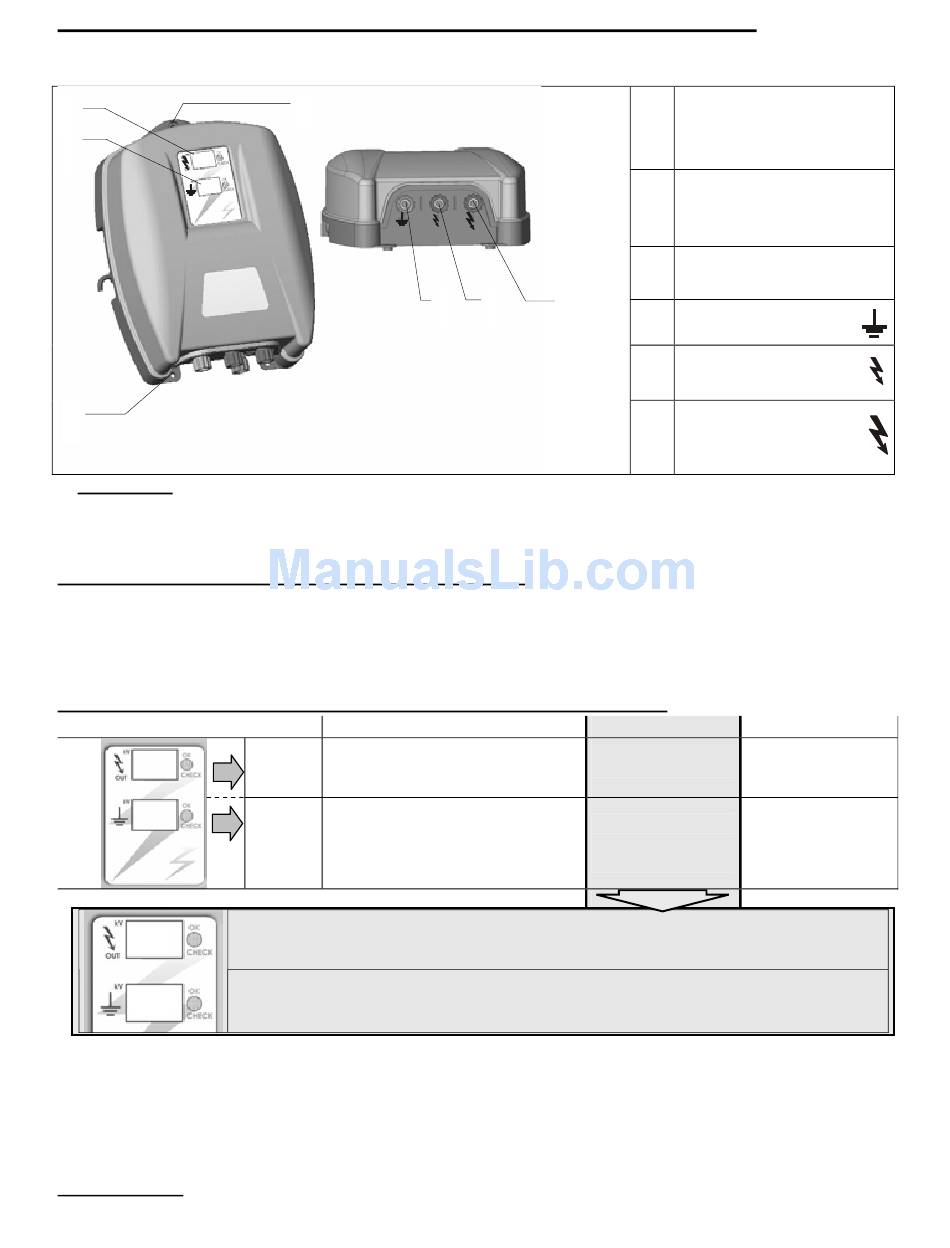

Specific Operating Instructions for Fence Controller AG M4
Warning: RISK OF ELECTRIC SHOCK – read and follow all instructions an
INSTRUCTIONS, including general instructions.
1
2
10,0
0,5
3
a.) Installation
Fastening holes (3) are provided for wall mounting. The energizer must be mounted against a vertical,
fireproof wall with the connections at the bottom, see above picture, left part. If installed outdoors, the
energizer must also be protected against rain and direct sunlight.
b.) Functional description of the fence energizer controller
Put energizer into service WITHOUT fence system. Random values are shown on the displays and the
indicator lights start flashing green or red. The values are not relevant as long as the fence system is not
connected. The energizer is ready for use.
If after connecting the energizer no values are shown on the displays or the indicator lights do not flash, check
the supply voltage and/or the power cable. If no fault is found, have the energizer checked by a technician.
c.) Functional description of the energizer with CONNECTED fence system
Display
10,0
0,0
Fence not OK; output voltage
≤3,5
Remedy:
See fault finding in enclosed instruction manual (Figure 2; p.5)
Earth not OK; voltage on earth electrode
≥1,0
Remedy:
See fault finding in enclosed instruction manual (Figure 2; p.5)
The energizer can be operated with a SEPARATE fence system connected to each fence connection (5 – 6).
If the indicator light flashes faster than once per second, the energizer must be disconnected at once and
checked by a technician before it can be used again.
If both fence outputs are used, the display (1) and the corresponding indicator apply to the reduced energy
output (5).
This equipment carries a limited 3-year warranty in accordance with our Exclusive Limited Warranty; Limitation
of Remedies. Please see the attached Operating Instruction Manual for warranty terms and conditions.
SERVICE Addresses:
KENCOVE Farm Fence Inc.; 344 Kendall Lane; Blairsville, PA 15717
3
Mains plug used as ON / OFF!
Connection to
Not suited for use in barns as
cattle trainers!
> 3.5 kV
Output
(e.g. 4kV = 4000V) indicator
voltage
light flashes green
< 1.0 kV;
Earth
indicator light
voltage
flashes green
5
4
6
115V ~!
OK
indicator light
indicator light
3.5 kV
1 kV
SAVE ALL
d
Output voltage in kV
1
LCD display with
indicator light
Earth voltage in kV
2
LCD display with
indicator light
3
Fastening holes
4
Earth connection
Fence connection
5
with reduced energy
Fence connection
6
with maximum energy
CHECK
IDEAL
3.5 kV
6.0 – 10.0 kV;
≤
indicator light
flashes red
flashes green
1.0 kV;
0.0 kV;
≥
indicator light
flashes red
flashes green
