Merlin LCD Pocket Projector Manual

LCD Pocket Projector
Project from the Palm of Your Hand
Thank you for purchasing this Merlin Product. Please read the instruction
manual carefully before using the product.
The documentation provided will allow you to fully enjoy all the features
this unit has to offer.
Please save this manual for future reference.

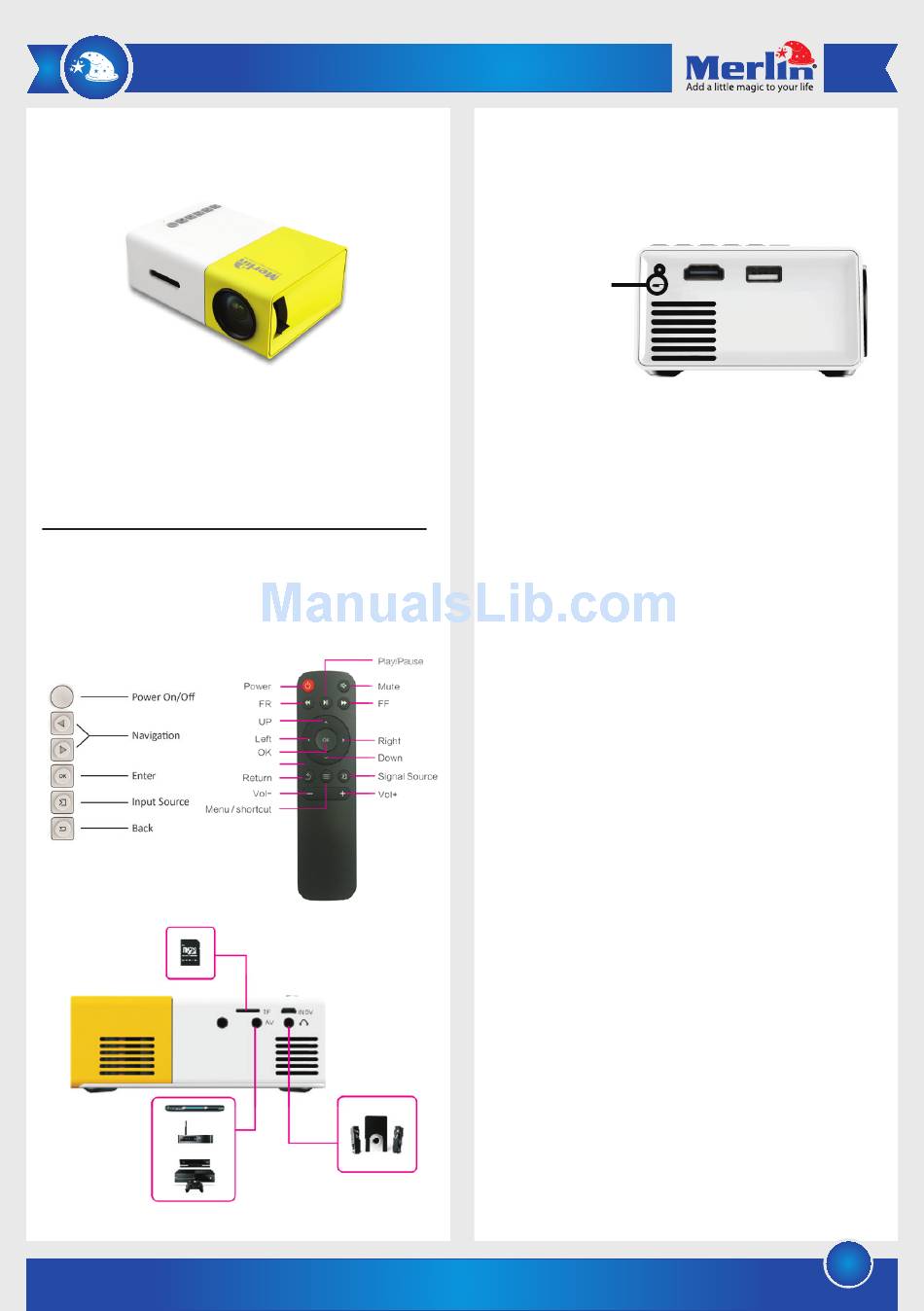

Product Interface
Instructions
1) Slide the Power Selector button to the right to use the
projector's built-in battery or to the left to power the projector
using DC adapter.
Power Selector
2) Press the Power button on the remote control or on the
projector to turn the projector on.
3) Press the Input Source button on the remote or on the projector
to switch between different input sources: PC-RGB, HDMI, AV,
USB, and SD CARD.
4) To connect your video source via HDMI, use an HDMI cable to
connect it to the HDMI port on the side of the projector and
select HDMI as the input source. (Supported formats: 576p,
480p, 720p, 1080p, 640x480, 800x600, 1024x768,
1280x1024, 1280x720, 1440x900, 1920x1080, 1366x768,
1280x800, 1440x960, 1600x1200, and 1680x1050)
5) To view media stored on your flash drives, insert flash drive in
the USB port or microSD card in the SD card slot on the side of
the projector and select USB or SD CARD as input source.
6) Connect your video source using an AV cable at the back of the
projector and select AV as the input source. (Supported AV
formats: NTSC and PAL)
7) Adjust focus using the "Focus Wheel" located on the left side
of the projector.
8) Press the Menu button on remote control to change the
projector's settings.
9) Use the audio output port to connect the projector to an
external audio system or headset.
10) To charge the projector, connect the included adapter to the
charging port at the back of the projector.
11) The projector can display media just about anywhere. However,
for best results, we suggest you find a light-colored wall
(preferably smooth and white).
Maintenance
1) Fully charge the device's battery before first use.
2) Do not apply excessive force on the Focus Wheel or when
inserting cables.
3) Connect cables in the right direction.
4) Do not block the vents located on the sides of the projector to
avoid overheating the unit.
5) Do not pour water or other liquids on the device.
6) Use only specified chargers that meet the device's voltage
rating (12V/2A).
