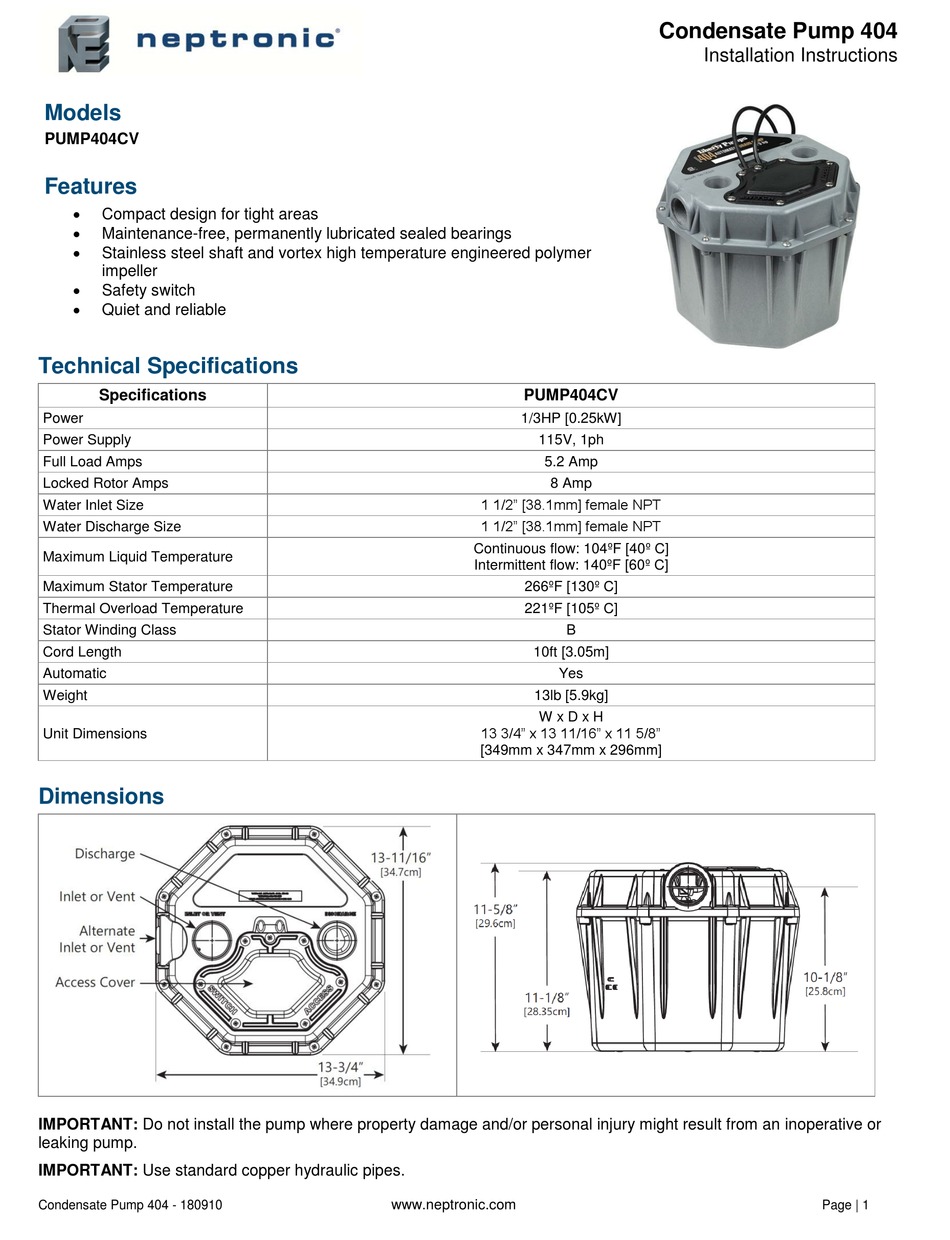

Neptronic PUMP404CV Installation Instructions

Models
PUMP404CV
Features

Compact design for tight areas

Maintenance-free, permanently lubricated sealed bearings

Stainless steel shaft and vortex high temperature engineered polymer
impeller

Safety switch

Quiet and reliable

Technical Specifications

Specifications
Power
Power Supply
Full Load Amps
Locked Rotor Amps
Water Inlet Size
Water Discharge Size
Maximum Liquid Temperature
Maximum Stator Temperature
Thermal Overload Temperature
Stator Winding Class
Cord Length
Automatic
Weight
Unit Dimensions
Dimensions
IMPORTANT: Do not install the pump where property damage and/or personal injury might result from an inoperative or
leaking pump.
IMPORTANT: Use standard copper hydraulic pipes.
Condensate Pump 404 - 180910
PUMP404CV
1/3HP [0.25kW]
115V, 1ph
5.2 Amp
8 Amp
1 1/2" [38.1mm] female NPT
1 1/2" [38.1mm] female NPT
Continuous flow: 104ºF [40º C]
Intermittent flow: 140ºF [60º C]
266ºF [130º C]
221ºF [105º C]
B
10ft [3.05m]
Yes
13lb [5.9kg]
W x D x H
13 3/4" x 13 11/16" x 11 5/8"
[349mm x 347mm x 296mm]
www.neptronic.com
Condensate Pump 404
Installation Instructions
Page | 1
