Thank you for purchasing our ride on vehicle, we wish your child
enjoy it for years to come. Please read the instruction guide carefully
before using it.
SPECIFICATION
NAME
SPEC
Battery
6V4AH
Motor
6V 15W
Age
3-5 years
Max. Load
25kg
Size
740X375X576 mm
Speed
2.5 km/h
Time for use
Charge 8-12 hours ，use 1-2hours
Charger
Output DC6.0V 0.6A
Fuse
20A
NOTES OF CHARGING
1. Before your first driving,charge the battery for 12 hours before the vehicles
first used.
2. Connect the terminal of battery and charger and then plug the charger into
the 230V-240V AC mains socket.
3. Please charge 8-12hrs after driving 1-2hrs. The charging time cannot exceed
20hrs.
4. When the riding speed is slower than the normal level, recharge right
now for 8-12 hrs.
5. If the car has a long time not being used, please fully charge battery,
then charge once per 3 months to extend the battery's life.
6. If the charger is hot(but under 71
7. The socket of the charger cannot have water, or short circuit may happen.
8. The car must use the special charger supplied with it, to avoid damage of the
charger battery and circuit.
9. Battery charging must be performed by adult.
10.Non-rechargeable batteries must not be recharged.
11.Only batteries of the same or equivalent type as recommended are to be
used.
12.Batteries must be inserted with the correct polarity.
13.Exhausted batteries should be removed from the body.
14.The supply teminals must not be short circuit.
15.Do not mix old and new batteries.
Photo 1
cap nut
spring
mud
washer
guard fork
front axle
brake washer
P h o t o 2
head
connector
bolt
开
前 进
停 止
后 退
关
photo 3
tool case
frame
nut ST4.0X22
Trouble Types
Cause Analysis
1.low voltage
2.wheel fixing pin loose
3.battery terminal connector
cannot move
detach
4.battery damaged
5.Electric parts broken
6.motor broken
7.R/C battery no power
1.battery terminal connector
loose
Fail to charge
2.no power
3.charger broken
1.battery is not full
cannot move long
2.battery aging
battery has voice
1.Chemical Reaction
and heat when
charging
1.old battery
2.no power
Speed slow
3.over load
4.road is not level
Noise of gear box
1.gear broken
car shaking
1.loose contact of motor
when moving
2.motor damage
1.loose contact of steering
car moving but
wheel connector
sound/light
function bad
2. sound-light board broken
cannot stop the
1.Electric part damaged
car
If cannot remove the troubles, please contact for repairing sevice.
o
C)while charging, that's normal.
r.
1. Install the front wheel (photo1)
a.Put the front axle through the
mud guard, fork, brake washer,
front fork, mud guard.
b.Put the spring, washer through
both sides of the front axle, then
tighten the nuts.
2.Install the head parts (photo 2)
a.Connect the handle bar
connector to the connector in the
body.
b.Carefully place the wires and
connectors into the boby.
c.Ensure that the wires are not
pinched and push the handle bar
into the body of scooter.
3.Install the tool box(photo3)
a.Pass three bolts through the
holes of tool box and its frame,
then tighten the nuts with a
spanner.
b. Carefully locate the frame into
the body at the rear of the
scooter. Push the top box and
frame completely home until the
locking clips locate.
Removing method
recharge battery
fix the pin again
re-connect
change new battery
repair
repair
change new battery
connect again
connect again
change charger
recharge battery full
change battery
normal
change battery
recharge full
weight should be under
25kg
move on the level road
repair
re-connect
repair
re-connect
repair
repair
I N S T R U C T I O N M A N U A L
PART NAME
Rear Brake disk
1
Manual
8
Battery
Front axis
2
9
Washer
3
Charger
10
Spring
4
Car body
11
Front wheel
Locknut
5
12
Rear wheel
Front Decorative pieces
6
13
Handlebar
7
Front Brake disk
14
P h o t o 4
left shift
right shift
switch
switch
f o r w a r d a n d
ON/OFF switch
b a c k w a r d s w i t c h
P h o t o 5
p e d a l
s w i t c h
P h o t o 6
P h o t o 7
battery
battery
cover board
thermal fuse
1. Must not ride on the street, highway, slope, sand, or any dangerous places.
2. Must ride on even ground.
3. Must ride without overload.
4. Battery charging must be performed by adult..
5. Children's riding must be guided by adults.
6. Do not change the circuit of the vehicle or it's attaching electric equipments.
7. Do not ride in water, or other fluid to the vehicle.
8. Do not push Backward/Forward switch when riding.
9. When meeting barriers, just loose the pedal switch, turn away from the barriers, march
on.
10. Please charge in time when the vehicle runs slowly otherwise life-span of battery will
be reduced.
11. Please charge the battery fully, before keep it for long time then recharge it per 3
months to prolong life-span of battery.
12. Don't ride in a rainy day.
13. Battery, charger, electric wire, plug, enclosure and other parts should be periodically
check for damage, if have damage, and need to repair berore use.
14. Transformers used with the toy are to be regularly examined for damage to the cord,
plug, enclosure and other parts, and that, in the event of such damage, the toy must
not be used with this transformer until the damage has been repaired.
15. The toy is not intended for children under 3 years old.
16. The toy must only be used with the recommended charger.
17. The charger is not a toy.
18. Toys liable to be cleaned with liquid are to be disconnected from the charger before
cleaning.
19.Check the equipped charger periodically and carefully.
20.Check the Harness, Socket, Accessories, and other Components all in good condition
or not, repair or replace them if any problem found.
For the safety of your baby, please take attention about the following:
1. Adult assemble only!
2. Choking hazard small parts,not for children under 3 years old!
3. Don´t give the tool to child in order to avoid open the protector on the top of the
battery.
4. Recharge must be performed by Adult.
5. Keep plastic bags away from child to avoid suffocation.
6. Adult guidance for using.
1.Before assmbling, please check all parts are complete, if there is any lack, please
contact us.
2.Please inspect all function/parts when assemble/use often.
3.Please make cleaning treatment for this product termly and don't destroy any parts.
4.In order to keep your child safe, please inspect and maintain car periodically.

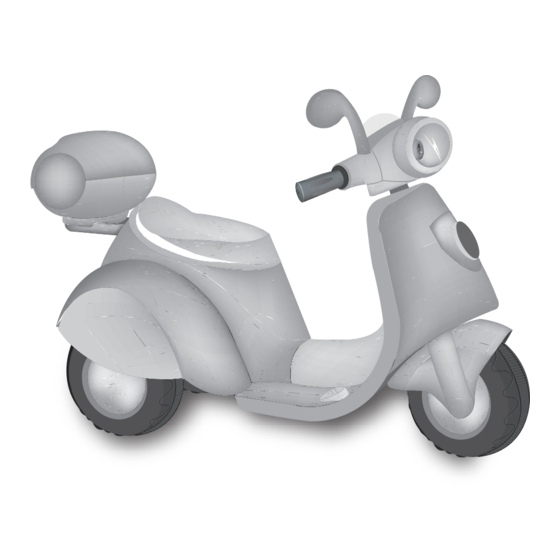

G i r l s M i n i S c o o t e r
W 3 1 3
W i t h f o r w a r d a n d r e v e r s e d r i v e
M u l t i f u n c t i o n s t e e r i n g / h a n d l e b a r s w i t h
s o u n d a n d l i g h t f u n c t i o n s
R u b b e r t r e a d b a n d t o p r o l o n g t h e l i f e o f t h e
t y r e s a n d i m p r o v e g r i p
R e a r T o p B o x f o r s t o r a g e
W i n g M i r r o r s
MODEL LW613
Fashonable Magnolia
MANUAL FOR ASSEMBLING
AND USING
Multi-functional tray with music
Vivid engine voices make you feel really
funny
Forward and backward control make you
feel easy
Handle
15
Rearview mirror
16
Seat
17
Tool box
18
Frame
19
1.For the scooter to move forward:
a.Ensure the on/off switch is in the
"1"(on) position
b.Put the forward/Reverse switch to
forward position.
c.Press the pedal switch with your foot
and the scooter will move forward(be
sure the path in front of you is clear
from obstructions).
2.For the scooter to move backward:
a.Ensure the on/off switch is in the
"1"(on)position.
b.Put the forward/reverse switch to
Reverse/backward position.
c.Press the pedal switch with your foot
and the scooter will move in
backward (be sure the path backward
is clear from obstructions).
3.When there is not enough power for
the battery, please charge it in time.
When charging, please take the
saddle off first, unplug the battery
connector ,connect the battery
connector and charger connector,
then the charger can be connected to
AC mains.
4.This product is used the recoverable
over-current fuse. When the current
is more than 20A, it will cut off the
power supply automatically, and will
resume automatically within 5—10
seconds.
