OutdoorRouter WRT4 U Instruction Manual

3g/4g wi-fi router
Hide thumbs
Table of Contents

Advertisement

Quick Links

SKU: WRT4 E/U
3G/4G OUTDOOR ROUTER
Instruction Manual
1.
Introduction

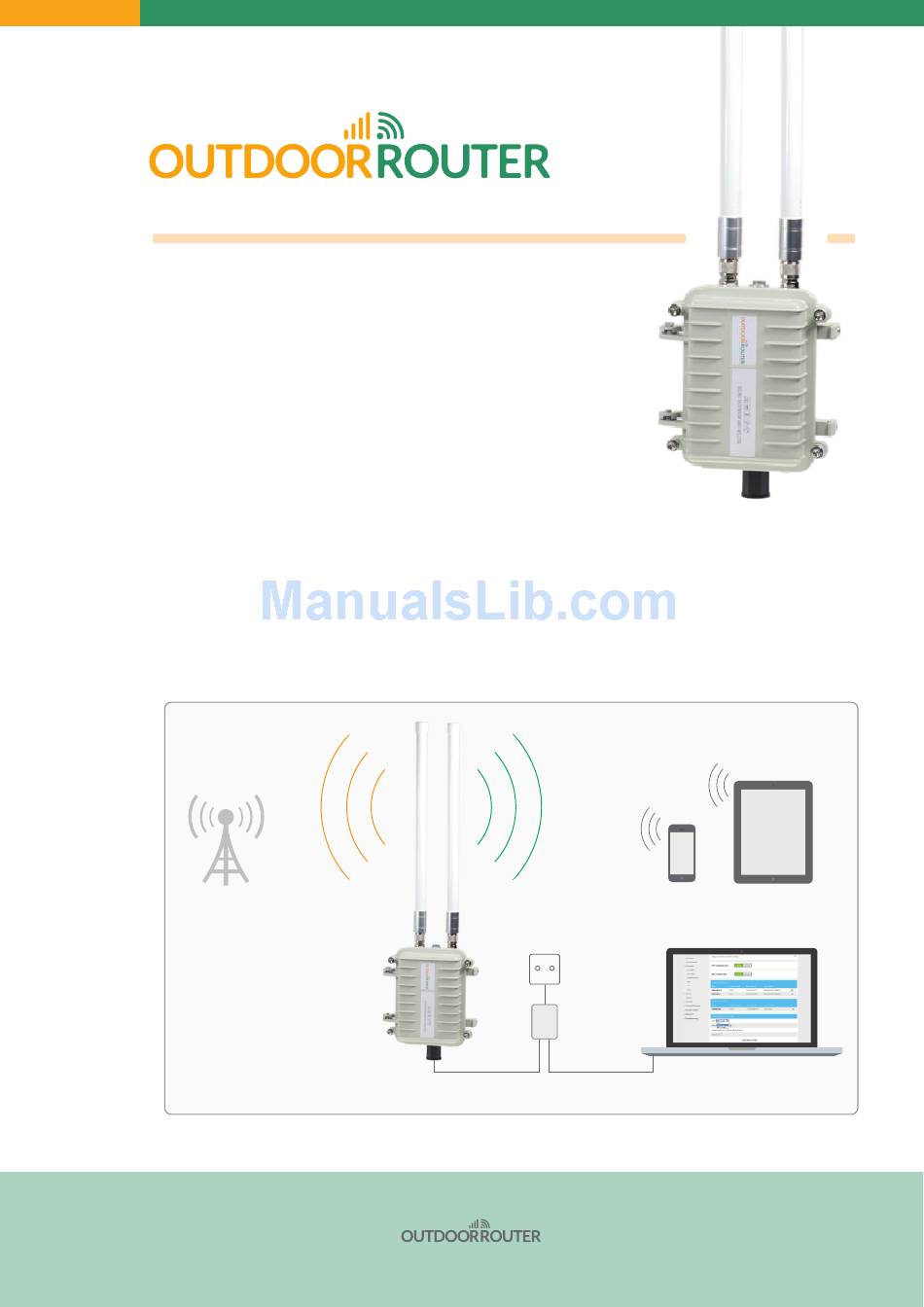

With an integrated mobile modem and Wi-Fi amplifier, the WRT4E outdoor router can receive 3G/4G mobile phone signals and
establish a Wi-Fi hotspot to connect your smartphone, computer, tablet, camera, TV box to the internet.
After inserting SIM card into build-in SIM card slot and connect the outdoor router to PoE injector, a Wi-Fi hotspot is instantly
established. The Wi-Fi output power is adjustable between 20/27/30dBm. WPA/WPA2 encryption standards ensure your wireless
connection is safe from intruders.
Mobile tower
3G/4G
outdoor router
Electrical
outlet
PoE
injector
10-meter LAN cable 3-meter LAN cable
www.outdoorrouter.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WRT4 U and is the answer not in the manual?

Questions and answers

Summary of Contents for OutdoorRouter WRT4 U

  • Page 1 After inserting SIM card into build-in SIM card slot and connect the outdoor router to PoE injector, a Wi-Fi hotspot is instantly established. The Wi-Fi output power is adjustable between 20/27/30dBm. WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders. Mobile tower Electrical outlet 3G/4G outdoor router injector 10-meter LAN cable 3-meter LAN cable www.outdoorrouter.com...

  • Page 2: Hardware Overview

    Warnings PLEASE READ THE MANUAL AND FOLLOW THE STEPS CAREFULLY. THIS MANUAL WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON, PLEASE CONTACT US. • Do not install with live electricity. • Avoid your gas lines when grounding your wires. •...

  • Page 3: Indicator Description

    Indicator description Indicator Status Description System is up and ready PoE power No input PoE power PoE module and Wi-Fi module are turn on Router power Router is power off Blue Received 3G/4G signal, but cannot connect due to no SIM card or no money in SIM card. Blue flash slowly Received 3G/4G signal, but no data transmission.
  • Page 4 Installation Insert the micro SIM card Use the hex wrench to lose 4pcs of hexagon bolts and open the case. Insert micro SIM/USIM card (12x15mm) into the SIM card slot. See chapter 2.2 where is the “SIM card slot”. Turn on router power switch. See chapter 2.2 where is the “router power switch”.

  • Page 5: Poe Injector

    Installation PoE injector Connect another RJ45 connector on the 10-meter LAN cable to PoE Port Power plug PoE port on the PoE injector. to outdoor router to electrical outlet PoE indicator **Not required** Connect indoor router or computer to Lan port on the PoE injector.

  • Page 6: Interface Overview

    Configuration Login your outdoor router The default IP address of the outdoor router is 192.168.100.1 with subnet 255.255.255.0. Make sure your smartphone or computer is connected to the router via Wi-Fi or LAN cable. Open a web browser and type http://192.168.100.1 in the URL address bar. Use default password admin to login.

  • Page 7: Network Settings

    Configuration Network connections and status There are six blocks below the menu bar on the front page. 4.5.1 3G/4G connect status On the left upper corner, you can quickly turn on / off the 3G/4G mobile network connection and check the connection status including upload speed, download speed, and working time.

  • Page 8: Sms Control

    3G/4G connection at the first priority *#07#,wifipref Wi-Fi replay at the first priority *#08#,WRT4E,outdoorrouter,add Connect to another Wi-Fi hotspot SSID “WRT4E” with password of “outdoorrouter” *#08#WRT4E,outdoorrouter,delete Disconnect to Wi-Fi hotspot SSID “WRT4E” with password of “outdoorrouter” Reset factory settings When the router is turned on, click and hold “Reset” button for 5 seconds until the router reboot. Or use the above SMS code *#06#.

  • Page 9: Troubleshooting

    The default IP pool of router is 192.168.100.101~200. Check chapter 4.4.2 to change IP pool. Contacts If you have any question or suggestion about the outdoor router, please contact us. Company: Shenzhen Easysmart Technology Co Ltd Address: Rm2906, Aoxinya Bldg, Caitian Road Shenzhen, China 518033 Phone: 0086 138 23371557 E-mail: sales@outdoorrouter.com...

This manual is also suitable for:

Wrt4 e
