Summary of Contents for One61 Studio foundmi 2.0

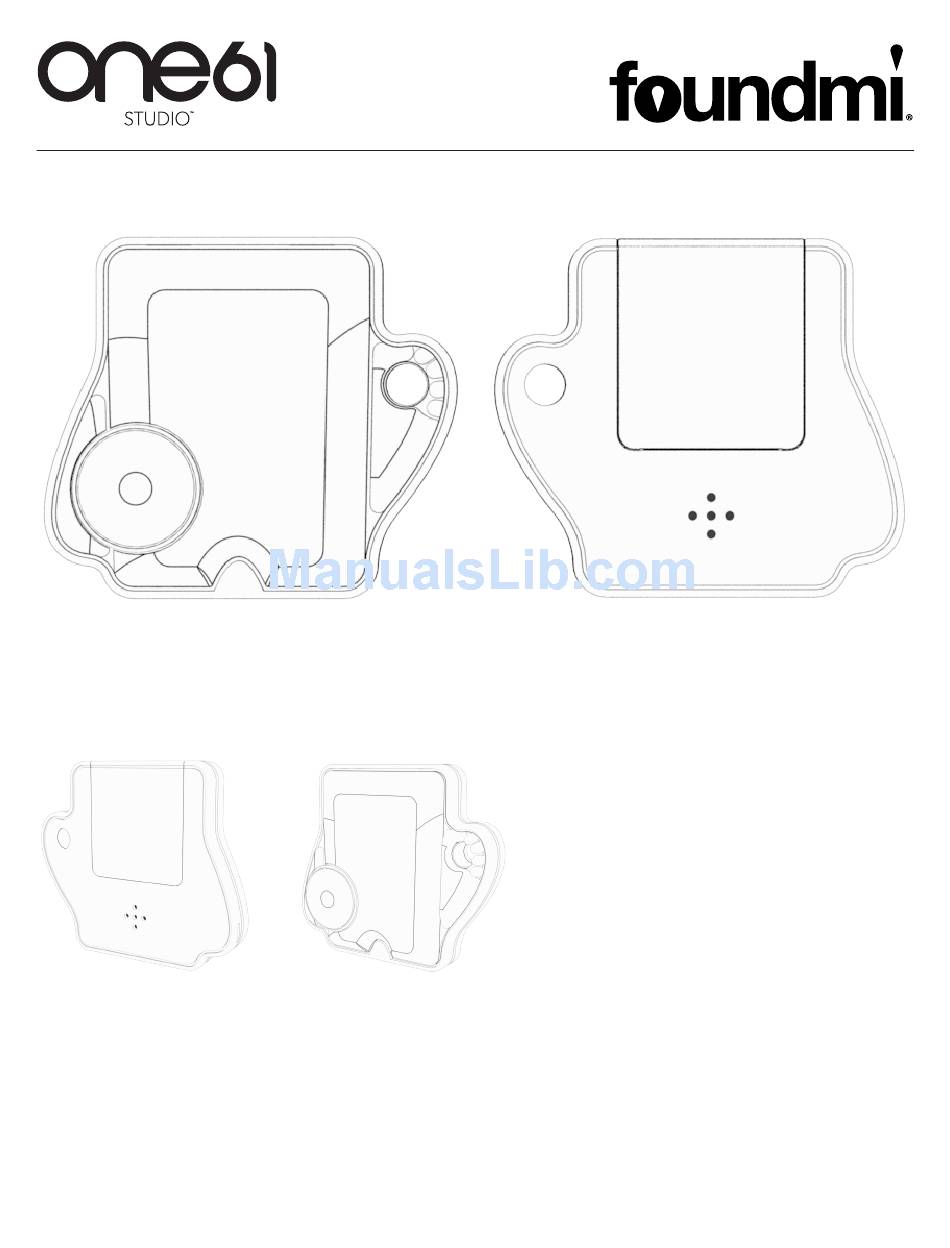

- Page 1 FOUNDMI TRACKER USER GUIDE Model 2.0 www.foundmi.com...
- Page 2 One61 foundmi Hardware Here’s a guide to the hardware features of the One61 Studio foundmi tracker. By numbers 1. Keyring 6. ABS front half 2. 3M adhesive disc 7. Sonically welded sides 3. CR2032 battery 8. ABS back half 4. Silicone face 9.
- Page 3 Foundmi tracker battery removal and replacement Follow the below steps 1 – 6 Locate the back door Apply pressure to slide the Once its loose, lift the door door up to unlock the back straight out of the back. two tabs. Locate the CR2032 battery.
-
Page 4: Setup And Pairing
Setup and Pairing Pair your foundmi tracker with your Device Your foundmi tracker works together with your mobile device, so you’ll need to pair them. The foundmi tracker uses Blue- tooth Low Energy (BLE). If you’re pairing your foundmi tracker for the first time, make sure your device Bluetooth is turned on and yourdevice is con- nected to mobile data or Wi-Fi. - Page 5 - Once you have completed your signup, you can now pair your foundmi. 1. Tap the + icon in the center of the card to ‘add foundmi’ 2. Select the universe of your character by tapping on one of the licensed boxes. 3.
- Page 6 4. Place your foundmi tracker close to your mobile device. 5. Long press the button on your foundmi tracker until it ‘beeps’ to start pairing. 6. You will receive a Bluetooth pairing request notification on your mobile device. 7. Tap ‘Pair’ 8.
- Page 7 10. “Is your foundmi ringing?” Tap yes or tap try again if it is not. 11. If it is not then follow steps G – J again. 12. If you tap ‘Yes’ you will be redirected back to the main page. 13.
- Page 8 Removing a foundmi tracker Remove your foundmi tracker from your mobile device Follow steps 1-3: 1. Tap the ‘I’ icon in the top left corner of the character card. 2. Tap “trash can” icon in the top corner. 3. Tap “delete” to remove the foundmi from your mobile device.
- Page 9 Finding Function Find your foundmi tracker from your mobile device Follow steps 1-2: Make sure that the find button is green on the character card, if it is gray it is out of range. 1. Tap the ‘find it’ button your foundmi tracker should start ringing. 2.
- Page 10 Find your mobile device using your foundmi tracker Follow steps 1-2: 1. Double click the button on the foundmi tracker . 2. Once you have found your mobile device tap ‘dismiss.’ Edit a foundmi tracker Follow steps 1-2: 1. Tap the ‘i’ icon in the top left corner of the character card. 2.
- Page 11 Reset and Change Password To reset your password Follow steps 1-3: 1. Tap ‘forgot password.’ 2. Enter your email address. 3. Tap ‘submit.’ To change your password Follow steps 1-3: 1. Type in your current password. 2. Type in your new password. 3.
- Page 12 Maps Need to find your foundmi tracker when it is out of range This will show your last known location when out of BLE range. It will update when you are within BLE range To use the maps function Follow steps 1-3: 1.
- Page 13 Selfie Function In-app camera The in-app camera allows you to use your tracker to take pictures. To use the selfie function: 1. Tap on the ‘menu’ icon or swipe from the left side of the screen to open up the menu. 2.
- Page 14 5. If you tap ‘save’ a notification will request permission to save the photo to your local photo library. 6. If you tap ‘share’ a notification will request if you would like to continue, and from there you can choose the way you share your photo.
- Page 15 3. Scroll up and down to view all of the characters. 4. Tap the ‘filter’ icon to see all the different licenses to choose from and to narrow down your search. Setting Follow steps 1-3: 1. Tap on the ‘menu’ icon or swipe from the left hand side of the screen to open up the menu. 2.
- Page 16 Help Follow steps 1-3: 1. Tap on the ‘menu’ icon or swipe from the left side of the screen to open up the menu. 2. Tap ‘help’ 3. You will then be given 4 options: A. Instruction manual - Directs you to the foundmi.com website and this document. B.
