Summary of Contents for GIGA GDM-100

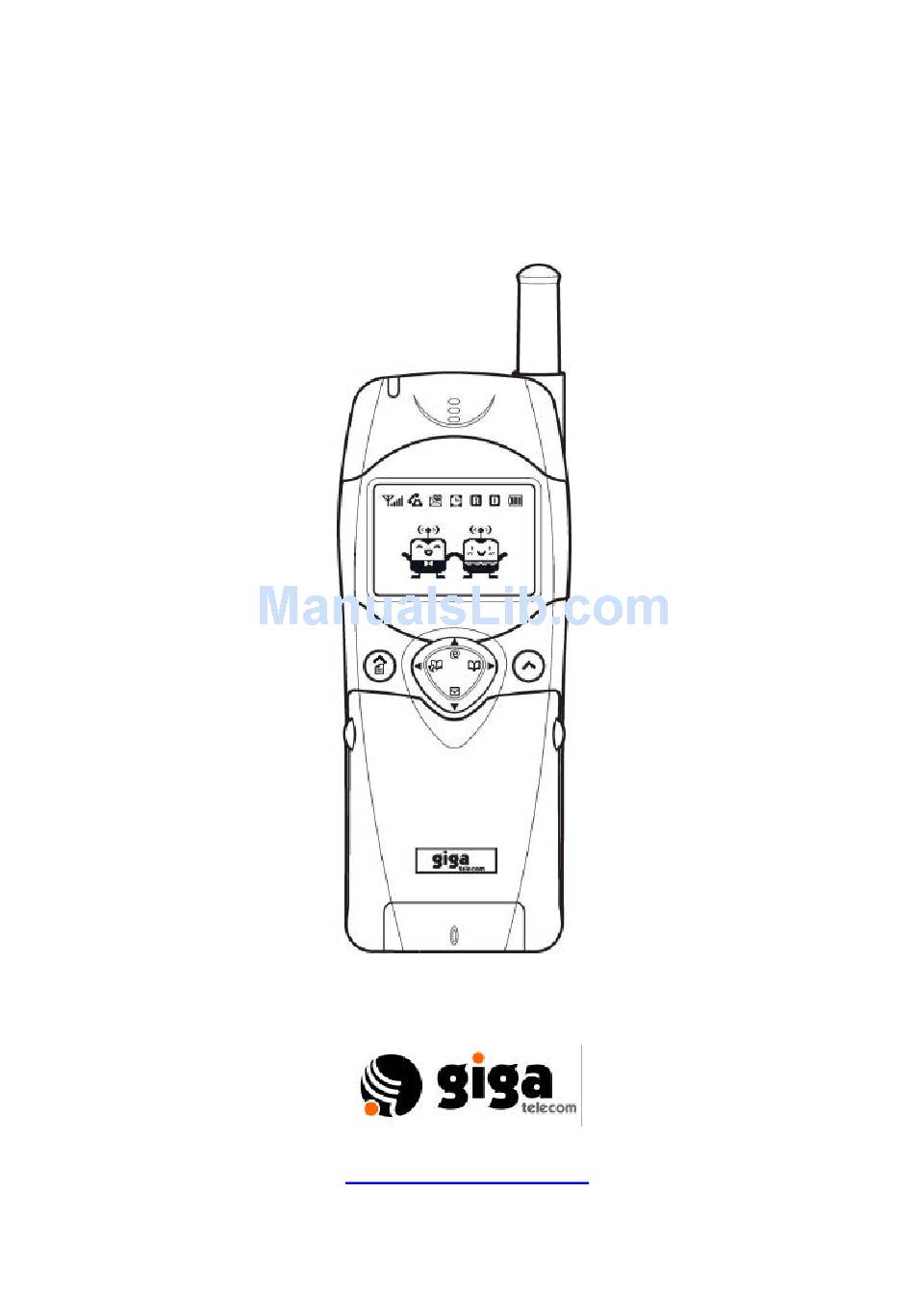

- Page 1 GDM-100 USER MANUAL This is a draft version printed in Korea. - 2001/8/13 - Floor Sewha Bldg., 156-3 Samsung-Dong, Kangnam-Gu, Seoul, Korea Http://www.gigatelecom.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FCC RF EXPOSURE INFORMATION … … … … … … … … … … … ..… . . … … … … … ..… … … 7 SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES … … … … … … … … … … … … … … … … … … … … … … … … … … . … … . . … 8 PRECAUTIONS …... - Page 3 USING NETWORK SERVICE FEATURES … … … … … … … … … … … … … … … … . . … … … … . 3 2 • Call Waiting … … … … … … … … … … … … … … … … … … … … … … … … … … … . . … … … ... … 33 •...
- Page 4 • Lock … … … … … … . . … … … … … … … … … … … … … … … … … … … … . … … … … … … … … ..47 •...
-
Page 5: Fcc Rf Exposure Information
FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. -
Page 6: Safety Information For Wireless
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES Read this information before using your handheld portable cellular Telephone EXPOSURE TO RADIO FREQUENCY SIGNALS Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF)signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines that are consistent with the safety standards previously set by both U.S and international standards bodies:... - Page 7 For an efficient operation of your phone: • Extend your antenna fully • Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed. DRIVING Check the laws and regulations on the use of wireless telephones in the areas where you drive.
- Page 8 Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining the necessary information. Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.
-
Page 9: Precautions
PRECAUTIONS Your handheld Portable Telephone is a high quality piece of equipment. Before operating the equipment, read all instructions and cautionary markings on (1) AC Adapter, (2) Battery and (3) Product using Battery. 1. DO NOT use this equipment in an extreme environment where high temperature or high humidity exists. -
Page 10: System Configurations
SYSTEM CONFIGURATIONS System configuration and the equipment list are as shown below. Handheld Portable Telephone Battery User Manual Charger Hand Strap... -
Page 11: Phone Layout
Phone Layout In the menu layout, scroll through the menu options and phonebook memory. The following illustrations show the main elements of your phone. Front Indicator light Retractable Ear-piece Volume Keys Display Navigation Recorder Right Soft Key Left Soft Key End Key Send Key Headset Jack... -
Page 12: Using The Battery
USING THE BATTERY Installing the Battery Pack 1. Insert the hook at the end of the Battery Pack into the slot at the end of the phone. 2. Press the Battery Pack down to lock the Battery Pack onto the phone. 3. -
Page 13: Removing The Battery Pack
Removing the Battery Pack To remove the battery, proceed as follows: 1. Turn the power off. 2. Slide Back the Release Latch as shown below. 3. Gently lift to remove the Battery Pack. Note: The battery must be correctly placed in the battery compartment. If battery is incorrectly inserted, the handset will not turn on or the battery may slip out during use. -
Page 14: Recharging The Battery
Recharging the Battery A rechargeable Li-ion battery powers your GDM -100. To recharge the Battery, always install the Battery to the phone The phone can be used while charging if it is switched on. 1. Insert the Connector from the charger to the base of the Phone. Connect Disconnect 2. -
Page 15: Important Battery Information
Up to 220min Up to 1Week (*The test result above is from Giga Telecom’ s Lab.) Use only batteries and charges approved by the phone manufacturer. When a charger is not in use, disconnected it from the power source. Do not leave the battery connected to a charger for longer than a week;... - Page 16 warm up first. When the battery is not use, store it unchanged in a cool, dark and dry place. The battery is a sealed unit with no serviceable parts. Do not attempt to open the case. It is recommended that you allow your battery to fully discharge before you recharge it. The battery can be charged and discharged hundreds of times but will eventually wear out.
-
Page 17: Function Keys
FUNCTION KEYS Soft left key Search for phonebook with address. [SRCH] In the menu facility, returns to the previous menu level. [PREV], [CANL] Soft right key In condition of flip closed, enters the Short Messages menu. (èOn the Flip Closed, enters the Messages menu. [MSG]) In the menu facility, selects menu function or stores information that you have entered. -
Page 18: Lcd Display Indicators
LCD DISPLAY INDICATORS The display is comprised of two areas: an upper line of static icons and the lower text and graphic area. The following icons display at power-on. Items Descriptions Displays your current signal strength. The more lines you have, the stronger your signal. -
Page 19: Getting Started
GETTING STARTED +Turning The Phone On And Off When you're ready to turn your phone on, check to see that the charged battery has been installed on the back of the phone. 1. Open the flip cover. 2. Hold down the key for more than one second to switch the phone on. -
Page 20: Network Service
+Network services A number of features included in this guide are called Network Services. They are special services provided by wireless service providers. Before being able to take advantage of any of these network services, subscription to these service(s) from your home service provider is required. - Page 21 ++How to input Portuguese /Espanol To enter Portuguese /Espanol, press and hold the desired key among 2key~9key. For example, press and hold 2key to find letter 2key Capital Small 3key Ð Capital ð Small 4key Capital Small 6key Capital Small 8key Capital Small...
-
Page 22: Basic Operations
BASIC OPERATIONS +Making And Ending Calls Before being able to make or receive calls, the phone must be turned “on” and be within range of a network. In standby mode, key in the area code and phone number. To fix an error, press 2. -
Page 23: Emergency Dialing
++Etiquette Mode To switch to etiquette mode press for a while. Press and hold until the vibration icon appears and “Switching to Etiquette Mode” display appears. The phone will switch to etiquette mode immediately. Press and hold for a while again to terminate the Etiquette Mode. +Emergency Dialing Even if the phone is locked, emergency numbers can be dialed. - Page 24 2. Enter a memory number (001-190) and . If a memory number is not assigned, the phone will do it automatically. 3. Enter memory number (001-190) and press [OK] 4. Select a label. The following labels are available: home, work, mobile, and pager label. After selecting the label, press [SEL].
- Page 25 ++Editing an Existing Phonebook Entry: 1. Select the desired entry (Use search option) 2. Highlight the desired feature and press [EDIT]. 3. Follow the phone's intuitive prompts. 4. Name, phone number, E-mail, turbo dial, Voice dial, Group, Ring tone can all be edited. NOTE: Ring tone –...
- Page 26 2. Press the name of the desired person and then the screen shows the number of the name stored in the Phonebook. Even if only the first letter of the name is entered, the screen shows the name such as “Gi” for “Giga”, “G T” for “Giga Telecom” and “G T I” for “Giga Telecom Inc”.
-
Page 27: Using Speed Dialing
[ADDR]. 2. Searching by Phone number: Press the phone numbers (more than 191) and press [SRCH]. +Using Speed Dialing Once phone numbers are stored in the phonebook memory, they can be easily dialed. This feature allows one-touch access to numbers stored in the first nine memory locations, 001- 009. -
Page 28: Voice Dialing
Press the first and the second digit briefly, then hold down the third digit of the phone book. For example: Location no. 123 Press 1 and 2 briefly and then hold down 3. The number (and name) stored is displayed and then dialed. +Voice Dialing The phone can stored up to 20 different numbers for voice dialing. -
Page 29: In-Call Options
If you have set Automatic Answering option to “On” ( [MENU] +9+7-Auto machine) and the call connects automatic answering mode. Also, if you press and hold key, Automatic Answering is set. IN-CALL OPTIONS The phone provides a number of functions that can be used during a call. These functions may not be utilized at all times. -
Page 30: Indicating My Phone Number
To access the Phonebook menu. Press [MENU] + 2. +Indicating My Phone Number During a conversation, to see your own phone number press [MENU] + +Voice Recording During a conversation, the phone can make voice recording of the other party. To turn on voice recording, press . -
Page 31: Using Caller Id
This feature enables conference calls with two separate parties at the same time. Airtime is billed for each outgoing call separately. Contact the service provider to activate Three-Way Calling. NOTE: Ask how to use Call Waiting Service because it depends on each individual carrier. +Using Caller ID Caller ID identifies who is calling through displaying the number that the person is calling from when the phone rings. -
Page 32: Checking Voice Messages
message is incoming. A icon will display. The phone ’s alert can be selected. For Incoming Alert option, press Navigation-down+5+1. To set the contents mode in the display mode option (Navigation-down+5+2), a new message can be checked immediately with Navigation-down. +Checking Voice Messages When a voice message is received, the screen displays the time, date and the number of new, unheard messages. -
Page 33: Sending Messages
+Sending messages The phone can transmit text messages, pages and store the transmitted messages. Press Navigation-down to open the messaging menu and Press 3. You can select the following message menu. ++Send Messages Press Navigation-down key+3+1key in order to send a new message in stand-by mode. Write the new message and enter its destination phone number, then the desired call back number. -
Page 34: Managing Call History
++Clearing Messages To erase selected messages (Text Msg / Send Msg / Mailbox) that have been transmitted. Press Navigation-down+4. Select Items to be cleared using Navigation and Press ++Message Setup In stand-by mode, press Navigation-down+5. +++Incoming Alert To adjust alert tone sounds (Once / Once every 2 minutes / Lamp) press Navigation-down +5+1. -
Page 35: Schedule
You will find your recent call history list. This is a list of the last 20 phone numbers dialed and last 20 received phone calls. The call history list makes redialing a number fast and easy. It is continually updated as new numbers are added to the beginning of the list and the oldest entries are removed from bottom of the list. -
Page 36: Appointed Time
+Appointed Time Sets the alarm to ring at an appointed time within 24hours. After setting the alarm, to check the left time (menu +3+1-see left time-ok). The Appointed time sets the phone to alarm after a certain time. For example, the phone can be set to alarm after 5, 10,15, 30, 45minutes, 1 hour ~ 10, 12, 14, 16,18, 20, 22, 24 hours. -
Page 37: Schedule
1. Enter an Anniversary name and then press 2. Enter an Anniversary Time and then press 3. Enter a Schedule Alarm and then press ++Editing the Anniversary If a task is already defined in the Anniversary, it is displayed selecting the Anniversary menu option. -
Page 38: D-Day
Press +3+5+(Select [Empty]) [SET]. 1. Enter a “To do Content” and then press [OK]. 2. Enter a “To do Term” and then press [OK]. 3. Enter a “To do Condition” and then press [OK]. 4. Finish / Process (Saved), press [SEL]. -
Page 39: Calendar
To set the Time Signal, [MENU] + 3+7. Press [SEL] . And select the Time Signal “Set” and then press +Calendar [MENU] +3+8. Press The monthly calendar from year1980 to year 2099 can be viewed. Moves to the last year Moves to the next year Navigation-left key: Moves to the last day Navigation-right key: Moves to the next day... -
Page 40: Ring Tone
Press [MENU] key + 4key. +Ring Tone Press [MENU]+ 4+1. Sets the ringing tone for voice calls. This option allows you to select the desired ringing tone. You can choose among 11(4 Bells, 7 Melodies) different bells or melodies. Scroll to the desired tone and press [SEL] +Ring Type To adjust ring type... -
Page 41: Tone Length
Adjust the key volume from one to nine levels. Also turn the ringer off. The higher the graph, the louder the volume is. +Tone Length To adjust tone length Press [MENU]+4+5. Some phones can recognize only longer tones. Tone length may have to be changed to long for some calls. -
Page 42: Utilities
elapsed minute as a reminder of the length of the current call. Press [MENU]+4+8+3. ++Roam Alert To set the phone to sound the roam alert when the call is roam status to the system. Press [MENU]+4+8+4. ++SVC Alert With this menu option set to check, the phone beeps when leaving service area or when returning to a service area. -
Page 43: World Time
+World Time To check the current time for 64 major cities around the world in alphabetical order, by using the navigation keys -Up, Down, Left, Right keys. Press [MENU]+5+2. The screen shows the: • City name • Current date and time +Convert Unit To use the unit converter Press [MENU]+5+3. -
Page 44: Security
The phone can be used as a stopwatch. To use the stopwatch, 1. Press [MENU]+5+5. 2. Press the [STRT] to start. On operating the stopwatch, 3-1. To stop, Press [STOP]. 3-1-1. If you press [STRT] again, you can check the cumulative time. 3-1-1-1. -
Page 45: Restrict
+Restrict Press [MENU]+6+2. For your protection, choose the restriction option to restrict International Phone and Phonebook. Press [MENU]+6+2+1. Phonebook: The Use of the Phonebook can be restricted by this option. Press [MENU] key +6+2+2. International call: international calls cannot be connected. The phone can be restricted or unrestricted by each option individually. -
Page 46: Voice Service
Place the scroll bar at OK Enter [OK]. VOICE SERVICE Up to 20 stored voice tag entries can be added to a desired name and phone number. Any spoken word, for example a name, can be a voice tag. Before using the voice service menu, the Record User Command menu must be registered. (To do so, enter [MENU]+7+6) by saying the desired voice command. -
Page 47: Set Up Voice Dial
The screen displays the: “Record Voice Memo?” prompt. Press [OK]. And then you can start to record. Press any key to stop recording. ++How to Replay Voice Memo You can play back all memos recorded, starting with the most recent memo. You can choose the voice memo you want to replay using Navigation key. -
Page 48: Automatic Answer
++The screen displays the: Remove all voice tags proceeds. Press [OK], to confirm the deletion of all voice dials. ++The screen displays: All message tags were deleted successfully. To clear messages one by one, press Menu+7+1. Highlight the voice dial and delete you want to erase. -
Page 49: Record User Command
+++You can hear the following instructions: Please record at tone After hearing the beep, start recording the message. When the recording message is finished, then press any key to terminate. +++The screen displays: Greeting Saved successfully. ++Greeting Message Play To hear previously saved Greeting Messages. Press [MENU]+7+5+1. -
Page 50: Data Services
++You can hear the following instructions: “Now training control word. Please say the word. Yes.” Respond to the prompt by repeating the words. The phone stores the voice as the first sample, and then prompts for the word again. Please say the word, YES Again Please say the word, NO Again... -
Page 51: Auto Retry
To set a greeting message to be displayed in the idle mode. Press [MENU]+9+4+1 It is preset to Giga. To change the greeting display type press [MENU]+9+4+2 It can be changed to displays such as Basic, Digital Watch, Giga Logo, World Time- Present Time and D-Day in your preference. -
Page 52: Animation
+Animation Plays during power are on/ off. Press [MENU]+9+5 and select the animation option, then press soft right key. It is shown when the power is on or off. +Auto Hyphen Press [MENU] +9+6. If you set to “on” then, the phone automatically hyphenates numbers as follows: (area code)- (number). -
Page 53: Auto Answer Setting
are out of town, you can prefix that entry with the appropriate area code. 1. Select the phonebook entry or call history using one of the previously described methods. 2. Select the phone number label of the person you want to call. 3. -
Page 54: Select System
++Force mode Press [MENU]+9+#+1. You can select the system service mode between CDMA and Analog. Each service mode allows selection of a roaming option. Roaming is a feature, which is only applicable in areas where there are at least two cellular service providers having valid roaming agreements. Roaming, when available, allows the phone to register on one of the networks, but use the facilities of the other if the phone’s network is not available. -
Page 55: Game Start
Press + *. +Game Start Allow you to start game. Press [MENU]+ *+1. +Game Level Allows you to select the level of difficulty. Press [MENU]+*+2 Select the required level among 10 levels using the up and down keys. And press the [SEL] to select.
