I.
CONTACTS
II.
ORIGINAL INSTRUCTION MANUAL
III.
WARRANTY TERMS AND CONDITIONS
IV.
UNIT STARTUP REPORT
V.
INSPECTION AND MAINTENANCE DOCUMENT
VI.
SERVICE NOTIFICATION
Please read this instruction manual carefully before beginning any work.
AGE

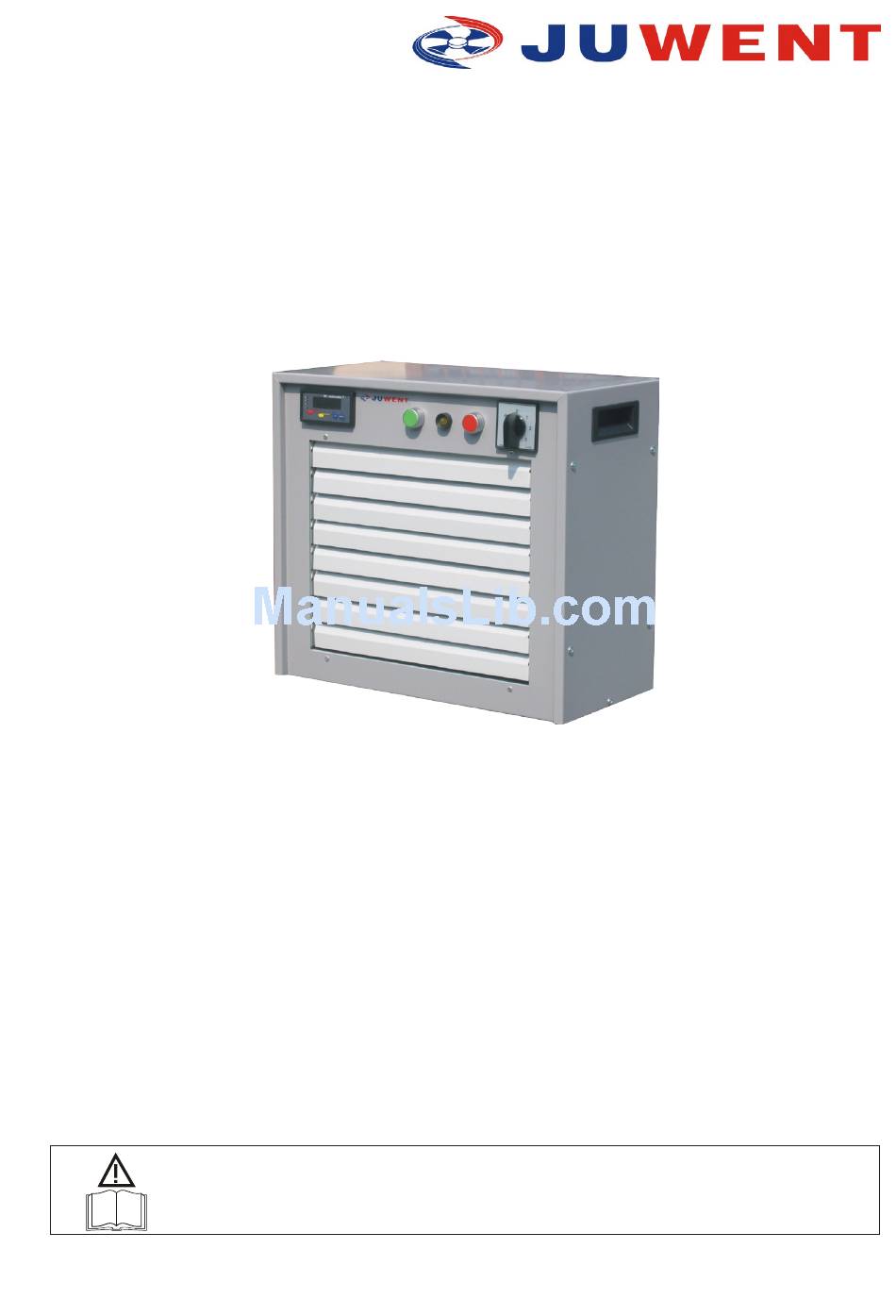

ELECTRIC HEATING UNIT
RYKI 2015
ISSUE 1 EN
Szymański, Nowakowski General Partnership
31 Lubelska Str., 08-500 Ryki
phone +48 81 883 56 00, fax +48 81 883 56 09
POLAND
Advertisement
Table of Contents
Related Manuals for Juwent AGE-1-3
Summary of Contents for Juwent AGE-1-3
- Page 1 Szymański, Nowakowski General Partnership 31 Lubelska Str., 08-500 Ryki phone +48 81 883 56 00, fax +48 81 883 56 09 POLAND ELECTRIC HEATING UNIT CONTACTS ORIGINAL INSTRUCTION MANUAL III. WARRANTY TERMS AND CONDITIONS UNIT STARTUP REPORT INSPECTION AND MAINTENANCE DOCUMENT SERVICE NOTIFICATION Please read this instruction manual carefully before beginning any work.
- Page 2 I. CONTACTS Szymański, Nowakowski General Partnership 31 Lubelska Str., 08-500 Ryki phone +48 81 883 56 00, fax +48 81 883 56 09 POLAND Export department mob.+48 502 087 841 mob.+48 664 465 243 export@juwent.com.pl www.juwent.com.pl...
- Page 3 II. ORIGINAL INSTRUCTION MANUAL ELECTRIC HEATING UNITS AGE size 1÷6 www.juwent.com.pl...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTENDED USE 2. DESIGNATIONS 3. DEVICE DESCRIPTION 4. TECHNICAL DATA 5. TRANSPORT 6. SAFETY RECOMMENDATIONS 7. INSTALLATION 8. ELECTRICAL INSTALLATION 9. AUTOMATICS 10. DEVICE COMMISSIONING 11. REPAIRS, MAINTENANCE AND DECOMMISSIONING 12. TROUBLESHOOTING 13. INFORMATION www.juwent.com.pl... -
Page 5: Intended Use
(automatic - optional) depending on room air temperature. The control system features an additional thermostat for heating elements preventing exceeding heater threshold values; » housing with handles and feet (4); » outlet grille (5); Rys. 1 Unit design www.juwent.com.pl... -
Page 6: Technical Data
» three stages AGE-4 [6, 9, 12 kW], AGE-5 [6, 12, 18 kW], AGE-6 [9, 18, 27 kW]. Basic technical data and dimensions (Table I). Air flow Weight Unit size heater heater heater [mm] [mm] [mm] [mm] [rpm] [kg] [kW] AGE-1-3 1300 AGE-2-6 1300 AGE-3-9 1450 1300 AGE-4-12 1450 1300 AGE-5-18 2100 1400 AGE-6-27 2900 1400 Lmin –... -
Page 7: Safety Recommendations
This probability is related to frequency of using, cleaning and repairing the device, presence of persons within the danger area, and not respecting the safety rules as set out in the instruction. www.juwent.com.pl... -
Page 8: Installation
- lamp: fan operation, lights with (START) (b) pressed, b - button - START (green): fan ON, c - button - STOP (red): unit OFF, d - switch: position 0 - heating OFF, position 1, 2 or 3 - heating stage selection, www.juwent.com.pl... -
Page 9: Electrical Installation
W2 - heating power switch: W2.6; 16A/250V PZ - control button: FT22; 380V/1.6A Rd - thermal safety device M - motor L - LED G1,G2 - heating elements: 1000W,2000W/230V S1,S2 - heating element contactors Fig. 4 Wiring diagram AGE 1-3, AGE 2-6, AGE 3-9 www.juwent.com.pl... -
Page 10: Automatics
C to 100 C with constant hysteresis of 3 C. Monitoring temperature is factory set at 80 and limit temperature is always higher by 20ºC than the preset temperature.Jako dodatkowa opcja, aparaty mogą być wyposażone w następujące elementy automatyki: www.juwent.com.pl... -
Page 11: Device Commissioning
» use switch (d) to switch off the heating elements, position 0; » press (c) (red) to switch off the unit. The fan will continue to rotate for 15-20 seconds. The unit will switch off automatically after the heater element temperature is reduced. www.juwent.com.pl... -
Page 12: Repairs, Maintenance And Decommissioning
1) connections as per diagrams phases for three-phase motors) fan not working 2) terminal connections fan motor failure 3) mains parameters fan control elements failure 13. INFORMATION As to all issues concerning the electric heatnig units contact JUWENT Production Plant or our Representatives www.juwent.com.pl... - Page 13 III. WARRANTY TERMS AND CONDITIONS JUWENT Szymański, Nowakowski General Partnership, headquartered in Ryki at 31 Lubelska Str., hereinafter referred to as the Warrantor, grants the Customer a warranty of proper operation of the unit with reservation of the requirement of its use in accordance with the conditions determined in the instruction manual and the terms and conditions specified below.
- Page 14 / name and signature V. INSPECTION AND MAINTENANCE DOCUMENT Date of Executor of inspection Service activity range Remarks inspection stamp / name and signature * Inspection of the unit in accordance with the section “Repair and Maintenance” in the instruction manual www.juwent.com.pl...
- Page 15 NOTE: AFTER COPYING AND FILLING IN SEND THE NOTIFICATION BY FAX OR EMAIL TOGETHER WITH A COPY OF THE STARTUP REPORT. JUWENT Company accepts notifications filled legibly and completely. When the lodged claim is not justified, the claimer will be burdened with service costs.
