Summary of Contents for Starlife SL-DP908

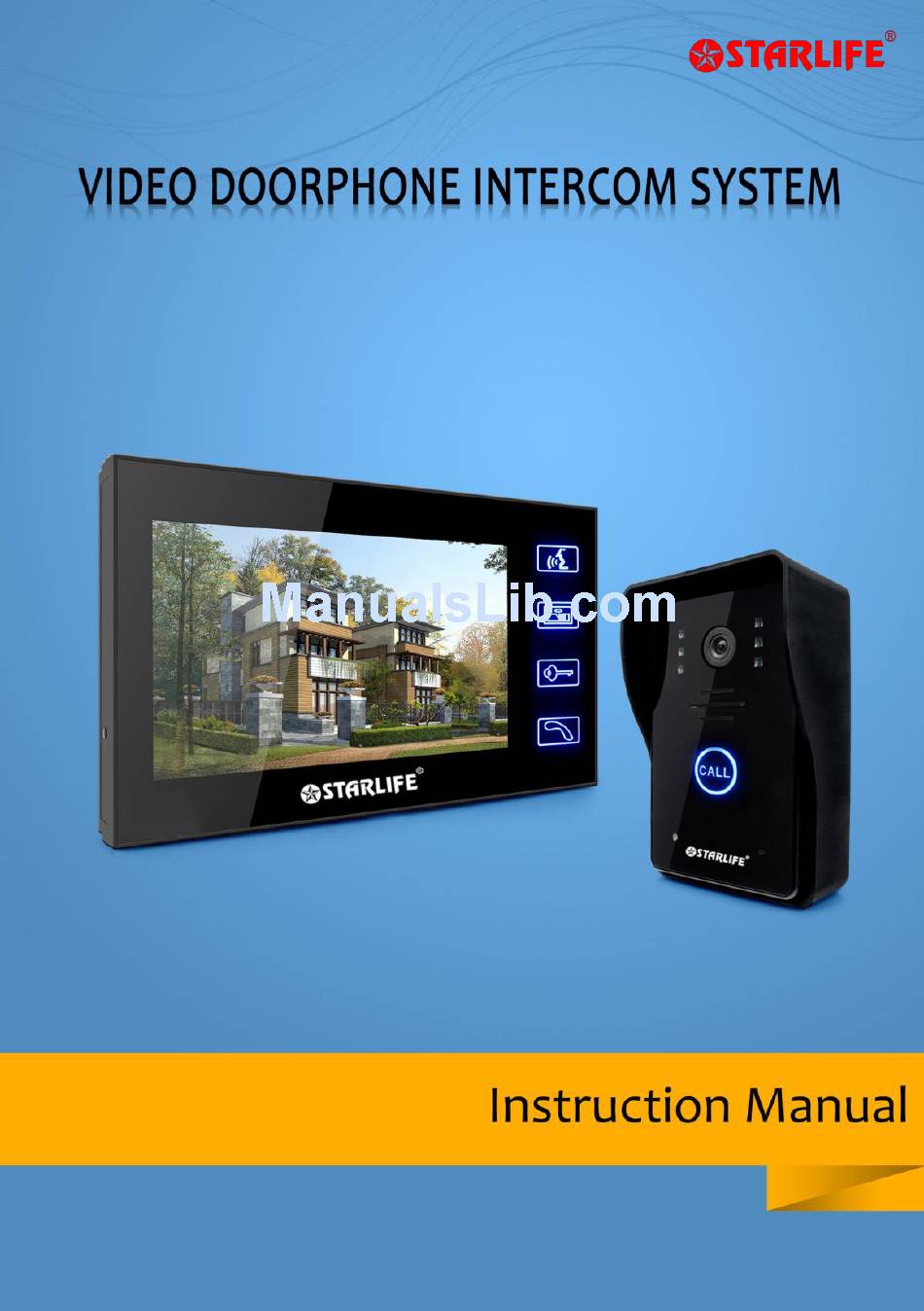

- Page 1 SL-DP908...
- Page 2 Thank you for choosing us. Please follow the instructions in this manual for usage. We are always ready to help.
-
Page 3: Table Of Contents
Content Introduction .........................1 Feature ..........................2 Specification ........................3 Function Key Indoor Unit ..........................4 Outdoor Unit ..........................5 Installation Indoor Unit ..........................6 Outdoor Unit ..........................7 Wiring Diagram ......................8 Operation ........................9 Important Safety Guide ..................10... -
Page 4: Introduction
Introduction This amazing doorphone intercom system could be a truly effective solution for improving security of your property. Advanced technology and the latest computer chips are adopted in this intercom system for high stability and d urability. Its 7’’ TFT screen with infrared camera sensor provide you with qu ality images for monitoring use even at night. -
Page 5: Feature
Feature 7'' Grade-A TFT screen for color display with high definition image Hands-free intercom, one-button touch makes perfect experience Sensitive touch panel with low power consumption, no radiation Inter-monitor/ monitor-camera intercom Infrared LEDs in camera for better night vision ... -
Page 6: Specification
Specification Outdoor Camera Model No. SL-DP908 Night vision IR Light, visible within 5 meters Vision angle 92° Wide Angle Resolution > 420 TV Line Power consumption Standby: 0.1W; Working: 4W Working temperature -10℃~+55℃ Installation Wall mounted Size 168(L)*110(W)*65(H)mm Net weight... -
Page 7: Indoor Unit
Function key of Indoor Unit... -
Page 8: Outdoor Unit
Function key of Outdoor Unit... -
Page 9: Indoor Unit
Installation of Indoor Unit... -
Page 10: Outdoor Unit
Installation of Outdoor Unit Please avoid installing this camera with direct exposure to sunlight. You might need a light for improving image quality at night when there is light coming from visitors’ back. -
Page 11: Wiring Diagram
Wiring Diagram (1V1, 1V2) -
Page 12: Operation
Operation Visitor Call Visitor presses the “CALL” button on the outdoor unit, and the monitor will display visitor image with ring. Press “TALK” button once to talk to visitor. Press “TALK” button again to cancel the intercom. Viewing Outside (40 seconds’ duration) Pressing “Monitor”... -
Page 13: Important Safety Guide
Important safety guide...
