Argos 7201833 Assembly Instructions

ARGOS
489-499.Avebury Boulevard
Saxon Gate West
Central Milton Keynes
Bucks
MK9 2NW

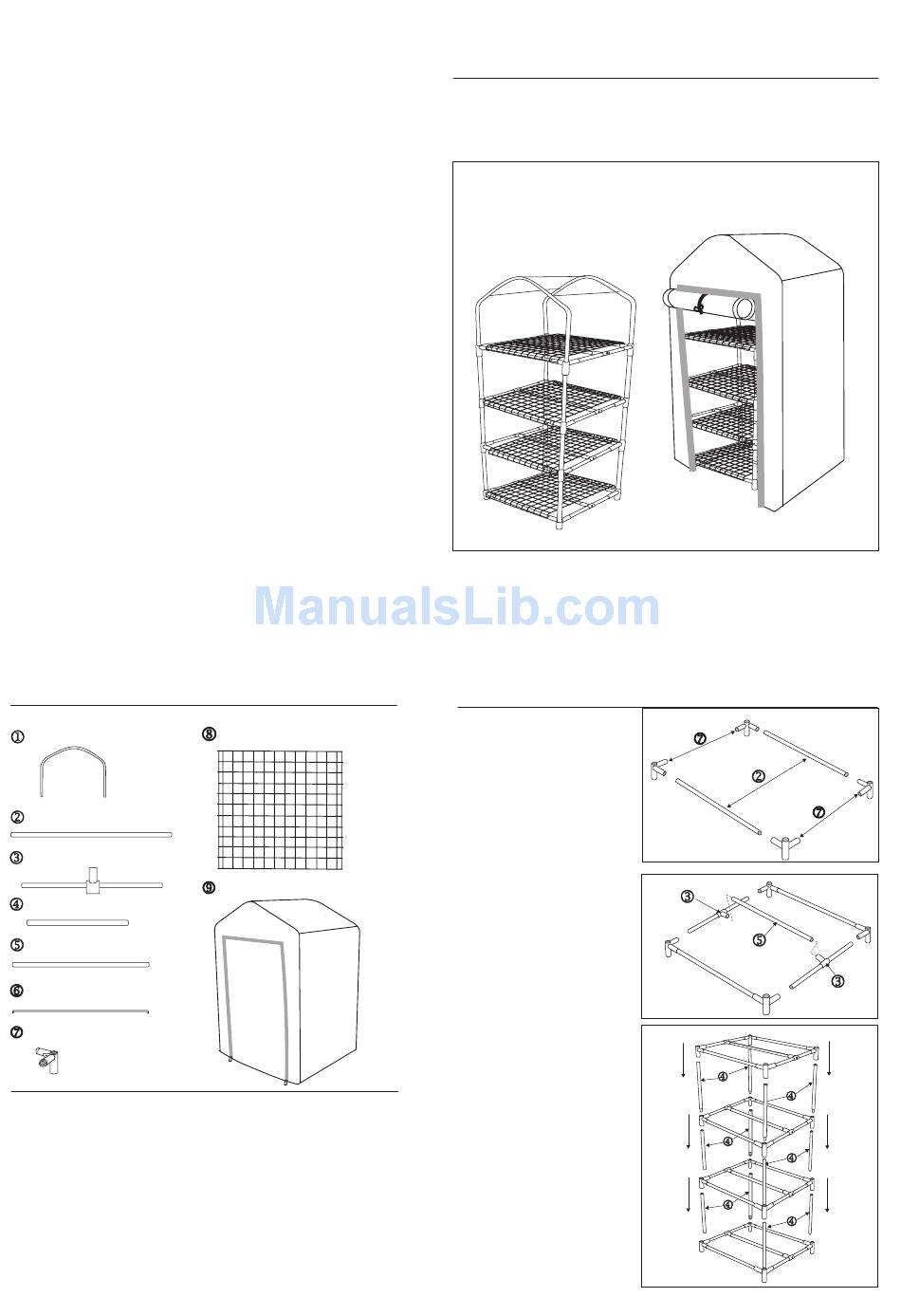

4 Tier Mini Greenhouse-Components
1. COMPONENT LIST
2 x Top Frame(Approx.1760mm)
8 x Long Tube(Approx. 850mm)
8 x T-Tube(Approx. 455mm)
12 x Short Tube(Approx. 333mm)
4 x Medium Tube(Approx. 840mm)
3 x Roof rib connecting wire
(Approx. 475mm,dia 3.8mm)
16 x Plastic Connector
2. FITTINGS
IMPORTANT
1.Read these instructions carefully and familiarise yourself with the procedure before
assembling the unit.
2. Check that you have all the component parts following the list above and familiarise
yourself with each part before proceeding.
3. Take all the fittings out of the plastic bag and separate them into their groups.
4. Ensure you have enough space to lay out all the parts before assembly.
5. To avoid scratching it is recommend that you assemble the unit on a soft level surface.
6. Please unzip front door before adding cover to frame
7. Not suitable for using heater inside or near this product.
-2-
Issue2 J.W. 11/05
4 x Mesh Grill (Approx. 815 x 495mm)
1 x Cover
ARGOS

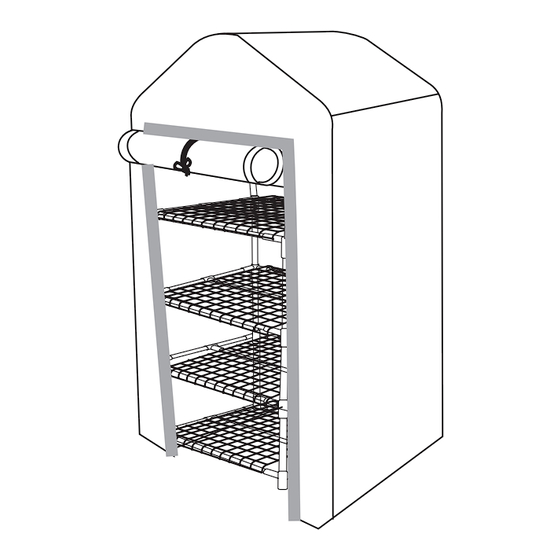

4 Tier Mini Greenhouse
7201833
4 Tier Mini Greenhouse - Assembly Instructions
3. ASSEMBLY INSTRUCTIONS
Stage 1- Fitting the frame
NOTE: There are many different kinds
of Tubes. Ensure you check before
assembly.
1. Insert four plastic connector(7) into
the ends of two long Tubes(2).
See Dia 1.
2. Insert two T-Tubes(3) into the end
of Medium Tube(5). Then insert
the plastic connector(7) into the ends
of T-Tubes(3). See Dia 2.
3. Follow the same method in Dia 1 and
Dia 2 to produce another three frames.
4. Insert eight Short Tubes(4) into the
plastic connector(7). See Dia 3.
Dia 1
Dia 2
Dia 3
9 of 12
720-1833
-3-
