Summary of Contents for TechLogix Network TL-C-HDCP
-

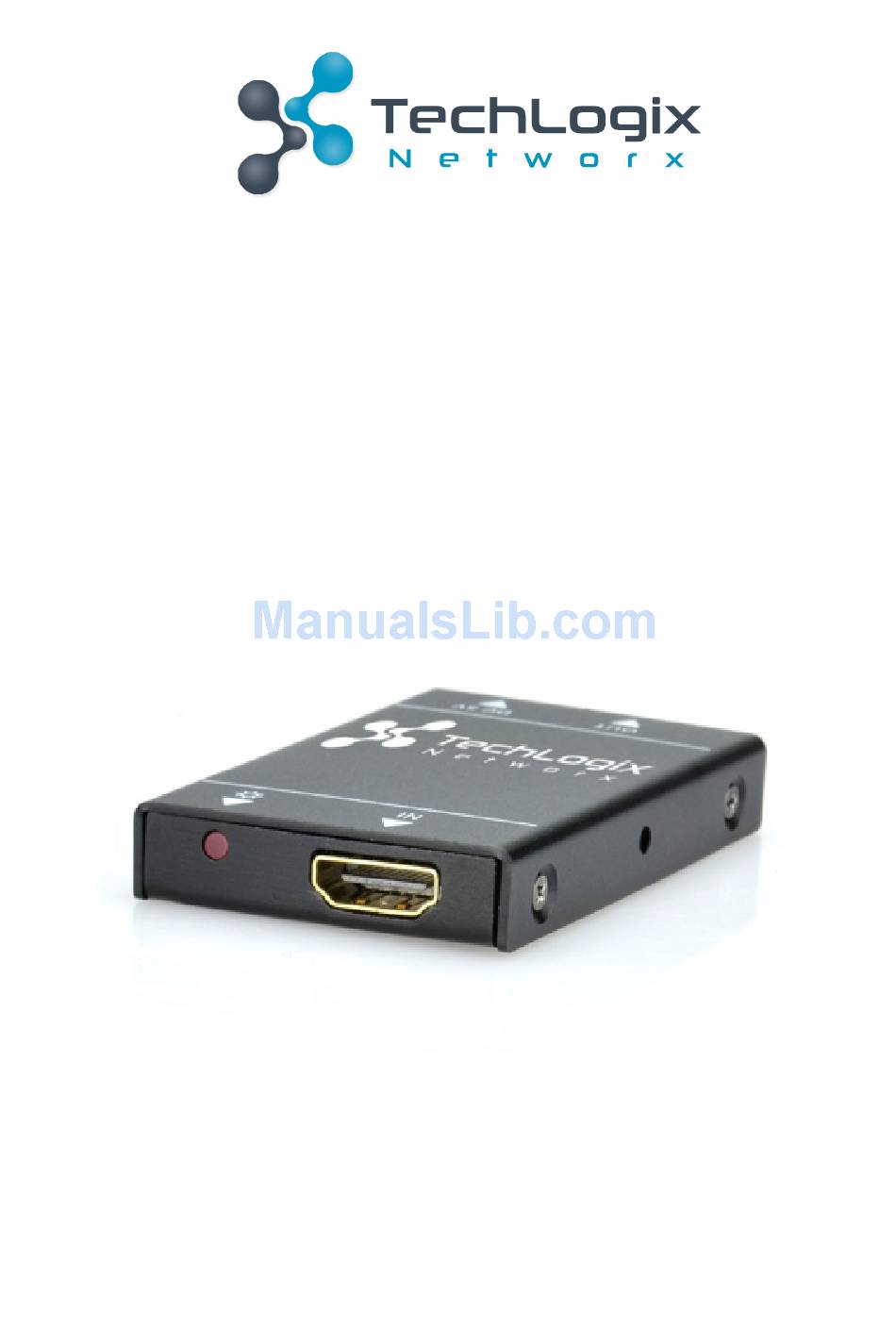

Page 1: User Manual
User Manual TL-C-HDCP HDCP Converter All Rights Reserved Version: TL-C-HDCP_160926... -
Page 2: Fcc Statement
TL-C-HDCP User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair. -
Page 3: Safety Precautions
TL-C-HDCP User Manual SAFETY PRECAUTIONS To insure proper operation, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 4 TL-C-HDCP User Manual 1. Introduction The TL-C-HDCP converts an HDMI signal supporting HDCP 2.2 to HDCP 1.4. The HDMI input supports HDCP 2.2 and the HDMI output supports HDCP 1.4. The unit supports a 4K@60Hz signal up to 15m, and transparently passes EDID signals.
-
Page 5: System Connection
HDTV HDMI Signal: Step1. Connect an HDMI source (e.g. a set top box) to the IN port of TL-C-HDCP; Step2. Connect an HDMI display (e.g. a LCD TV) to the OUT port of TL-C-HDCP; Step3. Plug DC 5V 1A power adapter into the power port of TL-C-HDCP. -
Page 6: Supported Resolution
TL-C-HDCP User Manual 4. Specification Input Output Input 1 HDMI IN Output 1 HDMI OUT 19-pin type-A female 19-pin type-A female Connector Connector HDMI HDMI Audio HDMI embedded HDMI embedded Audio audio audio General Transmission 4K@60Hz≤15m Distance 1080P≤20m Bandwidth 18 Gbps Audio Supports PCM（2.0, 2.1, 5.1, 6.1, 7.1）, Dolby Digital（5.1）... -
Page 7: Panel Drawing
TL-C-HDCP User Manual 5. Panel Drawing 6. Troubleshooting & Maintenance Problems Causes Solutions Color loss or blurry/ double image on the Poor quality HDMI cables Change the HDMI cable HDMI display No power Power up the unit Power led is off,... -
Page 8: After Sales Service
TL-C-HDCP User Manual 7. After-sales Service 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years. 2) Warranty coverage may be voided when: l The warranty period has expired...
