Fieldpiece
Job Link
Flex
Psychrometer
Probe
OPERATOR'S
MANUAL
Model JL3RH
01
Quick Start
1 Install the Fieldpiece Job Link™ app on your
mobile device and sign up for an account if
you're a new user.
2 Remove the single screw from the yellow bat-
tery cover and install 2 x AAA batteries.
3 Press
for 1 second to power on.
4 Open Measurements in the Job Link™ app and
favorite the probe to the tool manager.
5 Remove protective slip cover from tip.
6 View live measurements on your mobile device
up to 350 feet away.
Certifications
EN 300 328
FCC ID: 2ALHR003
RCM
WEEE
RoHS Compliant
02
Description

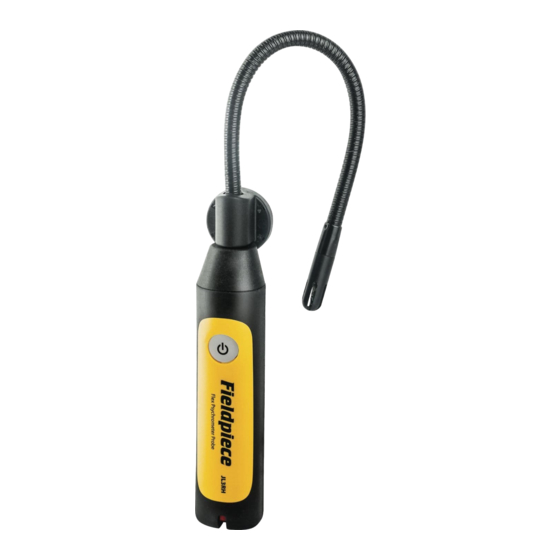

The JL3RH Job Link™ Flex Psychrometer
Probe sends air measurements directly to the
Fieldpiece Job Link™ app up to 350' away.
Measure %RH, dry bulb, wet bulb, dew point,
and enthalpy at a register/grille, in the duct, or
just walking around. Bend the flexible probe
and slide the magnet to conveniently configure
the JL3RH to your situation.
The rubberized protective housing is both
ergonomic and rugged for daily use. Flip the
switch and Job Link™ app immediately knows
which side of the system you're going to place
your psychrometer probe.
Use the long wireless range, strong magnet,
and flexible probe for quick and easy psychro-
metrics testing.
What's Included
Job Link™ Flex Psychrometer Probe w/Cover
2 x AAA Batteries
Operator's Manual
1 Year Limited Warranty
WARNING
Prevent damage, do not drill holes blindly into a plenum that
houses the evaporator or heat exchanger.
03
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or
modifications n ot e xpressly a pproved b y t he p arty r esponsible f or
compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to com-
puter or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
04

Limited Warranty

This probe is warranted against defects in material and workman-
ship for one year from date of purchase from an authorized Fieldpiece
dealer. Fieldpiece will replace or repair the defective unit, at its option,
subject to verification of the defect.
This warranty does not apply to defects resulting from abuse,
neglect, accident, unauthorized repair, alteration, or unreasonable
use of the instrument.
Any implied warranties arising from the sale of a Fieldpiece
product, including but not limited to implied warranties of merchant-
ability and fitness for a particular purpose, are limited to the above.
Fieldpiece shall not be liable for loss of use of the instrument or other
incidental or consequential damages, expenses, or economic loss, or
for any claim of such damage, expenses, or economic loss.
State laws vary. The above limitations or exclusions may not apply
to you.
Test Equipment Depot - 800.517.8431
99 Washington Street, Melrose, MA 02176
TestEquipmentDepot.com
© Fieldpiece Instruments, Inc 2017; v04
