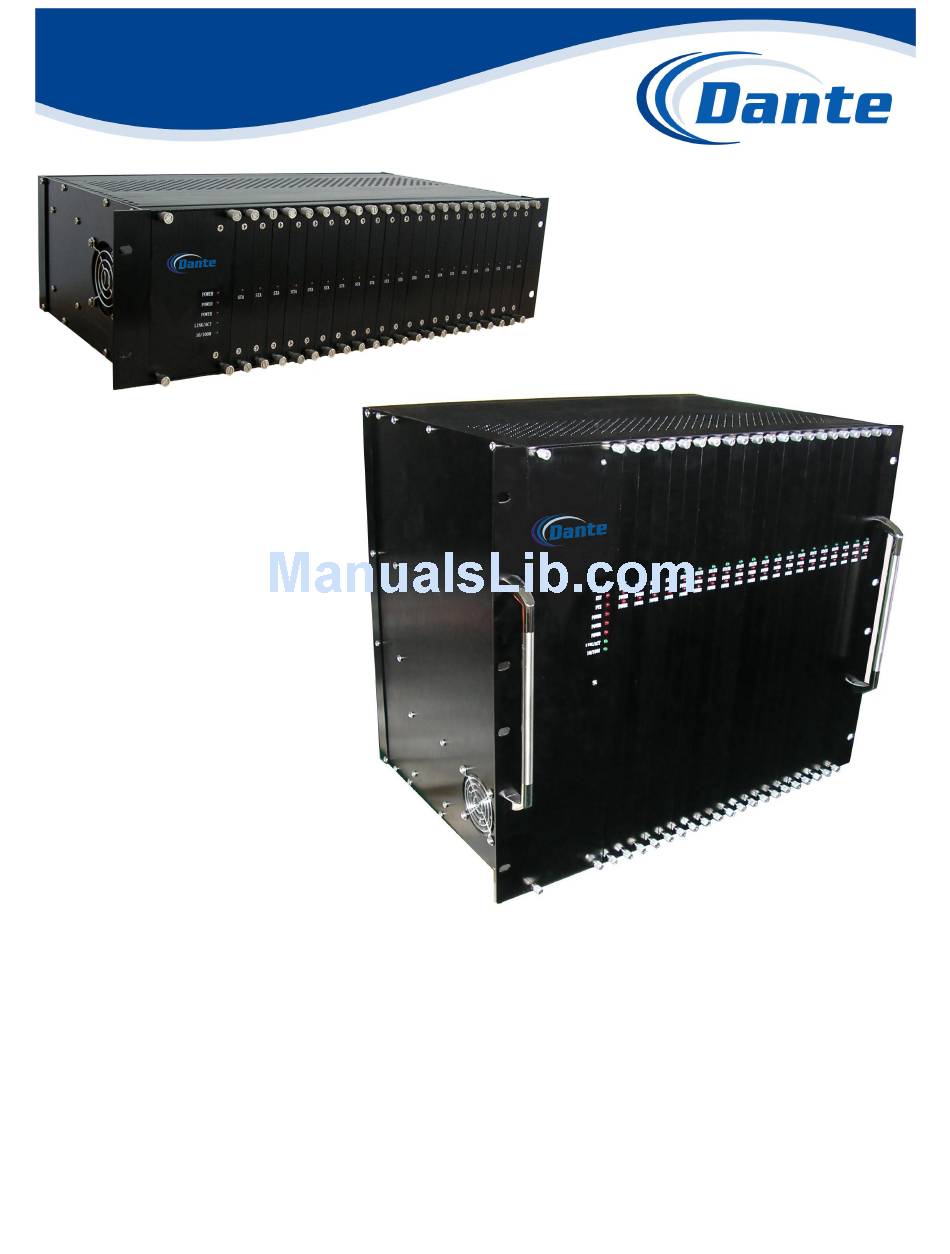

- Page 1 DLV4300B / DLV4900E Matrix Switchers Installation and Operations Manual Model Number: DLV4300B and DLV4900E Description: Matrix Video Switchers...
- Page 2 Important Safety Introductions Please read the following content before user installs our products. Only qualified technician or installer should attempt the installation of this unit. 1． ． ． ． Do not block or cover the ventilation openings in the enclosure. Place the unit at least 2 inches/5cm away from the wall to prevent it from overheating.
-
Page 3: Table Of Contents
Content Part I Matrix system Introduction-------------------------------------------------------------------------------------------------------5 Introduction----------------------------------------------------------------------------------------------------------------------------5 System Function---------------------------------------------------------------------------------------------------------------------6 Part II Matrix Components------------------------------------------------------------------------------------------------------------------8 Power Module--------------------------------------------------------------------------------------------------------------------------8 CPU----------------------------------------------------------------------------------------------------------------------------------------8 Video Input Module-------------------------------------------------------------------------------------------------------------------8 Video Output Module----------------------------------------------------------------------------------------------------------------10 Protocol Module----------------------------------------------------------------------------------------------------------------------11 Case Size--------------------------------------------------------------------------------------------------------------------------------11 Part III Installation and Connection-------------------------------------------------------------------------------------------------------13 System Installation------------------------------------------------------------------------------------------------------------------ 13 Case Components--------------------------------------------------------------------------------------------------------------------13 Power Connections------------------------------------------------------------------------------------------------------------------14 CPU Connection----------------------------------------------------------------------------------------------------------------------14 Video Input Module Connection--------------------------------------------------------------------------------------------------15 Video Output Module Connection------------------------------------------------------------------------------------------------16 Part IV... - Page 4 Set Up Monitor displayed on keyboard------------------------------------------------------------------------------21 Switch camera into monitor---------------------------------------------------------------------------------------------22 Control front equipment -------------------------------------------------------------------------------------------------23 Control Pan/Tilt through Keyboard-----------------------------------------------------------------------------------23 Control Camera--------------------------------------------------------------------------------------------------------------23 Set Up preset-----------------------------------------------------------------------------------------------------------------24 Control Auxiliary------------------------------------------------------------------------------------------------------------24 Run auto Switch Group--------------------------------------------------------------------------------------------------------------24 Set Up system Synchronous Switch--------------------------------------------------------------------------------------------24 Alarm Confirmation(Clear)----------------------------------------------------------------------------------------------------------25 Part V Matrix Menu Program----------------------------------------------------------------------------------------------------------------26 Enter into Menu------------------------------------------------------------------------------------------------------------------------26 System Deploy setting---------------------------------------------------------------------------------------------------------------27 Date and Time setting----------------------------------------------------------------------------------------------------------------28...
-
Page 5: Matrix System Introduction
Part I Matrix System Introduction Warning: 1) matrix switcher with alarm is only used as a means of interfacing alarm equipment to other devices such as Digital Video Recorder to call out cameras. 2) In order to prevent from damaging equipment, a qualified professional must install and maintain matrix switcher according to user introductions in manual. -
Page 6: System Function
System Function: Menu Operation: User may program matrix system through Keyboard and monitor. Program menu would be displayed on Monitor, LCD menu will offer following function: system status display, system setting save or Set up. Video Switch: Matrix can switch any camera video signal to any monitor, user may set camera preset through matrix, user may Set up any presets on any monitors, switch is operated by manual or system auto switch, synchronous switch, alarm switch and timed set up presets. - Page 7 RS-232/485 Communication Port: Matrix system offer one RS-232 port which is used as I/O port. Matrix system offers 3 RS-485 ports which connect to keyboard, PTZ camera and audio matrix. Receiver/driver Control The matrix switcher control P/T, lens, speed dome, and alternate function by receiver/driver which is built in the case.
-
Page 8: Matrix Components
Operation Authorities The keyboard system provide operator password login function. User has to login with right password, and then enable to control the system. Password login may be set up to 16 different users. When the keyboard with password login function control matrix switcher , the password of the matrix should cancel. -
Page 9: Video Input Module
The back panel of the matrix (see the image) offer the different communicate ports of the keyboard, digital receiver/driver, alarm and so on. Matrix system receives the input signals of keyboard, PC and Alarm via the control port. Different dimension matrix have different CPU, More specs, please see the pictures as below, 2.3 Video Input Module（... -
Page 10: Video Output Module
2.4 Video Output Module（ （ （ （ VOM） ） ） ） The connection should be finish before the power is on. Note: All video links should be used with high-quality BNC plug, (3U matrix switcher with DB15 port),75Ω video cable. Video output has to connect the 75Ω load terminal. Intermediate unit must be set to high resistance. -
Page 11: 2.5 Protocol Module
2.5 Protocol Module Matrix system built in muti-protocol module, user may set the matrix switcher’s control protocol and communication rate. ( the factory standard is Pelco-D, communication rate is 2400Bit/s). The matrix switcher of operation method as follows, 3U matrix switcher : Turn on the two screws on the left of the case with three LED, then use will see the PCB board, as below, 9U matrix switcher : Turn on the four screws on the left of the case with eight LED, then use will see the PCB board , as below,... -
Page 13: Installation And Connection
Part III Matrix Installation and Connection Warning: 1) matrix switcher with alarm is only used as a means of interfacing alarm equipment to other devices such as Digital Video Recorder to call out cameras. 2) In order to prevent from damaging equipment, a qualified professional must install and maintain matrix switcher according to user introductions in manual. -
Page 14: Power Connections
3.3 Power Connection When all system module and external equipment are connected well, please connect the AC power line and the module of power, Please make sure input power which is accordance with default power before power on. 3.4 CPU PCB Connection The CPM of the matrix switcher provide three RS485 port which are used for connecting the system’s control equipment. -
Page 15: Video Input Module Connection
3.5 Video Input Connection There are two styles of matrix switchers, all video input modules have been installed in the cases by order. All video input modules should be installed in order for convenience of maintenance. The first camera should be connected to the BNC of video input module, which is on the left of the case. -
Page 16: Video Output Module Connection
75-5 About 370 M 75-7 About 500 M 75-9 About 680 M 3.6 Video output Connection There are four styles of the matrix switcher, all video input modules have been installed in the case by order. All video input modules should be installed in order for convenience of maintenance. The first camera should be connected to the BNC of video input module, which is on the left of the case. -
Page 17: System Operation
Part IV Matrix Switcher Operation Warning: 1) matrix switcher with alarm is only used as a means of interfacing alarm equipment to other devices such as Digital Video Recorder to call out cameras. 2) In order to prevent from damaging equipment, a qualified professional must install and maintain matrix switcher according to user introductions in manual. - Page 18 Keyboard setting Menu To press “MPX” to page up and down or press “auto” to page up and down menu until user may see following menu on LCD:...
- Page 19 Other function setting menu for keyboard To press “MPX” to page up and down or press “auto” to page up and down menu until user may see following menu on LCD:...
-
Page 21: Monitor Display
Monitor screen display: Matrix system is characterized with screen title display, there are monitor number, camera ID, camera title, monitor status, date and time (alarm information, switch time or status information) displayed on monitor, these title is displayed or is not displayed on screen according to requirement, even user may set position where title is located on screen. -
Page 22: Switch Camera Into Monitor
For example: To Set up number 2 monitor position 1) Press “clear” key. 2) Press number 2 key; at this time, this position is the place which is being monitored. To Set up Monitor The procedures are following: 1) To press “clear” to clear screen number. 2) To input monitor S/N, the number would be displayed on LCD 3) To press “MON”... -
Page 23: Control Front Equipment
Front end equipment control: To control P/T, Lens, Presets and other function of dome camera is valid until dome is displayed up on monitor . Joystick Operation: The joystick of keyboard controls P/T, when joystick is moved to right, the dome also moves to right, when joystick is moved to left, the dome also moves to left. -
Page 24: Set Up Preset
To Set Up preset: Preset is a scene set in advance, whatever position camera is on, when user Sets up presets, speed dome or receiver/driver will move to preset position, at the same time, camera lens also auto adjust image size, preset image would be displayed on screen automatically, matrix system supports max 128 presets. -
Page 25: Alarm Confirmation(Clear)
Alarm Confirm / Clear： ： ： ： Once system send alarm signal, image would be displayed on monitor, and alarm information would also be displayed on monitor. If this alarm spot need to be cleared manually, user need to input command through keyboard to clear it. Alarm operation: 1. -
Page 26: Matrix Menu Program
Part V Matrix menu program Warning: 1) matrix switcher with alarm is only used as a means of interfacing alarm equipment to other devices such as Digital Video Recorder to call out cameras. 2) In order to prevent from damaging equipment, a qualified professional must install and maintain matrix switcher according to user introductions in manual. -
Page 27: System Deploy Setting
Press ”MPX” to move up cursor or press “Auto” to move down cursor, after moving to option user need, to press” Enter” to enter into sub-menu. System configuration setting: The sub-menu is for setting max input and max output, the following picture is for this sub-menu. -
Page 28: Date And Time Setting
4. Press "MPX” key to move up cursor or press "auto” key to move down cursor to” video output range: end”, then press”16” and press “enter” to confirm it. 5. Press “DVR” key to return to superior menu. Date and Time setting: This menu is for setting system date and time, following picture is this menu: To press “MPX”... -
Page 29: Alarm Association Setting
1) Title position is optional: bottom, top; 2) Character, time, character and time, blank are optional for display model; 3) To move cursor to position need to be changed, then press “enter” to choose display model. Alarm association setting: Matrix system can connect to alarm input or alarm output equipments, user may combine alarm signal with video signal together through programming, following picture is sub-menu. -
Page 30: Sequence Switch
Warnings in the process of setting: 1）User set all data through keyboard, then press “enter” to confirm it. 2）If camera of “video association” is less than 5 pieces, please fill “0” in redundant S/N of video association. 3）Regarding character modification, after modifying character, user press "enter” to confirm it directly. -
Page 31: Group Switch By Order
Group Number: 1-16 is optional, max up to 16 groups. Output: video output channel, namely monitor number. Input: video input channel, namely camera number. Operation method: To move cursor to option need to be set, then input number through keyboard and press “enter”... -
Page 32: Alarm Recording Inquiry
Alarm record inquiry: Matrix switcher has alarm recording function, when alarm happens, matrix can record alarm time and date according alarm order, save max 100 latest recording. Below is alarm record inquiry menu. S/N: alarm record S/N Alarm No.: alarm address Alarm time: means... -
Page 33: Appendix
Part VI Appendix Warning: 1) matrix switcher with alarm is only used as a means of interfacing alarm equipment to other devices such as Digital Video Recorder to call out cameras. 2) In order to prevent from damaging equipment, a qualified professional must install and maintain matrix switcher according to user introductions in manual. - Page 34 Keyboard to Speed dome camera: 1. To input preset No., then press “SHIFT+CALL” to set dome’s preset. 2. To input preset No., then press “CAM” to Set up preset. 3. Input preset No., then press “MPX” to delete dome’s preset. 4.
-
Page 35: Appendix B Title Pc Terminal Software Application
Appendix B Title editing PC terminal software application: This software is designed to operate matrix conveniently through PC, its operation includes matrix menu operation, matrix switch, alarm operation, matrix capacity setting, date and time setup, character position setup, alarm parameter setup, sequence and group switch, title setting, at the same time, user may set password protection for keyboard to camera, keyboard to monitor and monitor to camera 1. - Page 36 2.Software Un-installation To un-install software in file path, the interface as follows: 3.Connection between Computer and matrix To connect matrix and computer through RS232 communications, please refer to following picture. RS232 port of matrix identification:2—receive, 3-transmit, 5-underground; RS232 port of PC identification: 2- receive, 3- transmit, 5-underground.
- Page 37 switcher 4.Software Run To click Matrix set.EXE in file path to run software, refer to following picture.
- Page 38 User should confirm to use communication port according to project situation, communication baud rate should be 9600BPS for computer, then click “confirmation” to enter into operation interface.
- Page 39 5. Software Operation: 1. Matrix Operation 1) OSD Operation: To enter into OSD menu, there is matrix setting menu on No.1 monitor, to move up and down cursor to control menu option, user may input data user needs, then to click “enter”...
- Page 40 2. Matrix Capacity: To click “matrix capacity” to read capacity setting, user may also set up matrix starting and ending number of input and output, then click ”sending” to send information to matrix.
- Page 41 3. Date and Time Setting: User may set matrix date and time through entering into “date and time” option, then send data to matrix, all set information would be saved in matrix.
- Page 42 4. Title setting: User may set title and time for each channel video, at the same time, user may change title position according to requirement, after entering into sub-menu, content as follows: Display information: character, time. Number of video output stands for monitor No. after user finish setting, to send information to matrix, setting is done.
- Page 43 5. Alarm Setting: Alarm Address: user may choose number from 1-128 Video Output: Camera image of alarm association would be output from NO.1-16 monitor Dwell Time: user may set time from 1-99 seconds. Association start: alarm valid and alarm invalid. Video Input: Max 5 association input, user may choose camera from 1-256.
- Page 44 6. Sequence Switch: After user enter into option, user will see following interface: This option is set based on video output, there are max 32 images displayed one by one on one monitor. The left number in “video input S/N” is switched order of 32 video signals, the right number is camera No.
- Page 45 Group S/N: user may set number from 1 to 16, max is 16 groups. Output: Video output channel, namely monitor No.. monitor, No.1,No.2…..No.32 Input: Number right “Video output S/N” is video input source, user may choose camera number from 1-256. Start group switch: If user need to display above setting information on monitor, user may press “GRP”...
- Page 46 8. Title setting: The title setting interface is following picture, user may set camera title through this software, after inputting editing information, user need to choose camera ID to click “send” to send information to matrix. Camera information displayed on monitor is setting information.
- Page 47 9. Keyboard to camera password protection: After entering into menu, user will see following menu: The software right is keyboard number ( 0-15), the software left is camera ID, transverse coordinate of camera address is 0—9, portrait coordinate of camera address is 0—250. user may set some keyboard which has password protection for all cameras, “Y”...
- Page 48 10. Keyboard to monitor password protection: After entering into menu, user will see following menu: In the above picture, “√” has password protection, blank has not password protection. If user set “√”, namely, keyboard authorized may see image on appointed monitor.
- Page 49 11. Monitor to camera password protection: Please refer to following picture: The software right is monitor No., the software left is monitor to camera password protection. User may set some monitor which is authorized to display camera address, “Y” has authorization, “N” has not authorization. If user set “Y”, user may switch images to authorized monitor.
-
Page 50: Appendix C Equipment Extended And Application
Appendix C Extended Equipments and Application: 1. System Master keyboard When user use matrix system, user should choose master keyboard to control matrix system. DLV6330 series is one kind of full function master keyboard, it is connected to RS-485 (KEY) port of matrix. User may operate all function and program, set up matrix through it, including switch audio signal, control front receiver/driver, set up and program menu. - Page 51 6 Receiver/driver User may connect matrix to receiver/driver to control P/T up and down, right and left, zoom in and zoom out, focus and Iris, user may control assistant switcher, rain brusher, light and so on. 7. PTZ camera PTZ camera is all in one camera, it can receive keyboard’s control signal to control camera up and down, left and right, zoom in and zoom out, focus and Iris control, it can revolve 360 degree, and set up or Set up 128 presets, some PTZ camera can support pattern, Privacy mask, menu setting, matrix can control different PTZ camera through different ID.
-
Page 52: Appendix D Typical Diagram
Appendix D Typical Connection...
