Model: RAFNG

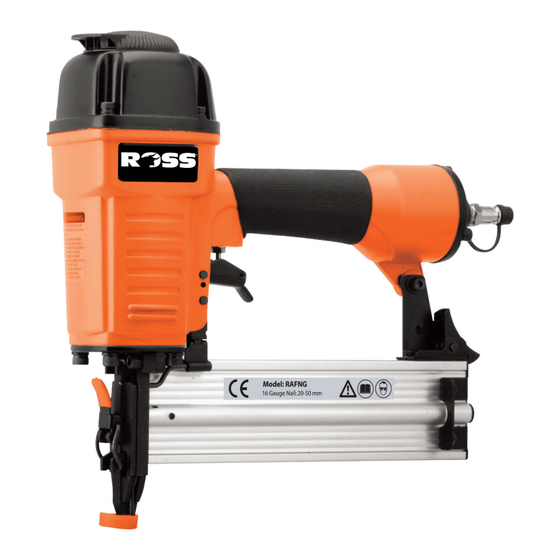

50MM FINISHING NAILER
• •
Protect yourself and others by observing all safety information, warnings, and cautions. Failure to
comply with instructions could result in personal injury and/or damage to product or property.
Please retain instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAFNG and is the answer not in the manual?

Questions and answers

Related Manuals for Ross RAFNG

Summary of Contents for Ross RAFNG

  • Page 1 Model: RAFNG 50MM FINISHING NAILER • • Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference.
  • Page 3 NOSE NAIL DISCHARGE...

  • Page 4: Specifications

    SPECIFICATIONS Nail capacity (Qty): 90 pcs Nail size: 20mm (3/4”) to 50mm (2”) 16 Gauge finishing nails Recommended operating pressure: 4-7 bar (60 -100 PSI) Maximum pressure: 8.3 bar (120 PSI) Air inlet: Nitto style connector Dimensions: 80 x 280 x 303mm Weight: 2.3 kg SAFETY WARNING!!! READ AND UNDERSTAND ALL OF THE OPERATING INSTRUCTIONS, SAFETY...
  • Page 5 SAFETY ... CONT DO NOT EXCEED 120 PSI 8.3 BAR. Do not exceed maximum recommended air pressure 120 psi (8.3 bar 8.5 kgf/cm2). Never connect the Nailer to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm2) as the nailer can burst. NEVER POINT NAILER TOWARD YOURSELF OR ANYONE ELSE.
  • Page 6 SAFETY ... CONT DO NOT DRIVE FASTENERS INTO THIN BOARDS OR NEAR CORNERS AND EDGES OF WORK PIECE. The fasteners can be driven through or away from the work piece and hit someone. NEVER DRIVE FASTENERS FROM BOTH SIDES OF A WALL AT THE SAME TIME. fasteners can be driven into and through the wall and hit a person on the opposite side.

  • Page 7: Maintenance

    OPERATING INSTRUCTION ..CONT ● Keep air filter clean. A dirty filter will reduce the air pressure to the Nailer causing a reduction in power and efficiency. ● Be sure all connections in air supply system are sealed to prevent air loss. WARNING!: Always disconnect the Nailer from the compressed air before loading.

  • Page 8: Troubleshooting

    TROUBLESHOOTING WARNING: IF ANY OF THE FOLLOWING SYMPTOMS APPEARS DURING YOUR OPERATING, STOP USING THE NAILER IMMEDIATELY, OR SERIOUS PERSONAL INJURY COULD RESULT. Only a qualified persons or an authorized service centres should perform repairs. SYMPTOM PROBLEM SOLUTIONS Air leak near top of Nailer 1.
  • Page 9 Nailer skips fasteners. 1.Worn bumper or damaged 1.Repalce bumper or pusher spring. spring. 2.Dirt in front plate. 2.Clean drive channel on front plate. 3.Dirt or damage prevents 3.Magazine needs to be cleaned. fasteners from moving freely in magazine. 4.Worn or dry O-ring on pis- 4.O-ring need to be replaced.And ton or lack of lubrication.
  • Page 11 NOTES...

  • Page 12: Warranty

    WARRANTY: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
