Summary of Contents for Swift Info Technology SGVT-01

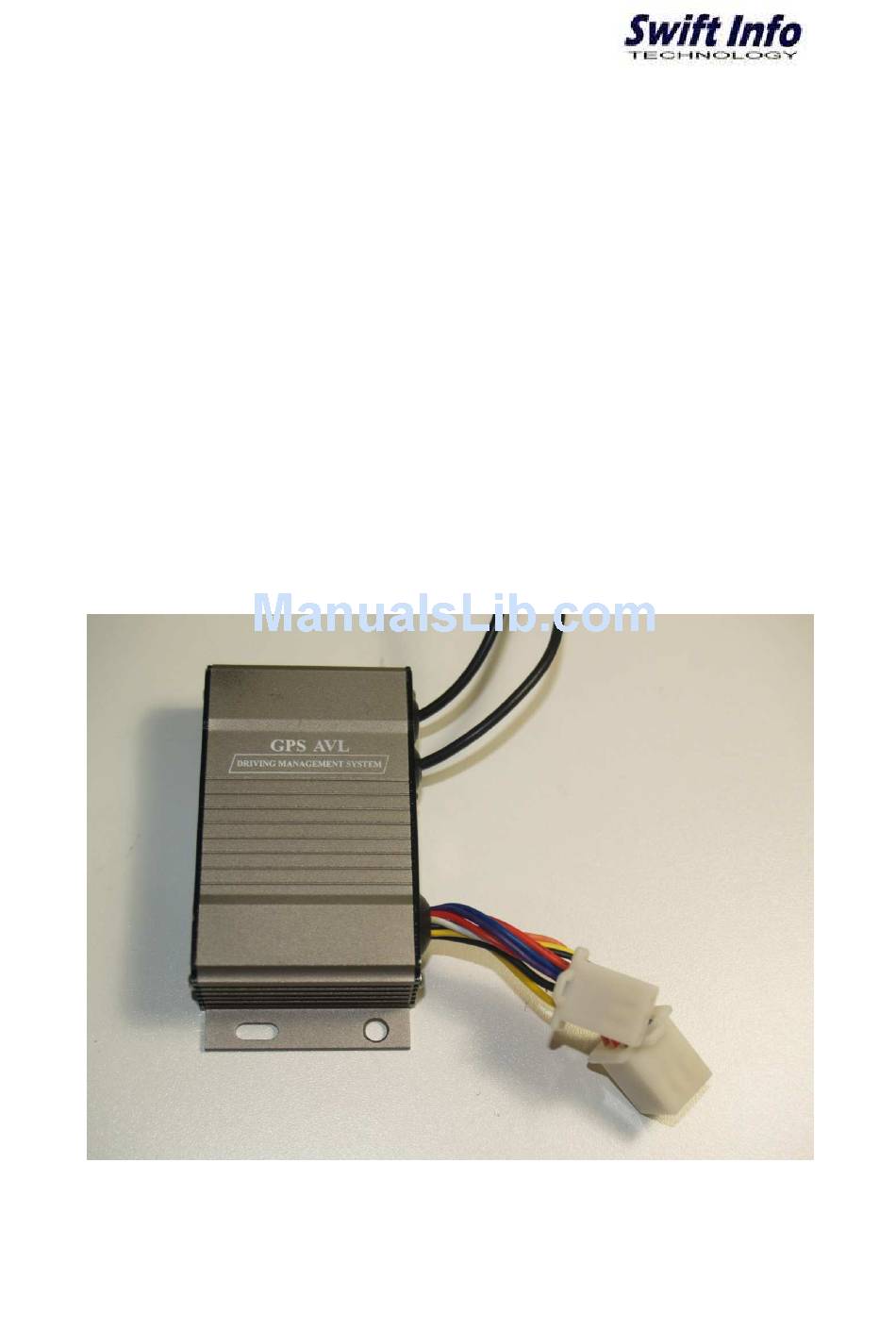

- Page 1 SGVT-01 GPS Vehicle tracker’s User Manual （GPS+GPRS+GSM） Product Manuals Version 1.0...
- Page 2 Attention before use this terminal: Please mount the device steadily on the flat place before using; Please make sure the voltage value is right before connecting with battery, and placing the wires to where shouldn’t be trodden; Please power off when plugging or taking out of any module or connector; Please keep the device dry and don’t let any liquid fall into the device in case any damage caused in the device or circuit;...
-
Page 3: Table Of Contents
Catalog 1、Products Introduction ··························································································· 4 2、Main Features ······································································································ 4 3、Detailed Specifications ······················································································· 5 3.1、Hardware parameters ····················································································· 5 3.2、Other ················································································································· 6 4、Interface definition ································································································ 6 4.1、Power Interface ························································································ 7 4.2、Extension Interface ·················································································· 7 5、Intelligent Terminal Installation ············································································· 8 5.1、Terminal Installation Tips ······································································· 8 5.2、Installation steps and parameter settings ··············································... -
Page 4: 1、Products Introduction
1、 Products Introduction SGVT-01 G GPS smart terminal (mobile user terminals) which PRS/GSM model built-in Industrial GPRS / GSM communication module and the latest SiRF-Star III high sensitivity GPS receiver positioning module, Using dual-mode GPRS and SMS communication. Terminal operate stable, reliable, full of features and many interfaces. -
Page 5: 3、Detailed Specifications
19、 SMS alarm notification 20、 Built-in 16MB Flash, can save 30 thousand blind track data 3、 、 、 、 Detailed Specifications 3.1、 、 、 、 Hardware parameters Operating Voltage 8VDC～36VDC Operating Current 50mA~160mA GSM Module Containing frequency GSM 900/1800 Containing GSM 850/900/1800/1900Mhz (Customizable) Communication UDP/TCP(Customizable) -
Page 6: Other
Speed limit 515 km / sec (1000 knots) max. Acceleration limit Less than 4g 3.2、 、 、 、 Other Operating -20°～ 70° C Temperature Storage -30°～ 85° C temperature 5% ～ 95% No coagulation Humidity Terminal size 101 mm × 50mm × 24mm Built-in battery Not less than 2 hours continuous work Red: the host state;... -
Page 7: Power Interface
4.1、 、 、 、 Power Interface Picture： ： ： ： Pin Description colors Function / Connection Method Power input is, the working voltage of 9VDC ~ 34VDC, then the positive car battery; black Power input negative, then the negative car battery; yellow ACC test line, take the car keys ACC line;... -
Page 8: 5、Intelligent Terminal Installation
SOS Alarm input, low level alarm is triggered, SOS alarm button direct access line; SOS alarm indicator signal, drive led lights, when alarm is brown triggered, led lamp lights； HV1 (detection of a high, defined as the illegal open / illegal start moving signal detection line), input is voltage white detection, detection voltage range of 5VDC ~ input supply... -
Page 9: Installation Steps And Parameter Settings
with customer demand; 4、On-site installation of GPS vehicle terminal before the test in the indoor environment, the GPS car terminal and the set of accessories (to be installed accessories to customers) connected with a regulated power supply or backup battery power to the GPS car terminal, GPS car terminal and to ensure All accessories can work. -
Page 10: 6、Standard Accessories
seat, normal, circuit board began charging, the indicator lights; Select a good car power access points, the external input power supply terminal access； Flashing red and yellow light are normal, you can set the start text messaging terminal, the specific set up instructions are as follows: S, * APN *, * IP Address *, * port number * phone number * *, * No * SMS * SMS Verify Password * APN: import address carrier network, such as CMNET so. -
Page 11: 7、Common Faults
Accessories Pictures 七 七 七 七 、 、 、 、 Common Faults GPS intelligent terminal fault keys Serial Failure Fault diagnosis / troubleshooting phenomenon Unable Detection of power supply is correct access access equipment; network Detection of power line fuse is broken； Detection of the power cord and car power terminal connection is loose or office;... - Page 12 damaged If the above test are normal, fault has not ruled out, please contact with equipment suppliers to solve; Check whether the car was in the GSM signal blind area, blind, or over time from another observation, to judge; Detection of yellow LED lights if the scene is Unable about 1 second flash once, if not normal, to access GPRS...
-
Page 13: 8、Optional Accessories
out, please contact with equipment suppliers to solve Replacement handle reset; Can not set, Replacement of the host to reset； set the failure Replacement confirmed by the results, determine the reasons for failure. 8、 、 、 、 Optional accessories 8.1、 、 、 、 9PIN extension line 8.2、...
