Summary of Contents for Ultrative A1

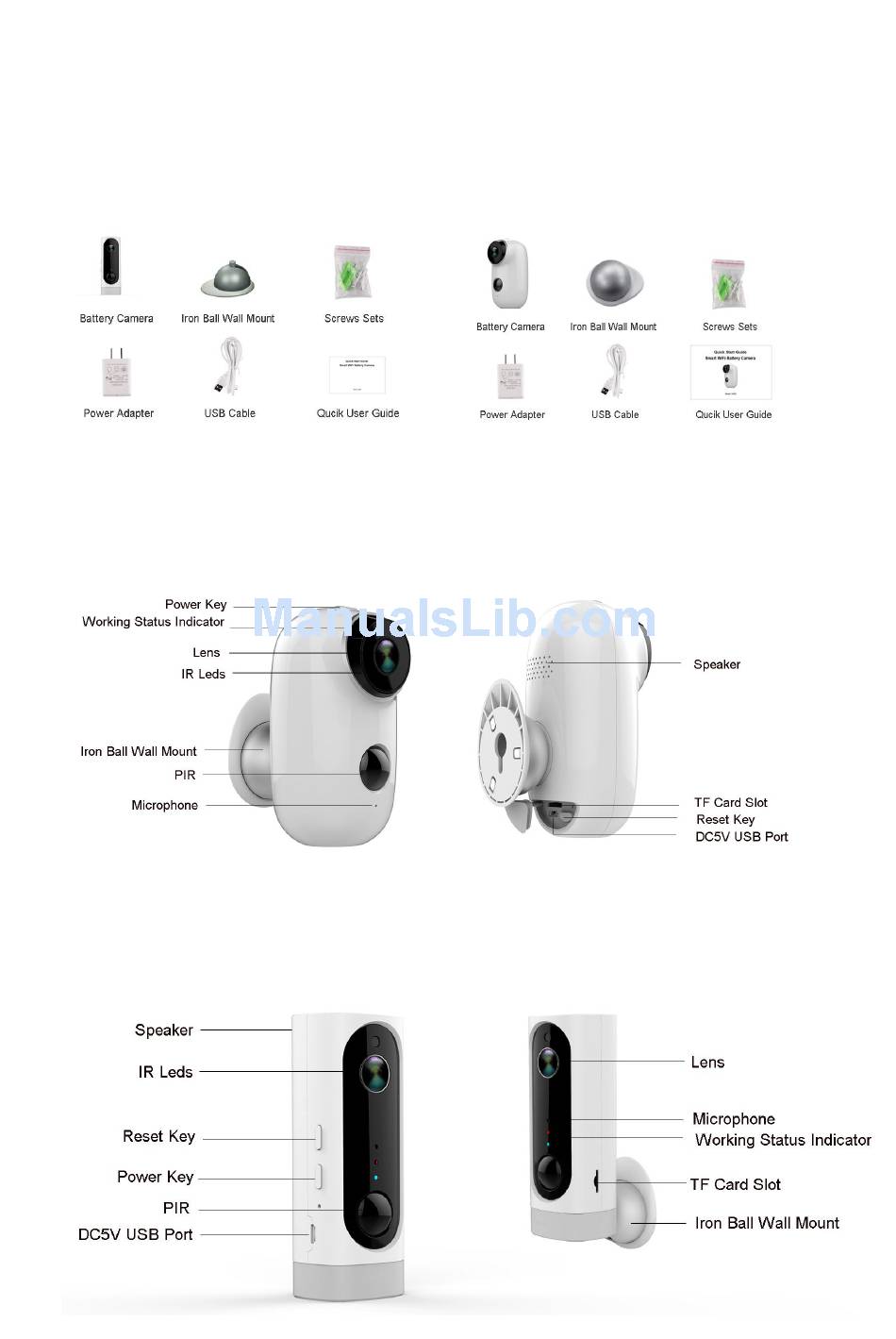

- Page 1 Smart WiFi Battery Camera Quick User Guide 1. Packing list A1 Packing list: A3 Packing list: 1pcs battery Camera, 1pcs bracket, 1pcs screw sets, 1pcs power adapter and USB cable; 1pcs User Guide 2. Product Details...
-
Page 2: Set Up Camera
Camera key Operation Power Key Press and hold for 5 seconds, it will power on/power off Power Key Press 1 second, it will wake up the camera Reset Key Press and hold for 5 seconds, it will restart 3. Set up Camera 3.1 Power on the camera Press the power key, as beside picture shown and and hold on for 5 seconds, it will power on... -
Page 3: Add Camera
4. Install Cloudedge APP 4.1 Search “Cloudedge”in app store or google play, or scan below QR Code to download and install on smart phone. 4.2 Register Account： Launch the app from your smart phone and click the “SIGN UP” button. Follow the on-screen instructions to register one account and login 5. - Page 4 5.1.1 Input the WiFI SSID name and password 5.1.2 Follow the on screen instruction, put the QR code in front the camera lens 15cm. If the scan is successful, the device will have “bugu” sound prompt. Please click “Next”. If you fail, please go back to the next step and start again.
- Page 5 For Android phone, just follow the “NEXT”, and “CONNECT” to add camera. For iPhone, added one more step, manually open the settings and select “STRN_XXXXXXXX” WiFi to do WiFi configuration work. 5.3 View Help when unable to connect When add camera in QR Code or AP mode, If problems or failed connection, please view help as below pictures shown:...
-
Page 6: Device Menu
LED Status Camera Status Slow blinking Red Awaiting WiFi Connection Fast blinking Red WiFi Connecting Solid on Red Network is abnormal Solid on Blue WiFi Connected Description Solution and operation Unable to connect 1) Check your WiFi name and password 2) Ensure your WiFi is 2.4G, not support 5G 3) Ensure your camera and phone close to router Reset... - Page 7 1. Add camera 12. Video Flip option 2. Camera type icon 13. Share option 3. Camera Name 14. Record button 4. Alarm Message icon, red dot means alarm 15. Snapshot button happened 5. Live View button 16. Speaker button, hold it then can speak 6.
- Page 8 Detecting Distance *NOTE: Higher sensitivity offers longer Sensitivity (For moving detecting distance, but it would lead to and living things) more false alarms. You are advised to set Up to 4 meters (13ft) up the sensitivity level to “Low” or “Medium”...
-
Page 9: Camera Installation
7.2 Cover the Monitoring Area When installing the camera, it’s not suggested to make the PIR sensor vertically face the moving object, otherwise it may not detect the motion events. It is suggested to make the angular between PIR sensor and detected object larger than 10 degree. FYI: The PIR sensor’s detecting distance: 20ft (in default) The PIR sensor’s detecting angle: 120°...
