Summary of Contents for SSCOR Duet 2314 series

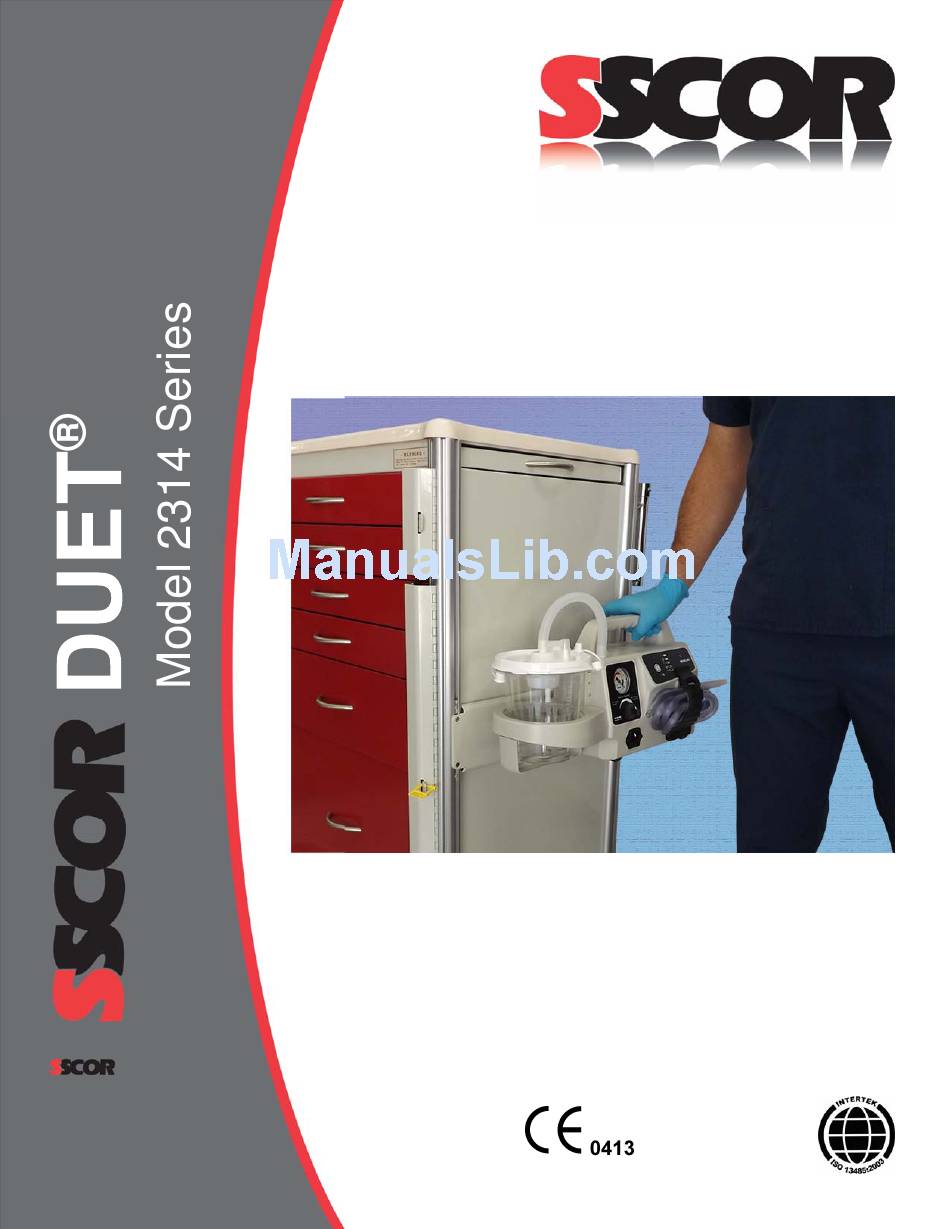

- Page 1 Clearing The Airway Is Our #1 Priority Operating Instructions & Maintenance Manual , INC. 11064 Randall Street Sun Valley, CA 91352 USA Tel 1+818-504-4054 www.sscor.com Tel 1+800-434-5211 shop.sscor.com Email: marketing@sscor.com techsupport@sscor.com...
-
Page 2: Caution-Notice
(ba ery only). Grounding reliability can only be achieved when connected to an equivalent receptacle marked “Hospital Only” or “Hospital Grade” SSCOR Duet® Model 2314 Series ‐ AC suc on unit with ba ery back‐up SSCOR DUET - Model 2314 Series Rev W (02/17) -
Page 3: General Description
Model 2314 Series Ba ery Replacement Policy SSCOR will replace any SSCOR Duet ba ery which fails to operate the pump to specifica ons for a period of three years from the date of purchase. Verify the condi on of the ba ery per the ba ery test on Page 6 in this Opera ons Manual. -
Page 4: Description Of Symbols
Green / Yellow LED = High Yellow LED = Half Control Panel Yellow / Red LED = Low Red LED = Ba ery Depleted Put device back on charge Control Panel Push On / Push Off SSCOR DUET - Model 2314 Series Rev W (02/17) -
Page 5: Getting Acquainted
Make certain the circuit is properly fused according to appropriate vehicle standards. The vehicle electrical system will furnish power to both run the pump and charge the ba ery. See page 10 for addi onal informa on. SSCOR DUET - Model 2314 Series Rev W (02/17) -
Page 6: Battery Test
Canister (13) defec ve Replace canister Canister lid (13) loose Re‐secure canister lid Catheter thumb vent is open Occlude thumb vent on suc on p Debris has collected in the pump Replace pump SSCOR DUET - Model 2314 Series Rev W (02/17) -
Page 7: General Specifications
1200cc/ml SSCOR part #48041 Pa ent tubing Vinyl tubing 9/32”ID x 72”L (7.1mm ID x 182.88 cm L) SSCOR part #43200 Suc on Tip HI‐D® “Big S ck®” SSCOR part #44241C SSCOR DUET - Model 2314 Series Rev W (02/17) -
Page 8: Internal Access
(K) Wiring connec on to the control panel (L) Vacuum pump. Return to SSCOR or authorized service center for service. Do not a empt to service the vacuum pump. (M) Exhaust barb (N) Vacuum barb SSCOR DUET - Model 2314 Series Rev W (02/17) -
Page 9: Maintenance
Vacuum pump should be replaced if contaminated PC Board Steriliza on not permi ed. PC Board should be replaced if contaminated. Plas c Chassis Wipe with damp cloth or disinfectant wipe. Steriliza on not permi ed. SSCOR DUET - Model 2314 Series Rev W (02/17) - Page 10 The Model 8323 Charging/Reten on bracket can be mounted by the base or mounted ver cally in order to hold the SSCOR Duet portable suc on unit. Mount the reten on bracket to a suitable safe moun ng surface so the indicator lights on the control panel are visible to the user. The unit is shipped ready to be mounted ver cally, but if that does not fit your requirements, you can easily modify the unit to mount it by the base.
-
Page 11: Preventive Maintenance
150mmHg +/‐ 19mmHg or between 131mmHg – 169mmHg. If your gauge is out of calibra on, you may need a new gauge (SSCOR Part #22006) or a new regulator and gauge assembly (SSCOR Part #22012‐KIT2314). SSCOR DUET - Model 2314 Series Rev W (02/17) - Page 12 LED on the control panel should light green when the device is plugged in and the ba ery is fully charged. If your device fails to meet any of these specifica ons or if you have any ques ons, call SSCOR technical support at 1‐800‐434‐5211 or 1‐818‐504‐4054. SSCOR DUET - Model 2314 Series Rev W (02/17)
