ASONIK GL2M Instruction Manual

intended to moisture & relative
permittivity measurements
of the soft and thin layer
The GL2M is very accurate and sensitive metering unit
intended to determine moisture content in the tea leaf.
Every single measurement pertain to measure single
layer (single leaf) – see addendum "A" of the manual.
Additionally are once taked also measurements of leaf
body thickness and temperature, also air ambient relative
humidity and temperature as well.
Before every measurement is essentionally to run the
calibration procedure.
To protect against potential errors is not possible to
pass over it.
Mentioned procedure removes all ambient temperature and
moisture influences on mechanical parameters of sensitive
thickness sensor.
In case of big mechanical stress, like rapid drop the
unit on the floor or on the desk would be required to
take more detailed calibration doings described in the
attached "thickness sensor calibration" point.
Driving down the external arm equiped with OLED display
bring the meter to work and simultaneously bring also to
taking hold of the sample inserted in to the measuring
aperture. The internal arm touch the leaf body with
controlled force about 1N regardless of the pushing
force applyied on the external arm, defined further as
" possible lowest force".
__________________________________________________________________________
GL2M Instruction Manual

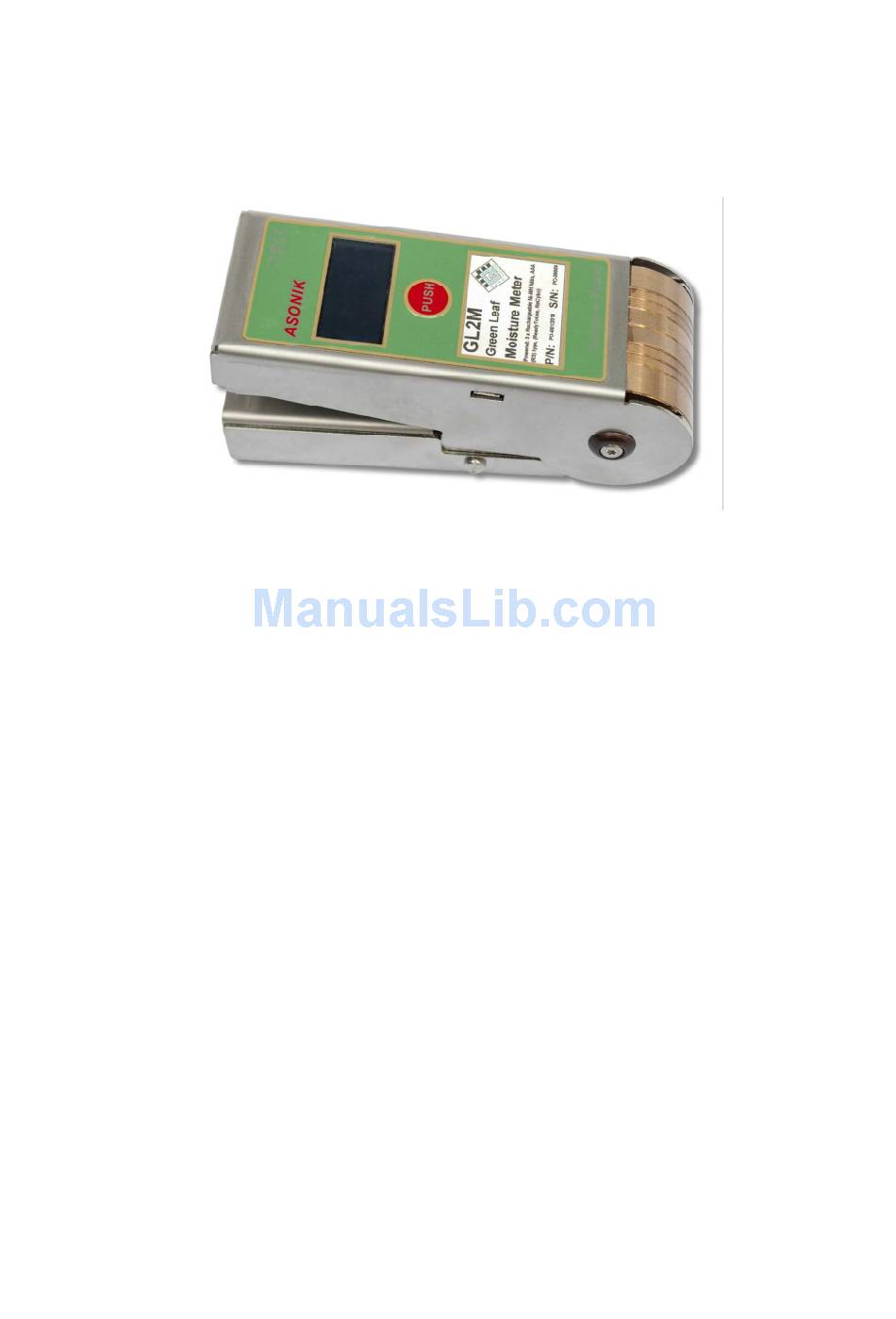

The meter GL2M type
1
ASONIK 12.11.2017.
