Summary of Contents for Challenger NG1009H

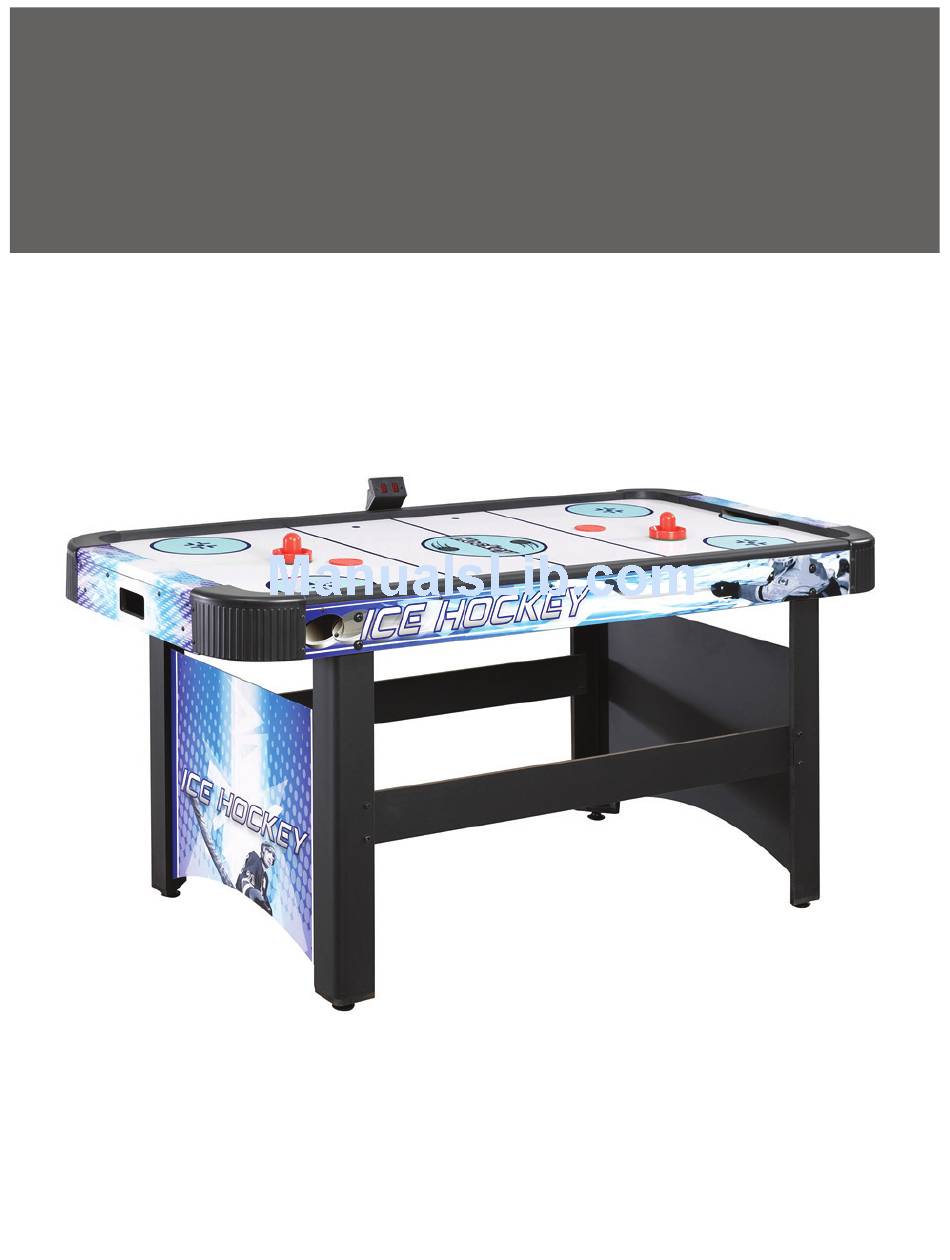

- Page 1 FACE-OFF 5' AIR HOCKEY TABLE ASSEMBLY INSTRUCTIONS NG1009 H...
- Page 2 THANK YOU! Thank you for purchasing this product. We work around the clock and around the globe to ensure that our products maintain the highest possible quality. However, in the rare instance that your product is defective or missing parts, contact your retailer, or call 800-759-0977, to submit parts requests or warranty claims.
- Page 3 PARTS IDENTIFIER (NOT TO SCALE) (A & B wires: 1 wire set per goal) SCORER SENSOR WIRE 2 pcs ADDITIONAL EQUIPMENT REQUIRED: AAA BATTERY 2PCS Please see Parts List at end of manual for Part Numbers when ordering parts. For replacement parts please call 800-759-0977.
-
Page 4: Assembly Tips
ASSEMBLY TIPS 1. Find a clean, level surface to begin the assembly of your game table. The table will be par- tially assembled upside down and then turned over onto its legs. This is a heavy game and turning it over will require at least two strong adults. 2. - Page 5 ASSEMBLY INSTRUCTIONS 1. Attach RIGHT LEGS #2 and LEFT LEGS #3 to the corners of TABLE BODY #1 as shown with LARGE BOLT #6 and LARGE FLAT WASHER #7. Note: The table is assembled upside down. 2. Thread one LEG LEVELER #13 to each LEG. 3.
- Page 6 ASSEMBLY INSTRUCTIONS (CONT.) 4. Attach each LEG BRACE #5 to LEGS as shown with SMALL BOLT #8 and SMALL FLAT WASHER #9. Feed wire leads through gasket, and carefully turn table over. * Before turning the table over, carefully feed two wire leads through gasket hole in center of side panel.
-
Page 7: Care And Use
CONGRATULATIONS! You have now assembled your Game Table. Please note the Care and Use instructions below to ensure years of trouble free use of your game table. CARE AND USE 1. This product is intended for INDOOR use only. 2. Do NOT sit, climb or lean on the table. 3. - Page 8 180-DAY LIMITED WARRANTY This product is warranted to the original purchaser to be free from defects in material or workmanship for a period of 180 days from the date of the original retail purchase. This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer.
- Page 9 FACE OFF 5' AIR HOCKEY TABLE - NG1009H Parts List 11,17 PARTS #1 NGP5497 #2 NGP54971 #3 NGP54972 #4 NGP54973 #5 NGP54974 #11 NGP54976 #13 NGP54977 ELECTRONIC LEFT LEG LEG PANEL LEG BRACE TABLE BODY RIGHT LEG LEG LEVELER SCORER...
