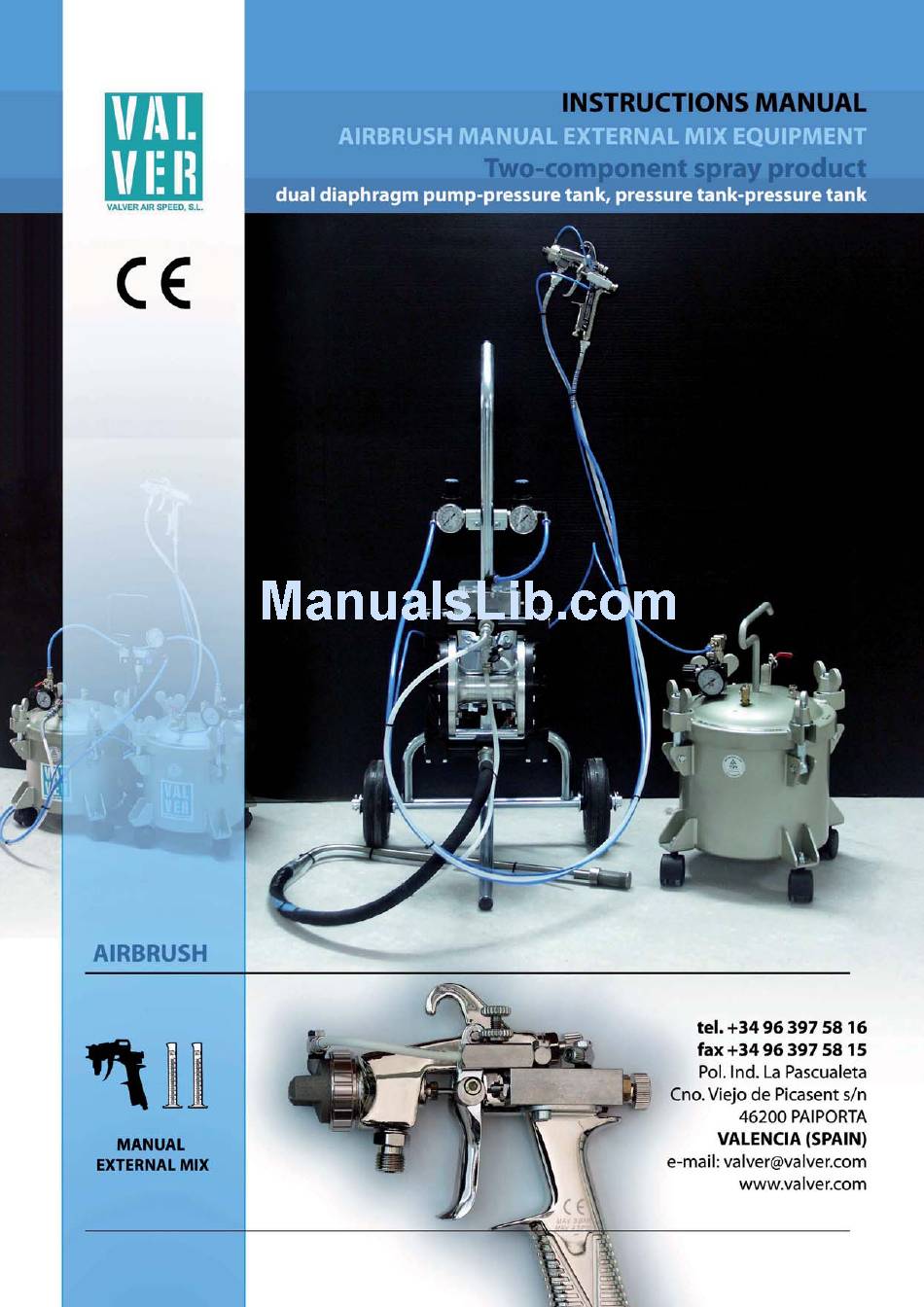

VALVER AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT and is the answer not in the manual?

Questions and answers

Summary of Contents for VALVER AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT

  • Page 2: Table Of Contents

    INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT CONTENTS WELCOME STATEMENT OF COMPLIANCE . WARRANTY 1. EQUIPMENT DESCRIPTION 2. TRANSPORT, HANDLING AND STORAGE 3. OPERATION 3.1. Safety rules 3.2. Starting-up the equipment. 3.3. Calibration 4. MAINTENANCE AND CLEANING 5. SAFETY RULES 6.

  • Page 3: Welcome

    Before purchasing external mix equipment from VALVER AIR SPEED S.L. we recommend to carry out the necessary product tests prior to production.

  • Page 4: Statement Of Compliance

    AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT STATEMENT OF COMPLIANCE Mr. Ricardo Verdú, as Manager of the company VALVER AIR SPEED, S.L. manufacturer of the equipment for paint application, whose registered office is at Polígono Industrial La Pascualeta, Cno. Viejo de Picasent, s/n 46200 PAIPORTA (VALENCIA) Spain. Declares at his own sole responsability that...

  • Page 5: Warranty

    If it is absolutely necessary to send Valver Air Speed S.L. staff out, it will always be done at their own discretion and an invoice will be issued for the job plus the travelling expenses.

  • Page 6: Equipment Description

    VALVER AIR SPEED. 1. EQUIPMENT DESCRIPTION The AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT is composed of two pumps. The first pump is for resin and the type employed can be selected. The second pump for the catalyser is a pressure tank.
  • Page 7 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT DOUBLE DIAPHRAGM option for 2 or 4 spray guns Resin regulator 2 L PRESSURE TANK option Catalyst regulator resin catalyst resin catalyst catalyst Option for 2 guns resin Can incorporate sets of 2-8-18 L...
  • Page 8 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT EQUIPMENT FOR POLYESTER, GEL COAT… Pressure tank or double diaphragm for resin, pressure tank 2 L for catalyst DOUBLE DIAPHRAGM for RESIN – PRESSURE TANK for CATALYST option Resin regulator catalyst resin catalyst...
  • Page 9 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT Application gun (15) Exploded in page 21 1. Resin pump 13. Intake air mixer adaptor 2. Safety valve 14. Mixer air stopcock 3. Resin pump air stopcock 4. Resin pump air control 15. Gun 5.

  • Page 10: Transport, Handling And Storage

    Before using the equipment it is important to know all the rules of use, operating conditions and instructions for use. SPEED AIR VALVER is not responsible if the operator fails to comply with the following conditions and is not responsible for any negligence in using the equipment.

  • Page 11: Starting-Up The Equipment

    (pressure tank only) and the Catalyser pump air stopcock (9) (pressure tank) are closed. 2. Connect the air supply to the AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT’S intake mixer air adaptor (13), which supplies the pumps and the gun (15). 3. Place the absorption (6) in the resin, in the case of dual-membrane units, or load the tank, in the case of pressure tanks (closing correctly the Mixer air stopcock (14).
  • Page 12 (17) and there are no air bubbles in the circuit. The residual pressure in the resin pump (1) will force resin to flow for a few seconds. 21. Replace the TRIMIX® mixer head (17) in the gun (15). The AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT is pressurised with material and ready for calibration. Recommendations.

  • Page 13: Calibration

    INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT 3.3. Calibration. 1. Start-up the equipment. 2. Close the Mixer air stopcock (14), close the Resin pump air stopcock (3) and close the Catalyser pump air stopcock (9). 3. Prepare 2 calibrated test tubes. For maximum accuracy, place each test tube on scales and weigh.
  • Page 14 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT 10. After that press the gun trigger (18) and fill the measuring cylinders up to the desired quantity. 11. Check the volume proportion or the material weight with a balance and adjust the proportion with the catalyser pump air control (10) at the pressure tank or with the catalyser regulator (24) of the pistol.
  • Page 15 (7). 16. Adjust the pressure with the air gun control (7) or with the spread regulator. The AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT is calibrated and ready for use. Recommendations.

  • Page 16: Maintenance And Cleaning

    The equipment is to be subjected to an initial revision some 3 months after installation. This check is to cover all the AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT’S spray equipment, as well as the correct operation of all the equipment’s safety systems. If everything is as it should be after the service check, further service checks are to be carried out every six months until the end of the guarantee period.

  • Page 17: Safety Rules

    5. SAFETY RULES In the design and manufacture of equipment have been taken into account the essential safety requirements for machine safety directive 98/37/EEC. 6. DISASSEMBLY CONDITIONS When you stop using the machine, contact to VALVER AIR SPEED service.

  • Page 18: Manual External Mix Set-Up Chart

    INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT MANUAL EXTERNAL MIX SET-UP CHART EQUIPMENT IDENTIFICATION Nº: PURCHASE DATE: DISTRIBUTOR: Contact: CUSTOMER: Contact: Customer phone: Fax/e-mail: Factory Testing: Technical: date: Checking in customer: Technical: date: Delivery Note No MIX CHARACTERISTICS Manufacturer: Fund...
  • Page 19 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT EQUIPMENT IDENTIFICATION Nº: PURCHASE DATE: DISTRIBUTOR: Contact: CUSTOMER: Contact: MIX SETTING CHART Resin model equipment Manometer scale Catalyst model equipment Manometer scale Gun model External mix head model Nozzle type Gun spray air pressure...
  • Page 20 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT MANUAL EXTERNAL MIX SET-UP CHART TEXT 3 Piece dimensions Weight part without appling Weight part freshly applied Weight part at 30 min Weight part at 60 min To contact min. Drying In package min.

  • Page 21: Viscosity Evolution In Accordance With Solvent-Based Paints Termperature

    INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT VISCOSITY EVOLUTION IN ACCORDANCE WITH SOLVENT-BASED PAINTS TERMPERATURE We recommend reducing resin viscosity in order to obtain optimum curing of both the mixture and the final finish. The viscosity and the temperature can be reduced without adding emission-increasing solvents to the mixture, thus ensuring compliance with the applicable legislation.

  • Page 22: Application Gun Exploded

    INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT APPLICATION GUN EXPLODED...
  • Page 23 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT...
  • Page 24 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT...
  • Page 25 INSTRUCTIONS MANUAL AIRBRUSH MANUAL EXTERNAL MIX EQUIPMENT...
