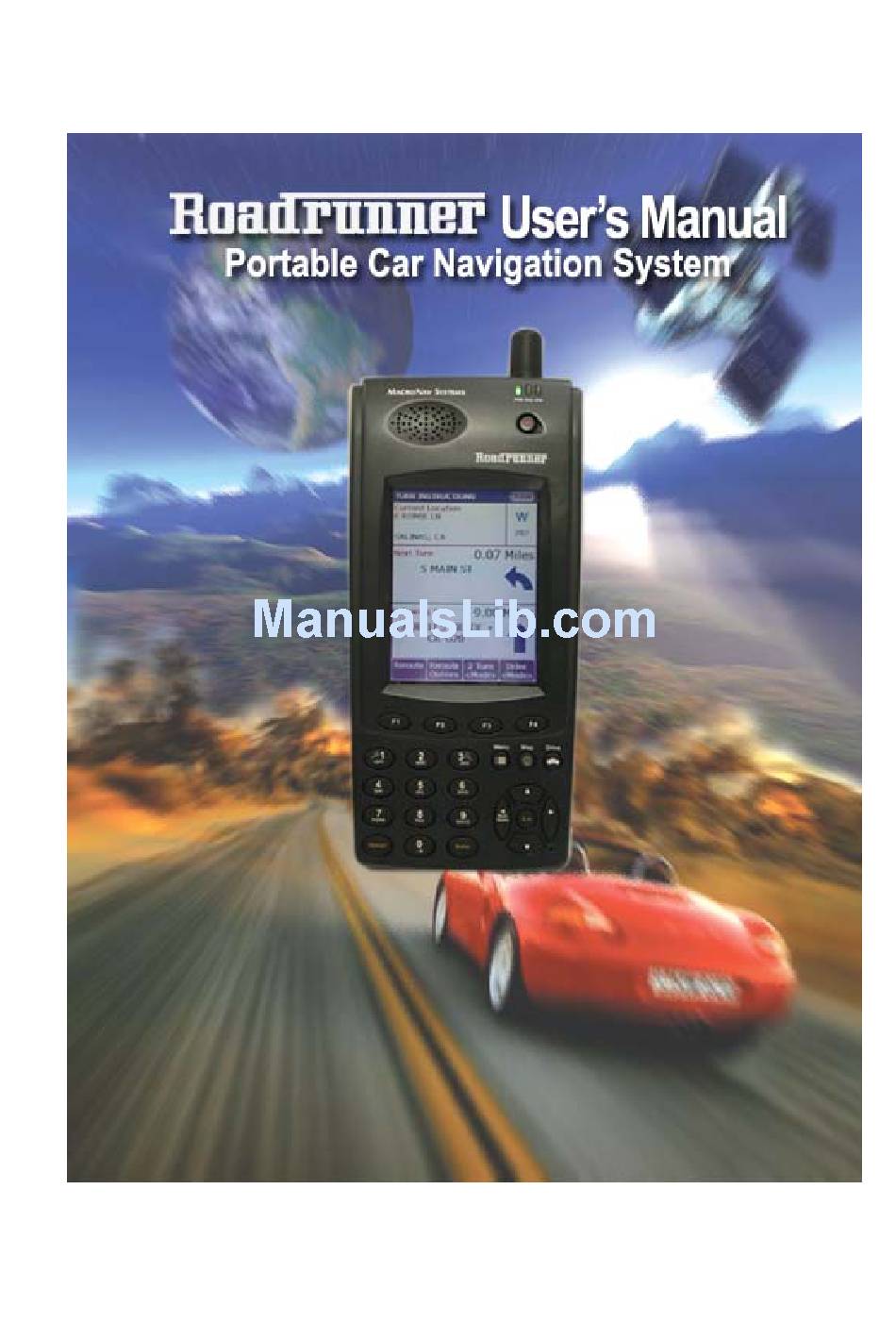

RoadRunner PN-100 User Manual

Portable gps navigation system test

Hide thumbs

page of 47

/ 47
Bookmarks

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the PN-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for RoadRunner PN-100

Page 2: About Manual
About manual Thanks for purchase the RoadRunner what is the first portable car navigation system in Korea. Should be fully known well the application after read this manual to make yourself familiar with the RoadRunner’s new function. It will be possible to use this product more conveniently after known well the installation and notice before use.
Page 3 NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 4 The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,...
Page 5 Notice & Warning for Safety use Please carefully read this manual and use this product according to manual to keep user’s safety and protect property from accident. About AC Adapter 1. Do not make damage by curve the Power cord with force or pressing with heavy things.
Page 6 -- Contents Of User’s Manual -- 1. Product Instruction 1-1. Composition Instruction 1-2. Name of Each Part 1-3. Installation (Cradle) 2. Start 2-1. Notice Before Use 2-2. Start 2-2-1. Detailed Instruction Of Menu A. CAR Navigation B. MP3 Player C. Voice Memo D.
Page 7: Product Instruction
In this case, be referred to this user’s manual. RoadRunner is possible to be used not only in the car but also outside of the car as worker’s mode. In addition, built in the convenient & superior capability MP3 Player.
Page 8: Name Of Each Parts
1-1. Composition Instruction Please confirm the composition same as follows. If there is un-matching or lack of composition, contact to the selling agency. RoadRunner Body Cradle for Car DualLock for Cradle Cigar Jack AC Adapter USB Sync Cable External Antenna User’s Manual...
Page 9 Name of each parts basically have to know for using the system. FRONT GPS Antenna Speaker Power Switch LCD Screen Keypad NAME FUNCTION GPS Antenna Receive GPS Satellite Signal. Show Power/Charging/Status of GPS Receiving Satellite. Power Switch Use for Power on or Initialize the system. Speaker Speaker for Voice guidance.
Page 10 GREEN Operating System System Power Off Under Battery Charging ORANGE Stop Battery Charging GREEN Finish Battery Charging Under Battery Discharging ORANGE Searching GPS Satellite GREEN Fix Present Location GPS Receiver Power off REAR External GPS Antenna Connecting Port Reset Switch Position of Duallock™...
Page 11 SIDE Volume LCD Light Control Button Audio Jack CF Slot NAME FUNCTION Audio Jack Stereo Audio Jack for enjoying MP3 Volume Volume Up /Down Button LCD Light Control Button LCD Light Control Button CF Slot Port for Insert MP3 CF Card...
Page 12 BOTTOM External Power Port(DC-IN) I/O Port USB Port NAME FUNCTION External Power Port Port for Connecting Cigar Jack Power or AC Adapter USB Port Port for Connecting USB Sink Cable I/O Port Port for System debugging 1-3. Installation (Cradle)
Page 13 Duallock™ position. 4. Set to the easy position to see using the set screw of car cradle. 5. Connect the power cable for car to the RoadRunner’s DC-IN(External Power Port). Mounting is finished. 6. <Picture3> Feature after mounting <Picture4> Recommended position on car dash board <Picture 3: Feature after mounting>...
Page 14: Notice Before Use
Power Switch of RoadRunner is multi-functional Power Switch and supplying the following function. 1) Fast Power ON : RoadRunner, usually power off using power switch, will be off storing the state program operated before power off. Later power on again, the system will start with the program was operated before power off.
Page 15 First time after unpacking, use AC Adapter or Cigar power cable. Especially, using RoadRunner in the car, recommend you to use the Cigar power cable. It will be possible to happen automatically stop charging for data protection when you use at high temperature and high humidity.
Page 16 GPS needed at least 3 satellite signal to calculate location and calculate the location usually within 2~3 minutes. GPS Initialization is needed for using Roadrunner first time after moving long distance (over 150 ~ 200 km). If you operate Car Nav program by pressing the Car Navigation button on the menu, it will be appeared Map screen.
Page 17 Roadrunner. Speaker & Audio Jack The Speaker included in RoadRunner is Max. 2W Mono speaker. This speaker is designed for voice introduction of car navigation. When the user enjoying MP3 music through this speaker, it will be happened sound crushing in the high volume according to the sound source condition.
Page 18 1) Push the marked point of CF Slot cover same as picture left. 2) The end parts of CF Slot cover will pop out after pushing the marked point. 3) Will take off the CF Slot cover same as <Picture2> after pulling the pop out point.
Page 19 2-2. Start If you power on the Roadrunner by pushing power button, the first menu will be appeared same as below.
Page 20 & voice guide with real time to destination by searching & setting up the destination. RoadRunner is containing PocketNavi™ Car Navigation software made by Geoandspace Refer to PocektNavi™ User’s manual for details of Car Navigation software.
Page 21 B. MP3 PLAYER B-1. Operating – Press MP3 Player key and then MP3 Player will be operated. < mp3 player selection> < mp3 player initial screen> Play Mode will be firstly shown on the screen. Playing the music on the Play list at Play Mode Music Title Play list...
Page 22 B-2. Select Music Contents If you operate this software first time. Play list would be empty. Change to Edit Mode for adding the music to the Play list. Go to Edit Mode by pressing Map (Select Music) key after insert Storage Card (MP3 file is saved) to the Slot.
Page 23 B-2-1. Select music content If you move the selected box to the directory wanted by using the up, down key onto File list, and then press Enter key, possible to go to selected directory. If you want to go previous directory, press left arrow key or key.
Page 24 B-2-2. Select All Music Contents If you like to add all music contents in current directory, press F2 (ADD ALL). B-2-3. Delete Music Contents If you like to delete a certain music contents in the Play list, select the music contents in the play list and press F3(DELETE) to delete the music contents from the Play list...
Page 25 B-2-4. Delete All Music Contents Press F4(DELETE ALL) key to delete all the music contents in the play list.
Page 26 B-2-5. Play After organizing your own Play list, you are ready to play music you want. Press Map (Select music) key to move onto Play Mode. In the Play Mode, press F2 key to play the music contents you want. - Once you started, the detail information of music contents, such as music title will be displayed on the Play list - Press F2 key to temporarily stop playing.
Page 27 Tip) Press keypad no. 4, 6 keys to 10 seconds forward and backward the music contents playing. Tip) Please refer the Tip section on top of MP3 player. In the Play Mode, you can refer Play Tip, and Edit Tip in the Edit mode. -2-6.
Page 28 B-2-7. Summary - Play Mode Version Music Title Detail info. Duration Play list Repeat Style Proceeding Bar Playing time Previous title Next title Play & Pause Stop...
Page 29 - Edit Mode Previous directory File list MP3 file Directory Play list Edit Menu Delete all Play list Reloading the Storage Card Add all the music contents to the play list Delete the music contents selected of Play list...
Page 30: Voice Memo
C. Voice Memo In the Voice Memo, you can store and manage the voice as file after simply recording it. C-1. Operation If press Voice Memo key, will start. < Select Voice Memo > <Initialized Voice Memo Screen>...
Page 31 C-2. Recording Recording will start if press F1 key. Processing will be shown at the below menu. Press F1 key when hope to finish recording. The file just finished recording will be added to the file list when the recording is finished.
Page 32 C. Listen to the record When you want to listen to the recorded, press F3 key after move select bar to the wanted file. It is possible to stop to press F3 during Listen the record for a little while. Pressing F3 key again, will start from the stop after.
Page 33 C-3. Delete Recorded File For continuous recording, delete old recorded file because it is limited size possible to recording. When you want to delete recorded file, press F4 key after moving the select bar to the wanted file.
Page 34 2-2-2. Instruction Utility Menu Press Utility menu to see the details. A. CALCULATOR In the Utility menu, you can have select Calculator bar. < Select Calculator> <Calculator> The method will be basically same as normal calculator. The simple application is as below: - After typing a figure, press four arithmetical operations(＋, －, ×, ÷) to move on.
Page 35 B. CALENDAR In the Utility menu, you can have choice as Calendar. < Select Calendar > < Calendar > The simple application is as below:. - Add one additional year by pressing F1 key, 1 key(Numeric), and Arrow ↓ key respectively - Minus one additional year by pressing F2 key, 3 key(Numeric), and Arrow ↑...
Page 36: Calibration (Optional)
(Notify) This function is only available in the model supporting touch screen. If you just buy this RoadRunner or operating the system in the Full Power Mode, it will be happen un-accurately. For making it accurately, must operating Calibration. Once Calibration just 1 time, it will be working accurately even in case of Fat Power Off/On but In the Utility menu, you can have a choice as Calibration.
Page 37: Usb Active Sync
D-1. USB Active Sync This product is possible to communicate with Computer using Active Sync. It means possible to move the RoadRunner’s data to the computer or computer data to the RoadRunner. Using this function, update to new version Car Navigation software and updating MP3 player program, copy MP3 files to the RoadRunner.
Page 38 D-3. Install D-3-1. RoadRunner Device driver Instabll. 1) Power on the RoadRunner and connecting computer & RoadRunner with USB cable appears “Searching new hardware”. Select Install(High level) and press next key onto List or Select position. 2) Press Searching select the path there is RoadRunner’s device driver.
Page 39 3) After select the path and press next, will install automatically device drive same as follow. 4) If the warning message, press ‘continue’ key. 5) Press ‘Yes’ key when the message appears same as below. (It will not appears depend on the user’s computer condition)
Page 40 6) After adding new hardware and press ‘Finished’ will finish Install. 7) Once normally installed Controller System Construction Manager and can see following.
Page 41 D-3-2. Install Active Sync 1) After power on the RoadRunner, connect Computer and RoadRunner using USB cable, operating the Active Sync install program. 2) If you operate Active Sync install program, will release the compression. 3) After release the compression, to go next step pressing the ‘Next’ key 4) Set up Install folder, press ‘Next, and go to next step.
Page 42 5) Starting file copy. It will take long time at processing 91%. Following window will be automatically disappeared after finishing install. 6) Following window will come out when you installed Active Sync without connecting USB cable. Selecting ‘Cancel’ and connect USB cable in advance. Operate Active Sync program again.
Page 43 D-3-3. Active Sync Operating If you select Active Sync onto Utility Menu, it appear “Connecting with Host” message. < USB Active Sync Selection > 1) Connecting is succeed, sound will coming out and activated Active Sync program of Computer. 2) Right screen appears when select ‘No’ and press ‘Next’ onto partnership set up window.
Page 44 4) Error message at RoadRunner will be appeared when it failed connection. Then check the condition of USB cable connection. In case of continuous fail to connect, Reset the RoadRunner or Full Power Off. Then try again. Still it is failed rebooting the computer.
Page 45 - Onto the Set up window, possible to check or change the LCD Front-Light, Storage Card presence, Sound Volume, Battery Charging status. - On System Info possible to get RoadRunner’s System information. - On About show you the rest information.
Page 46: Specification
CIGAR POWER JACK For car 12V /24V Connecting Cable CRADLE & Cradle ATTACHING TAPE DualLock™ attaching/release 1000 times Tape : 1 time use USB CABLE PC-RoadRunner Connecting Cable EXTERNAL ANTENNA External Active Patch Antenna Connecting Cable / CONNECTING CABLE Connector : SMA...
Page 47 3. Recommend you to make possible to Battery charging with connecting Cigar jack cable when use it in the car. Possible to go charging mode once you connect the Power because the Charging circuit is built in the Roadrunner. 3-4. Using Environment DIVISION...
