SKU: WRT2
BROADBAND 3G/4G MODEM
Instruction Manual
1.
Introduction

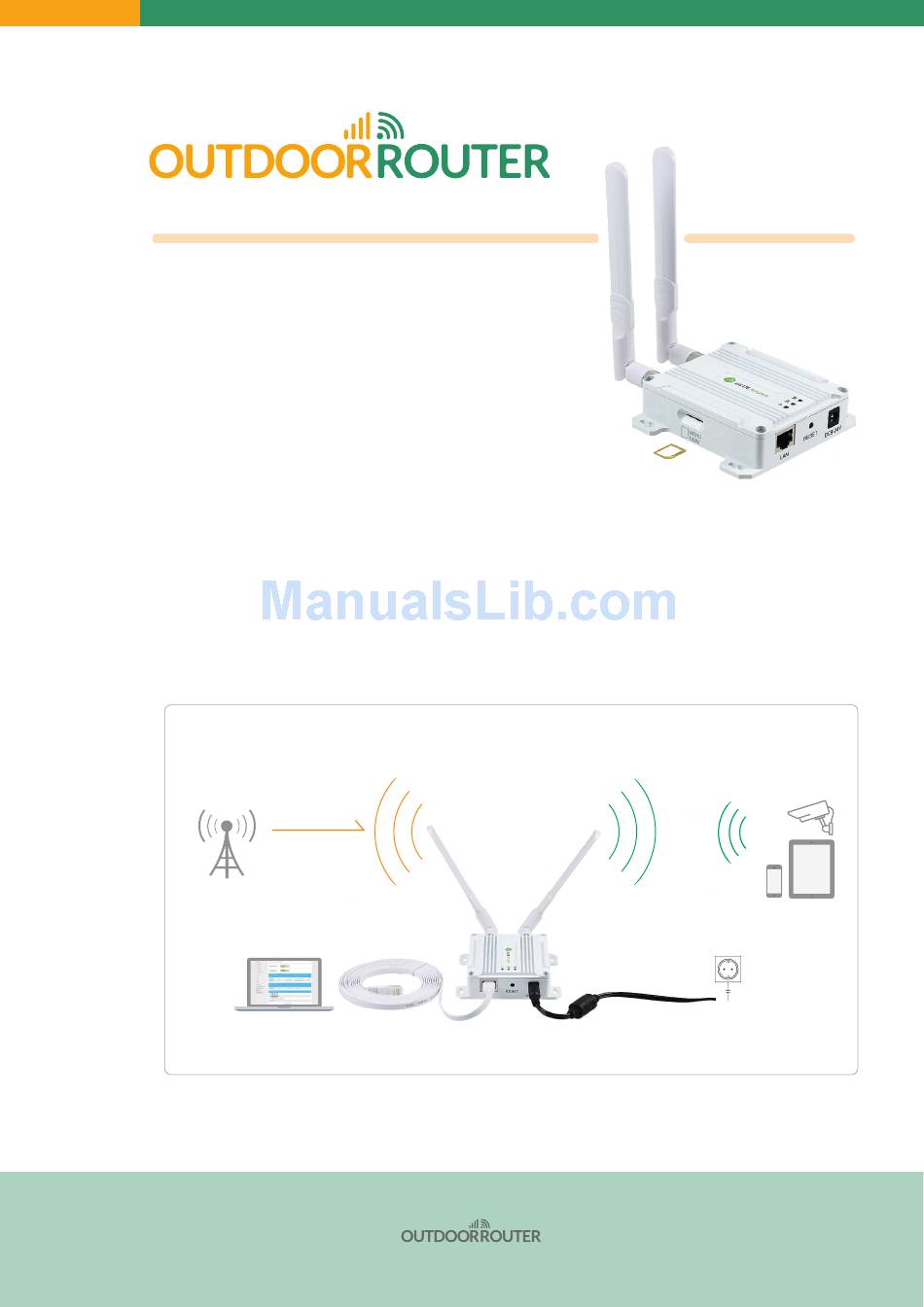

With an integrated broadband cellular modem and Wi-Fi booster, the WRT2 3G/4G modem can receive 3G/4G mobile phone
signals and establish a Wi-Fi hotspot to connect your smartphone, computer, tablet, camera, TV box to the internet.
After inserting SIM card into build-in SIM card slot and connect the 3G/4G modem to the power adapter, a Wi-Fi hotspot is
instantly established. The Wi-Fi output power is adjustable between 20/27/30dBm. WPA/WPA2 encryption standards ensure
your wireless connection is safe from intruders.
Receive 3G/4G
Mobile Signals
Ethernet Port & LAN Cable
www.outdoorrouter.com
Wi-Fi Hotspot
for 32 users
100~240 Volt
Electric Outlet
Advertisement
Table of Contents
Summary of Contents for OutdoorRouter WRT2
- Page 1 Instruction Manual Introduction With an integrated broadband cellular modem and Wi-Fi booster, the WRT2 3G/4G modem can receive 3G/4G mobile phone signals and establish a Wi-Fi hotspot to connect your smartphone, computer, tablet, camera, TV box to the internet. After inserting SIM card into build-in SIM card slot and connect the 3G/4G modem to the power adapter, a Wi-Fi hotspot is instantly established.
-
Page 2: Hardware Overview
Warnings PLEASE READ THE MANUAL AND FOLLOW THE STEPS CAREFULLY. THIS MANUAL WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON, PLEASE CONTACT US. • Do not install with live electricity. • Avoid your gas lines when grounding your wires. •... -
Page 3: Installation
Indicator description Indicator Status Description System is up and ready Power No input power Green Received 3G/4G signal, but cannot connect due to no SIM card or no money in SIM card. Green flash slowly Received 3G/4G signal, but no data transmission. Mobile signal Green flash quickly Received 3G/4G signal, transmitting data via the mobile network. -
Page 4: Ethernet Port
Installation Connect to power adapter The 3G/4G modem works on a wide-range DC power 9~24 Volts. Connect the original power adapter on electric outlet and plugin the DC jack into the power socket on the 3G/4G modem. The power indicator on the modem will turn on. Except for the original power adapter, the 3G/4G modem can works on 12Volt power sources including car cigar lighter. -
Page 5: Interface Overview
Configuration Login your 3G/4G modem The default IP address of the outdoor router is 192.168.100.1 with subnet 255.255.255.0. Make sure your smartphone or computer is connected to the router via Wi-Fi or LAN cable. Open a web browser and type http://192.168.100.1 in the URL address bar. Use default password admin to login. -
Page 6: Network Settings
Configuration Network connections and status There are six blocks below the menu bar on the front page. 4.5.1 3G/4G connect status On the left upper corner, you can quickly turn on / off the 3G/4G mobile network connection and check the connection status including upload speed, download speed, and working time. -
Page 7: Sms Control
3G/4G connection at the first priority *#07#,wifipref Wi-Fi replay at the first priority *#08#,WRT2,outdoorrouter,add Connect to another Wi-Fi hotspot SSID “WRT2” with password of “outdoorrouter” *#08#WRT2,outdoorrouter,delete Disconnect to Wi-Fi hotspot SSID “WRT2” with password of “outdoorrouter” Reset factory settings When the router is turned on, click and hold “Reset” button for 5 seconds until the router reboot. Or use the above SMS code *#06#. -
Page 8: Troubleshooting
The default IP pool of router is 192.168.100.101~200. Check chapter 4.4.2 to change IP pool. Contacts If you have any question or suggestion about the outdoor router, please contact us. Company: Shenzhen Easysmart Technology Co Ltd Address: Rm2906, Aoxinya Bldg, Caitian Road Shenzhen, China 518033 Phone: 0086 138 23371557 E-mail: sales@outdoorrouter.com...
