BH7NOR & BG6QBV
AVRT7 Plus User Manual
I n t r o d u c t i o n
1 .
A V R Tx S e l e c t i o n t a b l e
2 .
AV RT 7 P l u s M a i n b oa rd i l l s t ra t i o n
3 .
Setup & Usage: Single gateway mode
4.
Setup & Usage: real-time 2-channels decoding
5.
AVRT7 Plus' accessories & Usage
6.
Application of external radio
7 .
AVRT7 Plus'Installation & Usage of its software
8.
AVRT7 Plus'illustration of its firmware updating
9.
C a u t i o n s o f U s a g e
1 0 .
AVRT7 PLUS
11.
V1.6 (for reference only, updated)
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 2
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 3
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . 2 2
Serial data printout help
Firmware and software
list
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 4
............................................................... 6
............................................................ 14
..................................................................... 16
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . 1 8
............................................................ 21
downloads：http://avrx.cn
................................................... 20
............................................ 25
- 1 -
Advertisement

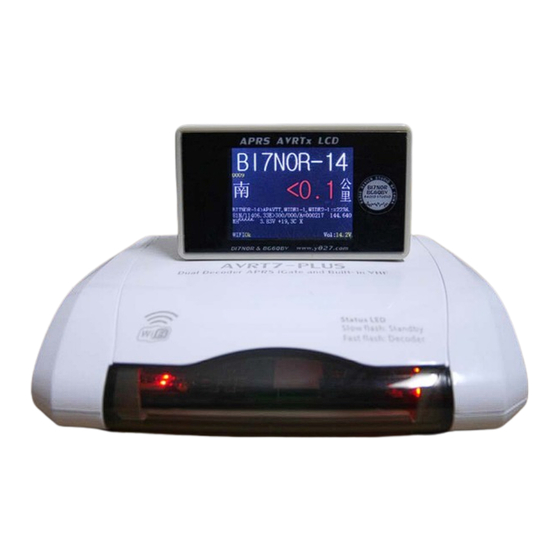

Summary of Contents for Radioddity AVRT7 Plus
- Page 1 Application of external radio … … … … … … … … … … … … … … … … … … … … … … … … … . . 1 8 AVRT7 Plus’Installation & Usage of its software …………………………………………… 20 AVRT7 Plus’illustration of its firmware updating...
- Page 2 AVRTx serious special device, which help more HAM radio ameture to enjoy the fun of APRS by lower cost and simpler operation. The modification and improvement has been done to AVRT7 Plus by combining old model’s advantage and users’feedback. AVRT7 Plus can achieve the APRS iGate (rate : 1200bps).
- Page 3 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn APRS system illustration model AVRTNC‐Digi AVRT5 AVRT11 AVRT7 Plus Hand‐held APRS repeater CAR APRS Purpose APRS APRS gateway conecting board TNC TNC It can provide the With internal RF receving APRS repeter RF+GPRS Hand‐held module，extended socket function through 2 tracks APRS, decoding function， the APRS Features the motolora 16 uploading/APRS ...
- Page 4 Yes (12v) socket GPRS tracks data Yes uploading remarks Internal WIFI module Necessary GSM card / condition for Via a radio LAN or WIFI connection Radio usage AVRT7 Plus Motherboard function 1. receiving antena base 2. extenal radio socket （the socket coul be connected via the 6 pins cable to FT8800R IC2720H，etc.） - 4 -...
- Page 5 13. individual 2-channels’real-time decoder 14. VHF RF receiving module The major function of AVRT7 Plus is to achive the APRS iGate (rate 1200bps) with the full programme including VHF receiving module and 2 individual TNC Codec. It works (with the right data setting) when the network cable is plugged in and the WIFI account and password is set up.
- Page 6 Plus software could be installed and set up simply. User just need a network cable and set up few simple data. Before it is switched on, all parts should be connected to AVRT7 Plus. Boot the AVRT7 Plus and it would work automatically to avoid users’tedious operation.
- Page 7 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn connect the AVRT7 plus to a external antenna DC IN (7~12V) LCD screen socket ( optional LCD screen) USB-TTL socket RJ45 network socket ( 568A/568B self-adaptable, DHCP IP address automatically obtaining.) External radio socket ( 6 pins cable could be connected such as FT8800R, IC2720H,etc.) External RF antenna base.
- Page 8 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn gateway setting : basic setting: 1. callsign : user’s own callsign, SSID default : -10; 2. login password: please use Users’APRS verify code,。 user could get the further guidance through the QQ group(30531489). APRS Passcode Generator Website：...
- Page 9 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn icon，gateway default “&” icon, default/, could be amended by user. latitude first and then longitude, N: north latitude, E: east longitude coodinate data , format: degree-minute.second beacon type, default “!”, do not change it. 4.
- Page 10 Firmware and software downloads：http://avrx.cn Gateway use does not need to enable APRS relay function! ! ! Note：DIGI function : The AVRT7 plus could and olny could transfer data when there is a external radio and after the DIGI is selected. 13.DIGI PATH 14.
- Page 11 18. Please click “Apply”and input the WIFI setting data into the AVRT7 plus after the red LED (from wifi module) on the left side is on. And the AVRT7 plus would reboot after the wifi setting is finished and it would connect to the wifi automatically. (English alphabet and number could be only accepted.)
- Page 12 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn Router WIFI settings reference (2.4GHz) Wireless - General： AVRT7 Plus –WIFI Only supports 2.4GHz !!! Authentication Method: WPA2 WPA Encryption: Radio channels : CH1, CH6, CH11, CH13. (china Region - 12 -...
- Page 13 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn mobile phone WIFI sharing settings reference : Encryption type: WPA2 PSK AP Band: 2.4G Broadcast channel: (china 1、6、11、13) Region - 13 -...
- Page 14 In this mode : AVRT7 plus could decode the beacon from VHF module inside and from extension radio at the same time, and AVRT7 plus would upload the valid beacon to the APRS-IS server without mutual interference.
- Page 15 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn connect the AVRT7 plus to a external antenna DC IN (7~12V) LCD screen socket ( optional LCD screen) USB-TTL socket RJ45 network socket ( 568A/568B self-adaptable, DHCP IP address automatically obtaining.) External radio socket ( 6 pins cable could be connected such as FT8800R, IC2720H,etc.)
- Page 16 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn AVRT7 Plus’ accessories & Usage the connection of the LCD display : connect the power supply connect the AVRT7 plus to a router - 16 -...
- Page 17 External RF antenna base. (screen cable)： 8 pins newwork cable is available 1. The LCD must be connected to the system only before AVRT7 plus is turnned on, then reboot it. 2. The ordinary 1:1, 8 pins RJ45 network cable is available for the system screen.
- Page 18 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn interface definition for external radio : 1. an external radio could be connectted to AVRT7 plus via this socket. DC IN (7~12V) LCD screen socket ( optional LCD screen) USB-TTL socket RJ45 network socket ( 568A/568B self-adaptable, DHCP IP address automatically obtaining.)
- Page 19 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn diagram for LED status indicator : Becon Beacon decoded Position Power Network Server Server(netwok) decoded of LED connectting connected disconnected internnal external radio radio Flashed fast Flash in Constant Flashed middle Flash slow Constant light light fast...
- Page 20 AVRT7 Plus Configuration program value read and write： 3、 a. To install the CH340 driver first, connect the USB cable between your PC and AVRT7 Plus. Start the software and choose the right COM port (you may find it in the computer device manager), and click the button;...
-
Page 21: Firmware Upgrade
To run the software and setup the COM port b. click to choose the new ROM file; c. Turn on AVRT7 Plus and connect it to your PC with the Mini-USB cable, and then click button; Please wait for 100% of the blue progress bar (upgraded successful) when you see “the system now is rebooting for upgrading”. - Page 22 A DC regulator is built in the AVRT7 Plus. User can hang the AVRT7 plus vertically on the glass , or on the wall of a bolcany near the outside position through the hole under AVRT7 plus. For the concerned of waterproof, the extension RF antenna base should be place down and away from the rain.
- Page 23 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn Extension tempreture sensor DS18B20 and tempreture pressure module illustration. *DS18B20 for tempreture only. #BMP180 for both tempreture and pressure. User can see the original data in the website of APRS.FI after the DS18B20 is plugged in. 2017-10-30 14:01:21 CST: BH7NOR-10>APVRT7,TCPIP*,qAC,T2TOKYO3:!2203.65N/11047.16E- 12.3V +26.1C 2017-10-30 14:16:21 CST: BH7NOR-10>APVRT7,TCPIP*,qAC,T2TOKYO3:>AVRT7PLUS 144.640MHz AVRT7plus 20170621 2017-10-30 14:31:21 CST: BH7NOR-10>APVRT7,TCPIP*,qAC,T2TOKYO3:!2203.65N/11047.16E- 12.3V +26.2C...
- Page 24 1. The user manual is base on the current hardware and software. And there would be no further notice in case of any amendment of AVRT7 Plus. 2. There could be a misunderstanding in the manual due to the different area or culture, please contect us by QQ group (30531489) or vicit our website ( www.y027.com) for the further...
- Page 25 AVRT7 PLUS Serial data printout help AVRT7 PLUS is not connected to the server, or the network is disconnected to receive an APRS beacon. The LED will flash quickly. Please check your network connection. You can connect the PC with the USB serial cable (CH340). Use the...
- Page 26 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn 1, AVRT7 Plus Serial printout (No LAN connection, WIFI only ) - 26 -...
- Page 27 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn - 27 -...
- Page 28 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn 2, AVRT7 Plus Serial printout (No WIFI connection, LAN only ) - 28 -...
- Page 29 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn - 29 -...
- Page 30 BH7NOR & BG6QBV Firmware and software downloads：http://avrx.cn designed and produced by : BG6QBV&BH7NOR (Old BI7NOR) Manual translation： BG7IKD bi7nor@yahoo.com WEB：www.y027.com Email:34512886@qq.com 、 2017-12-5 All AVRT series device firmware and software download web server ：http://avrtx.cn - 30 -...
