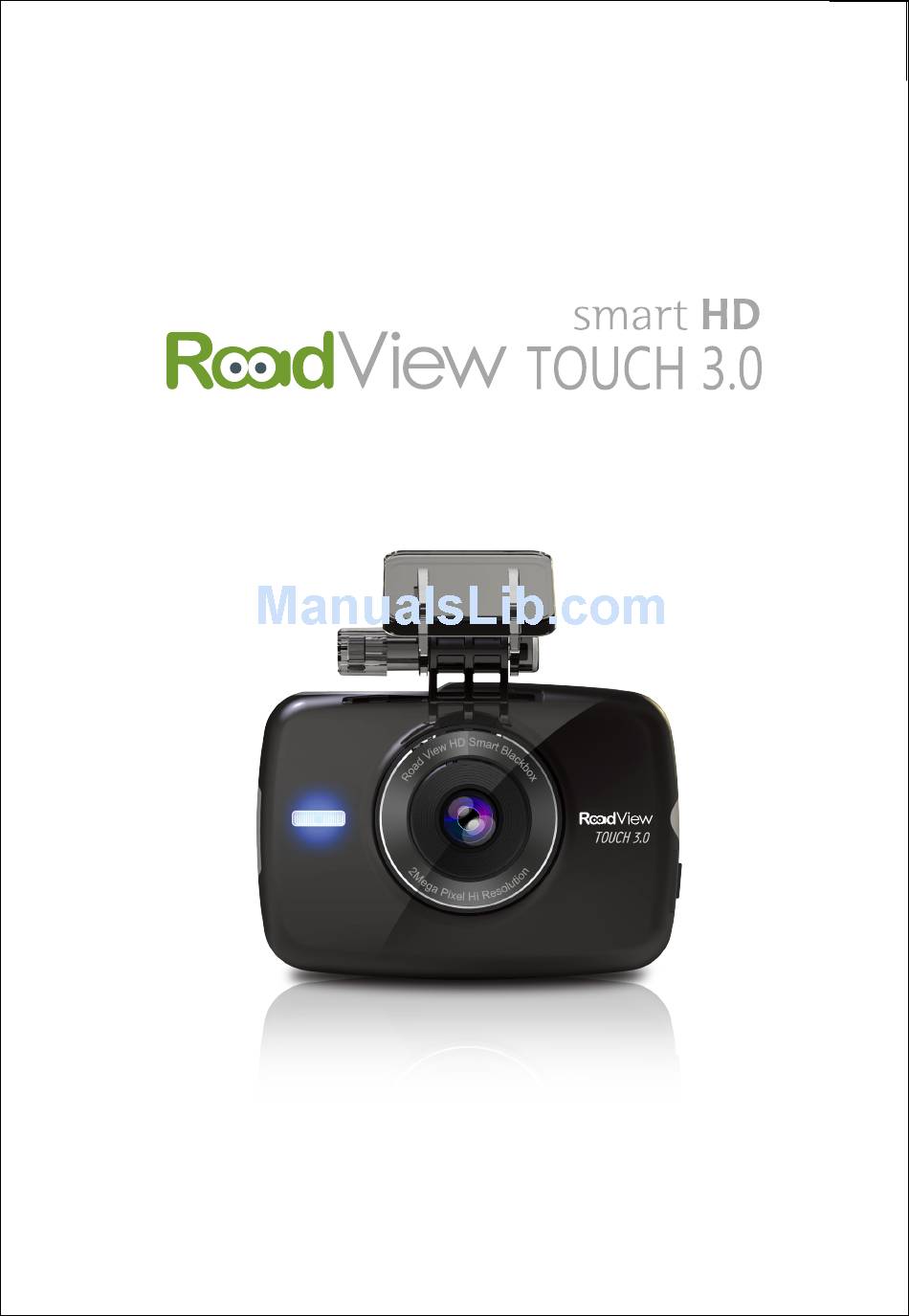

Summary of Contents for SD System RoadView Touch 3.0 smart HD
- Page 2 ※ Safety precautions included in this manual are intended to ensure your safety and prevent property damage. Read them carefully before using the product. ※ The product's functions and design features may change without prior notice for quality and functionality improvement purposes.
- Page 3 Precautions Proper Product Use ☞ Whenever you change the mounting position of the product, adjust the camera angle and check the video recording to ensure accurate video capturing. ☞ Excessively dark window tinting can hinder normal video recording. ☞ Use the power cable provided by the manufacturer to ensure normal functionality. ☞...
- Page 4 Accessories After unpacking the product packing box, check inside and make sure all accessories are included. (Refer to images below) If the product or any of its accessories is damaged or defective, please contact your retailer. (Actual components may differ from the images below.) Main Unit Rear Camera &...
-
Page 5: Product Overview
Product Overview External GPS Antenna Connector Rear Camera Connector Power Cable Connector Security LED Debugging Port Flashing Servicing Port security indicator. (do not open.) Reset Button If the black box microSD Card becomes Slot unresponsive during use, press this button to reboot the Built-In Microphone device. - Page 6 Product Overview Rear Camera Mount Lens Rear Camera Specifications Effective Pixels 640X480 Power DC 5V Viewing Angle Approx. 120º Operating -20ºC +60ºC Temperature...
-
Page 7: Installation
Installation [Correct Installation Angle] 1/3 of Distant Area Vertical Space ¾ = Dynamic Area 2/3 of Vertical Space ¼ = Fixed Area [Incorrect Installation Angle] Distant Area 2/3 of Vertical Space 1/3 of Dynamic Area Vertical Space... -
Page 8: Product Use
Product Use [Front/Rear Preview] ② ① ∙ Tap ① to bring up the menu. The screen automatically reverts to recording mode after 10 seconds of inactivity. ∙ Tap ② to flip between front and rear camera feeds. Caution) If a microSD card has not been inserted, the screen will not turn on. Instead, the black box will repeatedly ask you to check the microSD card. - Page 9 Menu Menu ① ② ⑤ ⑥ ⑦ ⑧ ③ ④ ⑨ ① Infinite/Parking Mode Selection ② Video Recording Playback ③ Volume Adjustment (0 - 5) ④ Settings ⑤ Parking Mode Event Count ⑥ GPS Status ⑦ Software Version ⑧ Time & Date Displays retrieved time and date when connected to GPS.
- Page 10 Settings: Video & Channel Video ∙ Choose the desired picture quality (High, Medium, Low). ∙ "High" produces the best picture quality at the cost of recording capacity, whereas "Low" increases the recording capacity at the cost of picture quality. ∙ Once the recording capacity of each type of recording data is reached, oldest data is overwritten with new data.
- Page 11 Settings: Sensitivity & LCD Off Sensitivity ∙ Adjust the impact sensor sensitivity. ∙ Tap on the Sensitivity icon to cycle through Off, Low, Normal 1, Normal 2, Normal 3, High, and Very High in that order. ∙ Impact registration above the specified sensitivity setting while the vehicle is on the move or parked triggers event recording.
- Page 12 Settings: Parking Mode & Clock Parking Mode ∙ Configure Parking Mode and Switchover settings. ∙ Parking Mode: Parking Infinite or Parking Event ∙ Switchover: Off, 5 mins, 15 mins, 30 mins ∙ While in Infinite mode, the black box automatically switches over to Parking mode if its G-sensor does not detect vehicle motion for the duration specified under Switchover.
- Page 13 Settings: Timer & Shutoff Voltage Video ∙ While in Parking mode, the black box turns off automatically after the amount of time set under Timer has elapsed. ∙ Tap on the Timer icon to cycle through 6H, 12H, 24H, and 48H in that order. Shutoff Voltage ∙...
- Page 14 Settings: Microphone & Calibration Microphone ∙ Turn the built-in microphone on or off. ∙ Set to "Off" if you do not want to have conversations and sounds from inside the cabin to be recorded along with the video. Calibration ∙ Calibrate the black box's LCD screen. ∙...
- Page 15 Settings: Reset & Format Reset [Default Settings] ∙ Video: High ∙ Channel: Front/Rear ∙ Sensitivity: Normal 2 ∙ LCD Off: 30 secs ∙ Parking Mode: Parking Event ∙ Switchover: 5 mins ∙ Timer: 12H ∙ Shutoff Voltage: 11.9V ∙ Microphone: On ∙...
- Page 16 PC Viewer ∙ PC Viewer lets you watch video recordings from microSD cards and configure the black box's settings. ∙ Video recordings can be played back using regular media players, but doing so will display the feed from the front camera only. ∙...
-
Page 17: Recording Capacity
Miscellaneous Recording Capacity Memory Parking Parking Channel Category Infinite Event Capacity Infinite Event Allocation Available Approx. 6GB Approx. 3GB Approx. 6GB Front Space Recording Approx. Approx. 160 Approx. Approx. 310 Capacity 110minutes recordings 220minutes recordings 16GB Allocation Available Approx. 6GB Approx. -
Page 18: Operating Status
Miscellaneous Operating Status Operating Status Parking Event Status (Blue) Infinite/Parking Infinite Settings or playback mode Status Flashing Recording (Red) Standing by in Parking Event mode System error or Flashing in Sync Blue/Red firmware update in progress Flashing Alternately microSD card formatting in progress Product Specifications Category Specification... -
Page 19: Product Warranty
- Defects caused by other extraneous factors 1. Product (Model): In-Vehicle Black Box (RV-330LB) 2. Retailer: 3. Manufacturer/Country of Origin: SD System Co., Ltd./Republic of Korea 4. Certification No. SD System Co., Ltd. 613, hyundai I valley, 31,244, Beon-gil, Galmachi-Ro, Jungwon-Gu, Seongnam-Si, Gyeonggi-Do, Korea Website: www.sdsystem.com...
