1.2 Side View

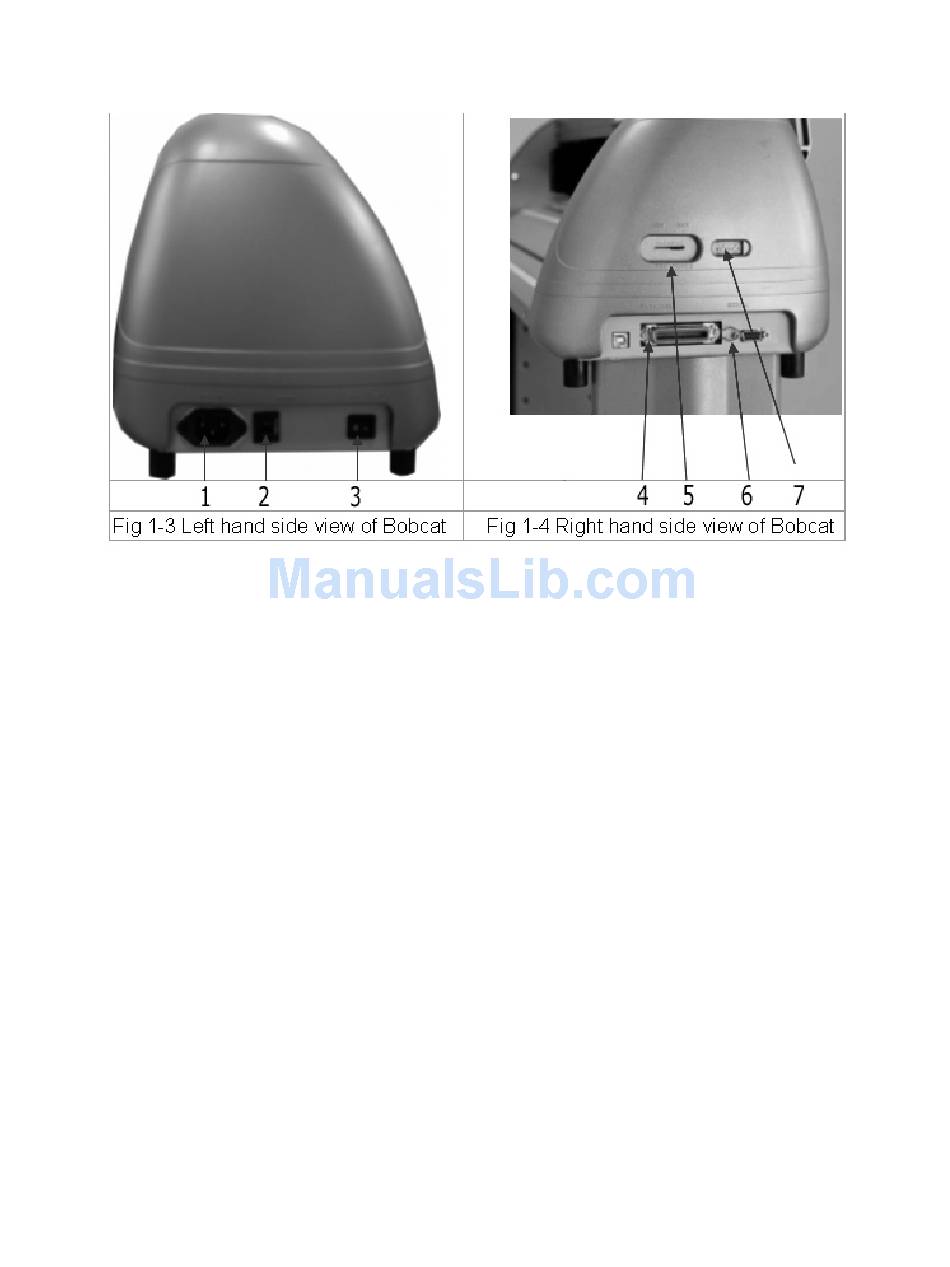

Left Hand Side (Figure 1-3)
1. AC Power Connector – Used to insert the AC power cord.
Fuse – Up to 3 Amp.
2.
Power Switch – On when switches to [I]; Off when switches to [O]
3.
Right Hand Side (Figure 1-4)
4. Parallel Interface Connector (Centronics) – Used to connect the cutting plotter to
a computer through a parallel interface cable.
5. Cutting Force Control Slider – Set the blade force here.
6. Serial Interface Connector (RS-232C) – Used to connect the cutting plotter to a
computer through a serial interface cable.
Dip Switch - Used for various parameter settings.
7.
1-2
