OPERATING MANUAL
W-6A
RIVTEC® PNEUMATIC RIVET NUT TOOL
(Please read this manual before using this tool)

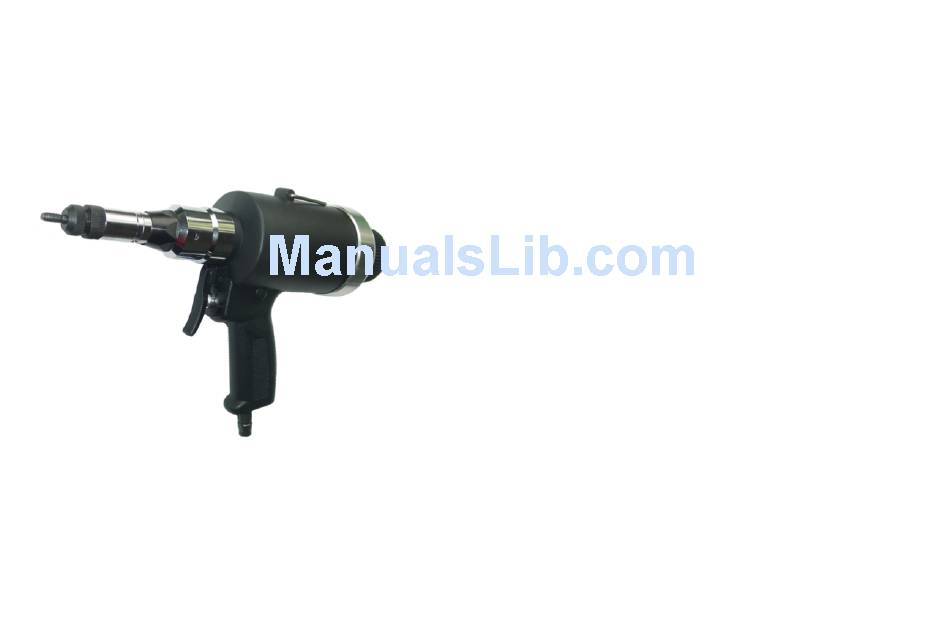

The W-6A is a professional and highly efficient pneumatic rivet nut tool.
The W6A is capable of setting different size rivet nuts by changing the
mandrel to correspond with the rivet nut. Control the clamping force by
Adjusting The Stroke accordingly.
Under normal conditions of use, the daily capacity of the W6A is about 6000
rivet nuts.
SPECIFICATIONS:
Model
W6A
Weight
1.8KG
Stroke
Up to 5mm
Working pressure:
5~7KG
Capacity M4,M5,M6, (M8 Aluminium)
PACKING CHECK LIST:
! 1 x Carry case
! 1 x W6A
! 1 x M3, M4, M6 Mandrel and nose piece
! 3 x M3, M4, M6 spare mandrels
! 1 x Air inlet lubricating oil
PREPARATION:
1. Adjusting the extended length of the mandrel from the nosepiece. Ensure
that the collar of the nut is facing towards the nosepiece and the mandrel is
protruding 1 or 2 threads through the rivet nut.
2. Before every shift starts, inject 2 or 3 drops of motor lubricant oil into the
air fitting on the tool. Only use air tool lubricant.
3. This tool is designed to operate on clean, dry, regulated compressed air,
between 75-100psi. It is preferable to include an air filter, pressure regulator,
and automatic oiler within 15 feet of the tool.
!
Advertisement
Table of Contents
Related Manuals for Rivtec W-6A
Summary of Contents for Rivtec W-6A
- Page 1 OPERATING MANUAL The W-6A is a professional and highly efficient pneumatic rivet nut tool. The W6A is capable of setting different size rivet nuts by changing the mandrel to correspond with the rivet nut. Control the clamping force by adjusting the stroke accordingly.
- Page 2 ADJUSTING THE STROKE SETTING A RIVET NUT When a smaller size rivet nut is used such as M3 or M4, the stroke must be adjusted to prevent damaging the mandrel and inside thread of rivet nut. 1. Unscrew the mandrel holder locknut. 1.
- Page 3 EXCHANGING A MANDREL Unlock the locknut and nosepiece and remove. Push the cover backwards to release the mandrel. Release the mandrel by turning it counter-clockwise. Push the cover backwards and install the replacement mandrel turning clockwise until it stops. Release the cover in install the matching nose piece.
