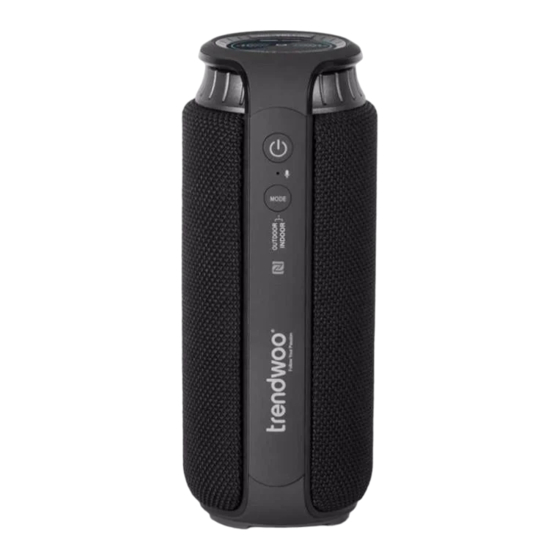

TRENDWOO SoundCup-L User Manual

• Sound track: dual track
• Water Resistant: IPX4
• Signal to noise ratio S / N: ≥80dB
• Frequency Range: 180Hz-20KHz
• Distortion THD: ≤ 1%
• Speaker unit: outer diameter 45mm, inner magnet, 4Ω, 12W x 2
Parameters of power
• Battery: built-in lithium battery, 4000mAh
• Charging Voltage/Current: 5V ± 0.25V / 1A
• Charging time: 4~5 hours
• Playing time: 7~8 hours
Power ON / OFF Press long to power on/off.
Turn clockwise to turn up the Volume and
Volume – or +
counterclockwise to turn the Volume down.
In the Bluetooth mode, slide to the right to get
to the next track and to the left to get to
Next/Previous
the previous track .
When playing music, press short to Pause/
Play/Pause
Play.
05
When a call comes in, press short to pick up
Answering a call
the call and press it again to hang up.
When a call comes in, press twice "quickly" to
Refuse a call
refuse the call.
Press to select the mode to OUTDOOR or
MODE
EQ mode
INDOOR, the icon will be illuminate accordingly.
Note:
1. Under Bluetooth mode when the 3.5mm audio plug is inserted, the
speaker will switch to line in status automatically;
2. Please turn off the speaker if you don't use it to prevent power drain.
WORKING TEMPERATURE STORAGE CONDITION
Temperature: 0º C ~ 40º C Temperature: -30º C ~ 60º C
Humidity: 0% ~ 85% RH Humidity: 0% ~ 90% RH
06
TROUBLE SHOOTINGS
1. My mobile phone can't find any new Bluetooth devices?
a) Make sure the Bluetooth speaker has entered pairing mode;
b) Ensure the speaker is within the effective working range;
2. Bluetooth devices can't pair up
a) Make sure your mobile phone allows new connection, did not reach the
maximum allowed connection number, please ref to your mobile's user
manual;
b) Make sure you click the right Bluetooth pairing name.
3. My mini speaker does not play music / answer call when it connected
to a Bluetooth mobile phone?
a) Make sure your Bluetooth mobile phone supports A2DPand HSF(hands-
free) profile;
b) Ensure your Bluetooth cell phone is within effective working range.
4. When paired with my computer, windows ask for new driver? Can you
supply?
a) We can't supply. The Bluetooth A2DP/HSF drivers may require playing
stereo sound via Bluetooth Connection. But the driver is actually needed for
the Bluetooth module on your PC, instead of the speaker. Different Bluetooth
module may require different drivers. Please contact your PC or Bluetooth
module's manufacturer for driver update.
5. Why can't I remotely control the pause, play, previous song and skip
track functions with the speaker when playing music?
a) When you are using 3.5mm AUX audio in connection, you can't pause,
change volume or skip tracks with the buttons on the speaker;
07
b) This feature needs the Bluetooth devices paired with the speaker to
support AVRCP (Audio/Video Remote Control Profile). Please make sure
your cell phone or other Bluetooth device supports AVRCP.
SAFETY NOTICES
Read the following recommendations before using the Bluetooth
speaker.
a) Keep it dry and don't take it to damp places to avoid the product's
internal circuit being affected.
b) Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the battery
or distort certain plastic parts.
c) Don't expose the product to extremely cold area. It may damage the
internal circuit board.
d) Don't try to disassemble the product as it may get damaged if you are
not professional. The internal circuit might get damaged.
f ) Don't use intensive chemical products or detergent to clean the product.
g) Don't scratch the surface with sharp tips.
08
SoundCup-L
User Manual
IPX4 Portable Bluetooth Speaker
with Replaceable Fabric Covering
