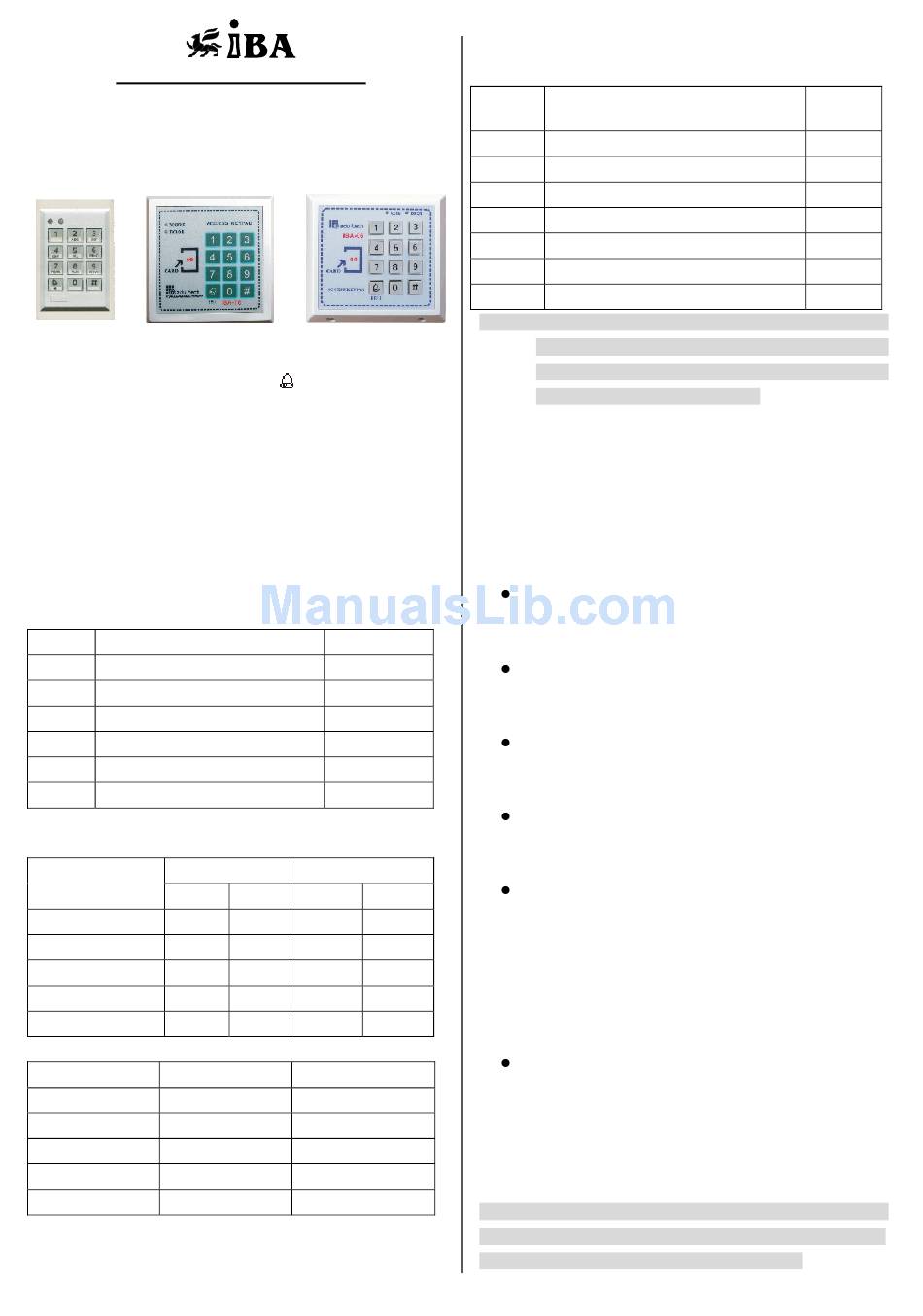

INSTURCTION MANUAL
MODEL: 6 Series
STAND-ALONE
ACCESS CONTROL UNIT
Mode:X6 Model:T6
○
1 "#" Button
The Model 6 Series can support 99 employees with
Proximity Cards or PIN Codes, and it has a back tamper
switch to detect unauthorized attempts at entry.
Dimension:
Model X6:95x58x20mm
Model T6:110x110x20mm
Model 06:120x110x18mm
Technical Specifications
Number Description
1 Rated Operating Voltage
2 Allowed Operating Voltage Range
3 Static Operating Current
4 Max Operating Current
5 Operating Temperature
6 Operating Humidity
LED Display
Mode LED
Occurrence
Green
Normal condition Light
Secure condition
Enter program ode
Release the Lock
Tamper
Sound Display
Occurrence Sound display
Valid Press One short deep
Valid change code Three short deeps
Valid Reader One short deep
Invalid Code One long deep
Invalid Program One long deep
ShenZhen Angetong Technology Co,.Ltd.
Model:06
○
2 " " Bell Button
Specification
DC12V
DC10V-16VDC
90mA
150mA
-20˚ C -55˚C
0-95%
DOOR LED
Red Green Red
Light
Light
Light
Light
Sound Description
deep
deep deep deep
deep
deep...
deep...
Setting Instroductions
1.programming Glossary
Menu
Menu Description
Number
1 Chang Employee Code1
2 Chang Employee Code2
3 Chang Program Code
4 Chang Secure Code
6 Set NO/NC and Release Time
7 Add a Proximity Card or a PIN Code
8 Delete A Proximity Card Or A Pin Code
Notice: Input 0000- disable the function to the items you
set above.You must be under normal mode when
changing the functions. All the changed code can't
be same with the system code.

2. How to enter programming Mode

"#+ Program code " means in Normal mode, press the
key '#' for two seconds until the door LED turns red, then
input Program code to enter the programming state.

3. Function Settings

Change User Password 1
'#' + Program code + key 1+ x x x x (new 4-digits code)
Change User Password 2
'#' + Program code + key 2+ x x x x (new 4-digits code)
Change Programming Code
'#' + Program code + key 3+ x x x x (new 4-digits code)
Change Secure Code
'#' + Program code + key 4+ x x x x (new 4-digits code)
Set No/NC and Door Release Time
(NO= Normal Open NC：Normal Close)
'#' + Program code + key 6+ x x x x
The first two digits ndicates NO(10)/NC(00)
The last two digits indicates door release time (second)
i.e. 12 indicates 12secs
Add a new proximity card or a PIN code
'#' + Program code + key 7+ x x x + show the card to
card reading area.
x x x= card number from 01 to 99
Or
'#' + Program code + key 7 + x x x x (4-digits PIN code)
Notice: If you want to add more cards, please repeat the
later 2 steps, remember that card number should not be
repeated or the repeated card will be invalid.
TEL:+86-0755-83775562
Original
Settings
2580
0000*
1234
3838
10secs
